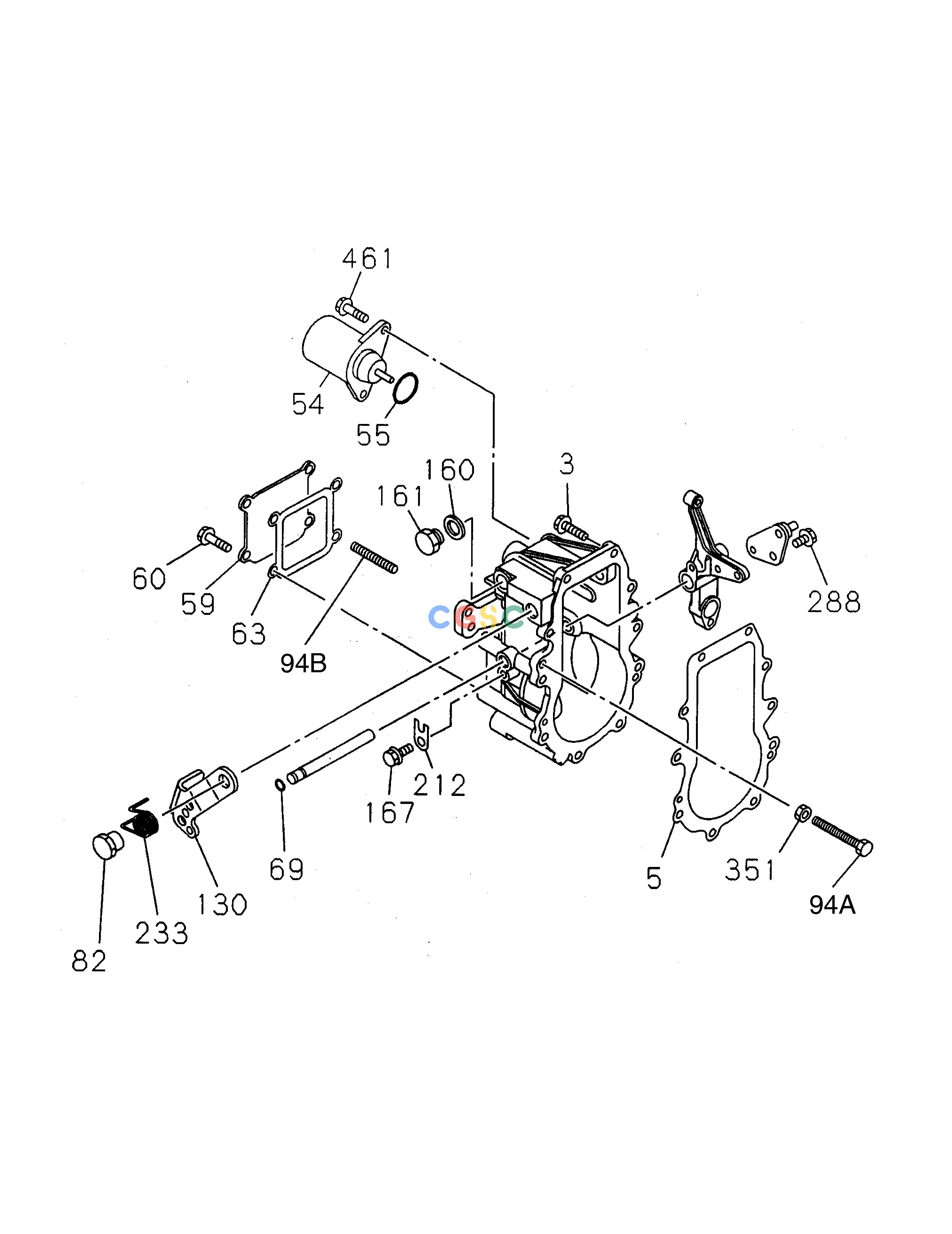

斗山零件查询GOVERNOR SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
156 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 130. |
586400-5120
|
[1] |
LEVER
|
|
| 160. |
586400-5490
|
[1] |
GASKET
|
|
| 161. |
586400-5600
|
[1] |
PLUG
|
|
| 167. |
586400-5690
|
[1] |
BOLT
|
|
| 212. |
586400-4370
|
[1] |
PLATE
|
|
| 233. |
586400-4440
|
[1] |
SPRING
|
|
| 288. |
586400-5690
|
[1] |
BOLT
|
|
| 3. |
586400-5710
|
[4] |
BOLT
|
|
| 351. |
586400-5800
|
[1] |
NUT
|
|
| 461. |
586400-5700
|
[2] |
BOLT
|
|
| 5. |
586400-5260
|
[1] |
GASKET
|
|
| 54. |
586401-4400
|
[1] |
VALVE;E/G STOP
|
|
| 55. |
586400-5640
|
[1] |
GASKET
|
|
| 59. |
586401-0620
|
[1] |
COVER
|
|
| 60. |
586400-5700
|
[4] |
BOLT
|
|
| 63. |
586400-5270
|
[1] |
GASKET
|
|
| 69. |
586400-4500
|
[1] |
GASKET
|
|
| 82. |
586400-4750
|
[1] |
NUT
|
|
| 94A. |
586400-4510
|
[1] |
SCREW
|
|
| 94B. |
586400-5460
|
[1] |
SCREW
|
|
