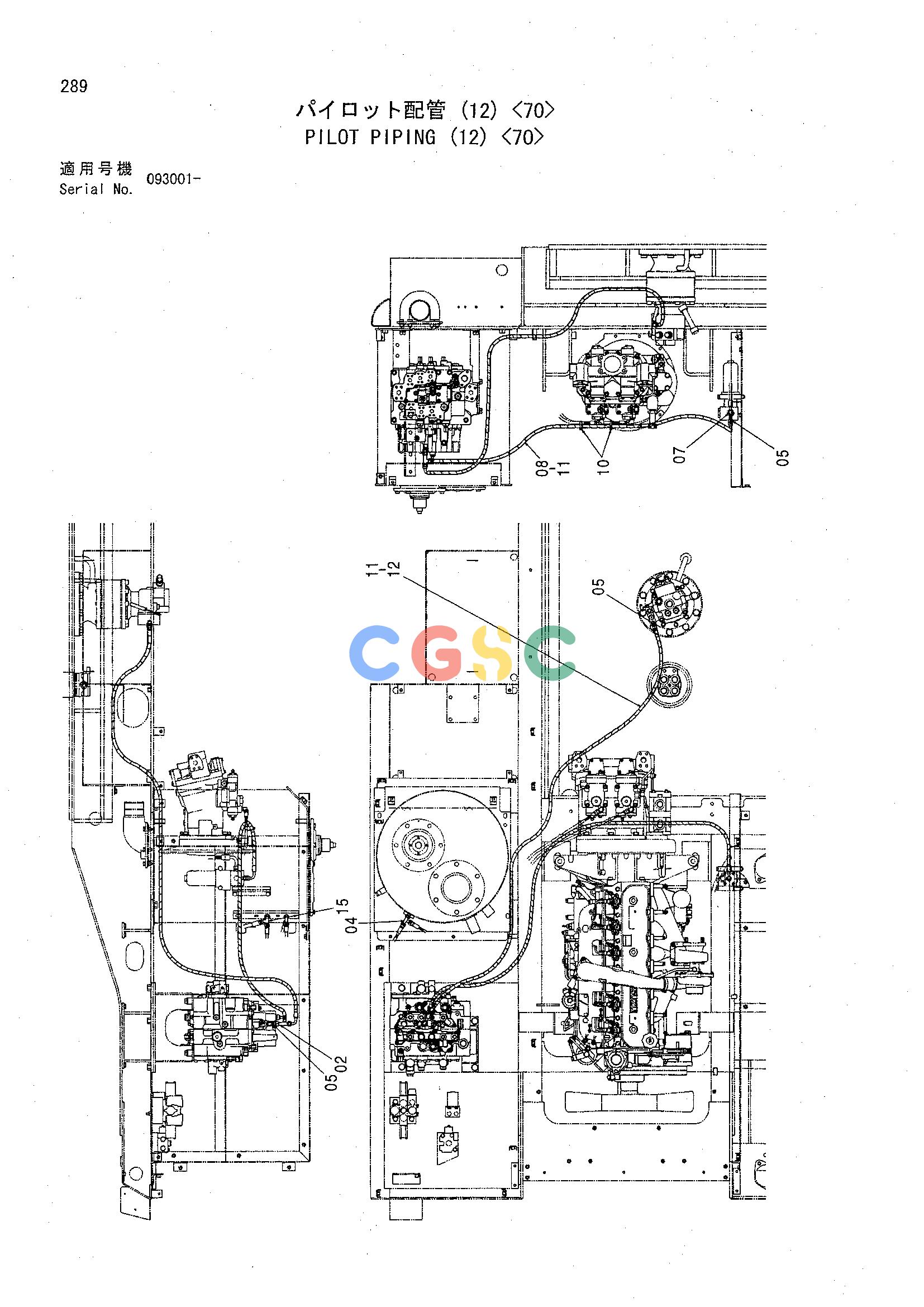

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 02. | 4252786 | [1] | TEE;S | |
| 04. | 4203171 | [1] | TEE;S | |
| 04A. | 957366 | [1] | O-RING | |
| 05. | 4200465 | [3] | ADAPTER;S | |
| 05A. | 957366 | [1] | O-RING | |
| 07. | 4200469 | [1] | ADAPTER;S | |
| 07A. | 4506418 | [1] | O-RING | |
| 08. | 4334912 | [1] | HOSE | |
| 10. | 4055312 | [2] | CLIP;BAND | |
| 11. | 4133527 | [10] | PROTECTOR | |
| 12. | 4449711 | [1] | HOSE (D9) | |
| 15. | 4239713 | [1] | TEE;S | |
| 15A. | 4509180 | [1] | O-RING |
