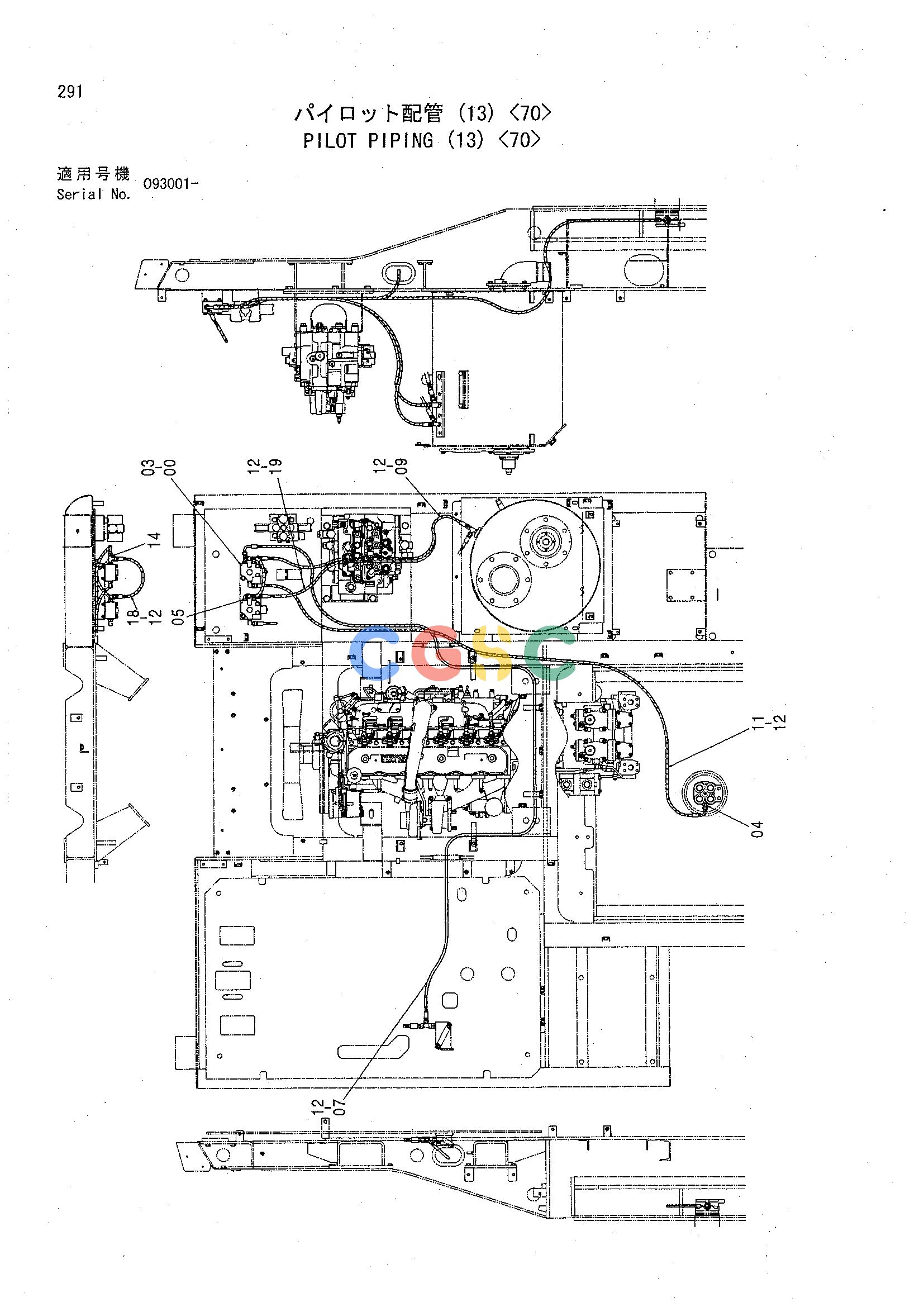

日立零件查询（CHR70）PILOT PIPING (13) <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
201 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4210647 | [2] | VALVE;SOLENOID | |
| 03. | J020870 | [4] | BOLT;SEMS | |
| 03. | J260870 | [4] | BOLT;SEMS | TJ900870 |
| 03. | J260870 | [4] | BOLT;SEMS | TA590108 |
| 04. | 4200465 | [2] | ADAPTER;S | |
| 04A. | 957366 | [1] | O-RING | |
| 05. | 4154670 | [4] | ELBOW;S | |
| 05A. | 957366 | [1] | O-RING | |
| 07. | 4375322 | [1] | HOSE | |
| 09. | 4402081 | [1] | HOSE | |
| 11. | 4402075 | [1] | HOSE | |
| 12. | 4133527 | [12] | PROTECTOR | |
| 14. | 4219346 | [1] | TEE;S | |
| 14A. | 957366 | [1] | O-RING | |
| 18. | 4396311 | [1] | HOSE (PS) | |
| 19. | 4392191 | [1] | HOSE (T6) | |
