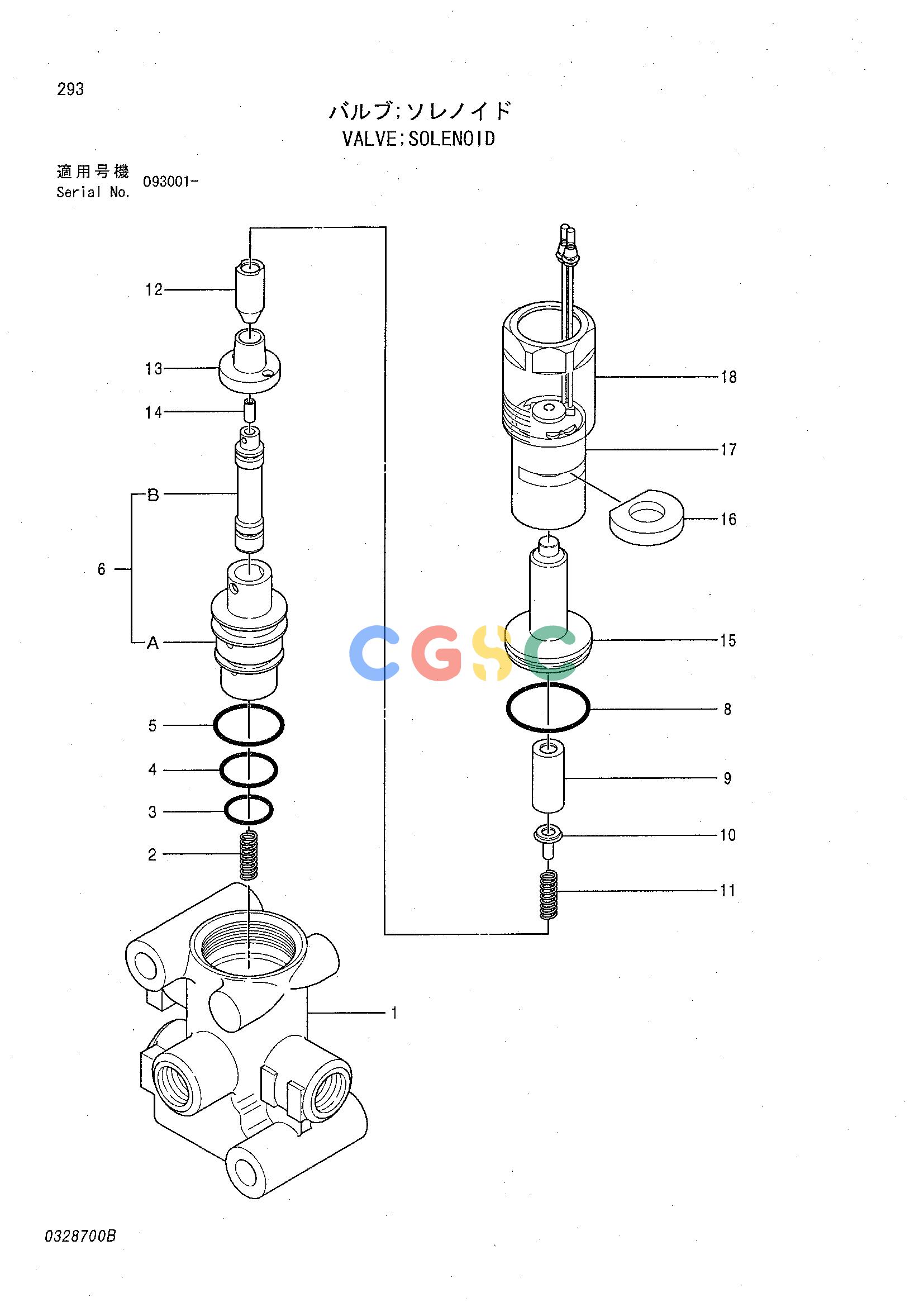

日立零件查询（CHR70）VALVE;SOLENOID Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
476 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4210647 | [1] | VALVE;SOLENOID | 0328700B
|
| 1. | 0328701 | [1] | HOUSING | |
| 2. | 0308711 | [1] | SPRING | |
| 3. | 4509180 | [1] | O-RING | |
| 4. | 985099 | [1] | O-RING | |
| 5. | 4028265 | [1] | O-RING | |
| 6. | 0308712 | [1] | SPOOL ASS'Y | |
| 6A. | +++++++ | [1] | BODY | |
| 6B. | +++++++ | [1] | SPOOL | |
| 8. | 0308713 | [1] | O-RING | |
| 9. | 0308714 | [1] | PIPE | |
| 10. | 0308715 | [1] | SEAT | |
| 11. | 0308716 | [1] | SPRING | |
| 12. | 0308717 | [1] | PLUNGER | |
| 13. | 0308718 | [1] | STOPPER | |
| 14. | 0308719 | [1] | ROD | |
| 15. | 0308720 | [1] | HOUSING | |
| 16. | 0308721 | [1] | SPACER | |
| 17. | 0308722 | [1] | COIL | |
| 18. | 0308724 | [1] | SCREW | |
