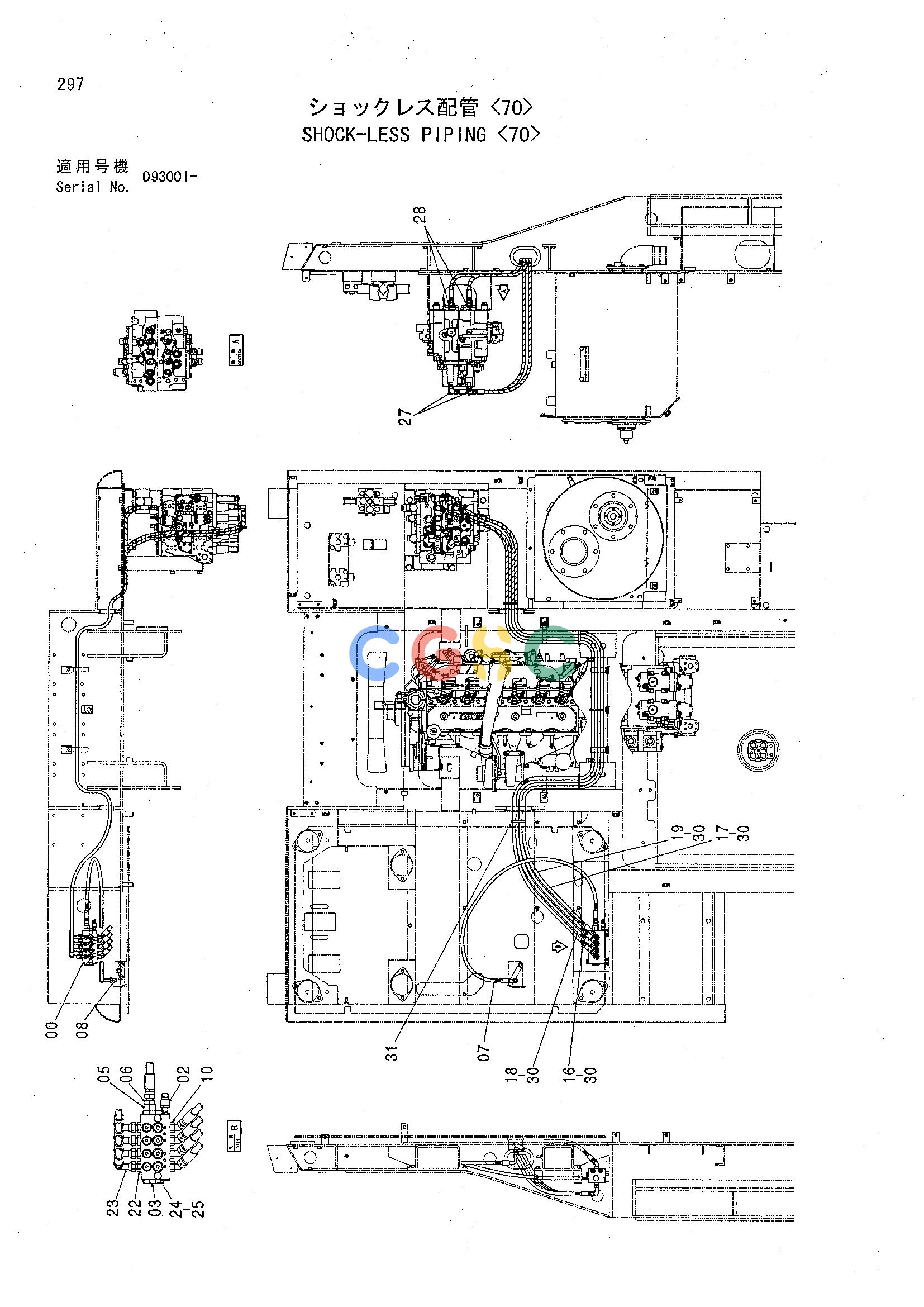

日立零件查询（CHR70）SHOCK-LESS PIPING <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
618 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4325812 | [1] | VALVE;FC | |
| 02. | 4254563 | [1] | SWITCH;PRES. | |
| 02A. | 4113154 | [1] | O-RING | |
| 03. | 4174541 | [1] | PLUG | |
| 03A. | 4506418 | [1] | O-RING | |
| 05. | 4263452 | [1] | REDUCER;S | |
| 05A. | 4506418 | [1] | O-RING | |
| 06. | 4239185 | [1] | THROTTLE | |
| 07. | 4366788 | [1] | HOSE | |
| 08. | 4346499 | [1] | FILTER | |
| 08A. | 957366 | [1] | O-RING | |
| 10. | 4190244 | [4] | ELBOW;S | |
| 10A. | 4509180 | [1] | O-RING | |
| 16. | 4375306 | [1] | HOSE | |
| 17. | 4375306 | [1] | HOSE | |
| 18. | 4319149 | [1] | HOSE | |
| 19. | 4375360 | [1] | HOSE | |
| 22. | 4200466 | [4] | ADAPTER;S | |
| 22A. | 4509180 | [1] | O-RING | |
| 23. | 4239976 | [4] | UNION;S | |
| 24. | J921001 | [2] | BOLT | |
| 25. | A590910 | [2] | WASHER;SPRING | |
| 27. | 4208913 | [2] | ELBOW;S | |
| 27A. | 4509180 | [1] | O-RING | |
| 28. | 4200466 | [2] | ADAPTER;S | |
| 28A. | 4509180 | [1] | O-RING | |
| 30. | 4133527 | [8] | PROTECTOR | |
| 31. | 4121859 | [5] | CLIP;BAND | |
