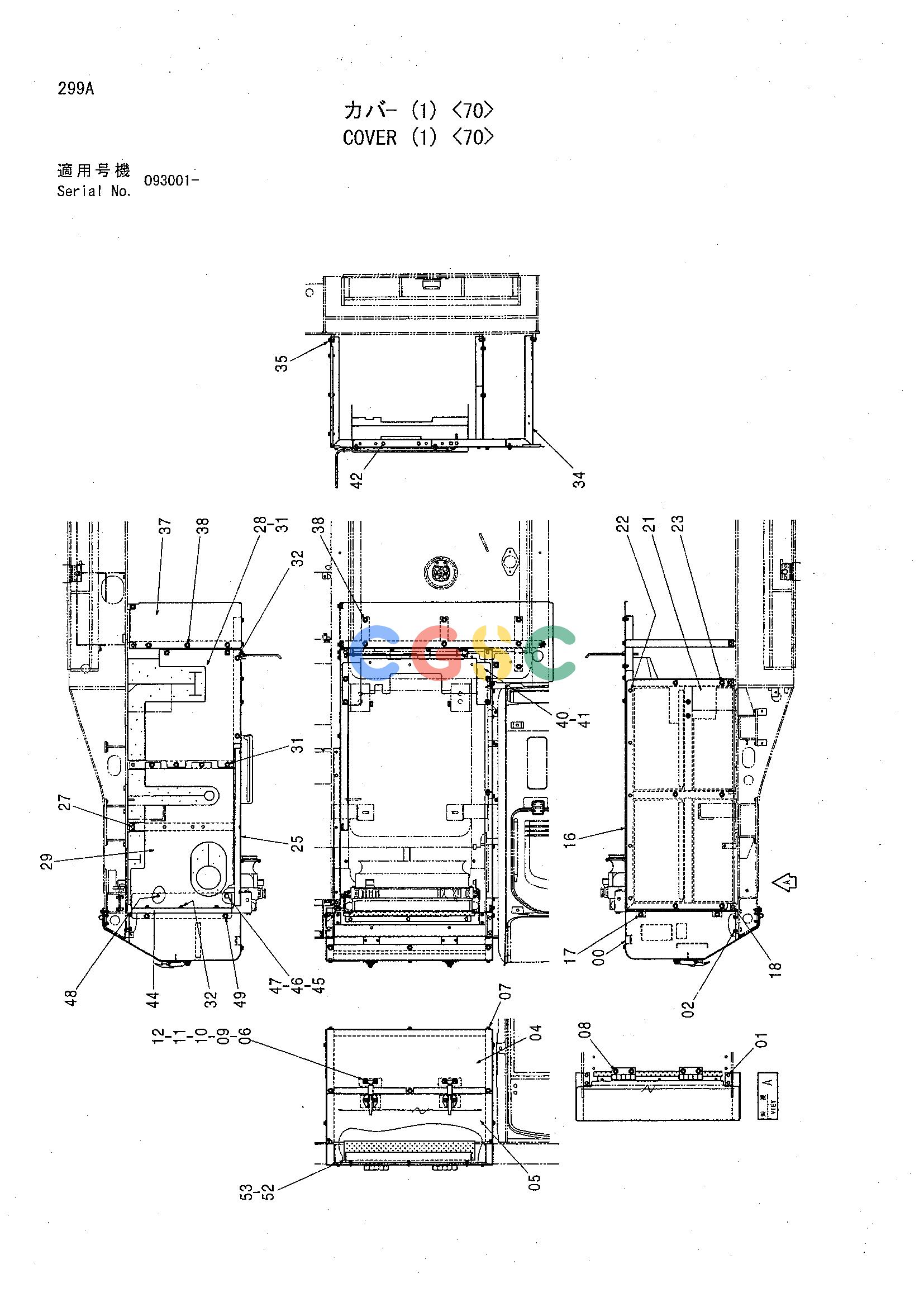

日立零件查询（CHR70）COVER (1) <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
616 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 7038500 | [1] | SUPPORT | |
| 01. | J021030 | [4] | BOLT;SEMS | |
| 01. | J271030 | [4] | BOLT;SEMS | TJ901030 |
| 01. | J271030 | [4] | BOLT;SEMS | TJ222010 |
| 02. | J021020 | [4] | BOLT;SEMS | |
| 02. | J271020 | [4] | BOLT;SEMS | TJ901020 |
| 02. | J271020 | [4] | BOLT;SEMS | TJ222010 |
| 04. | 7035805 | [1] | COVER | |
| 05. | 7035806 | [1] | COVER | |
| 06. | 4377569 | [2] | CATCH | |
| 06A. | 3077613 | [1] | CATCH | |
| 06B. | 3077611 | [1] | ANCHOR | |
| 07. | J031030 | [6] | BOLT;SEMS | |
| 07. | J281030 | [6] | BOLT;SEMS | TJ901030 |
| 07. | J281030 | [6] | BOLT;SEMS | T4486055 |
| 08. | J031045 | [4] | BOLT;SEMS | |
| 08. | J281045 | [4] | BOLT;SEMS | TJ901045 |
| 08. | J281045 | [4] | BOLT;SEMS | T4486055 |
| 09. | J010820 | [4] | BOLT;SEMS | |
| 09. | J260820 | [4] | BOLT;SEMS | TJ900820 |
| 09. | J260820 | [4] | BOLT;SEMS | TA590108 |
| 10. | M430825 | [4] | SCREW | |
| 11. | A590908 | [4] | WASHER;SPRING | |
| 12. | A590108 | [4] | WASHER;PLANE | |
| 16. | 8074744 | [1] | SUPPORT | |
| 17. | J031030 | [2] | BOLT;SEMS | |
| 17. | J281030 | [2] | BOLT;SEMS | TJ901030 |
| 17. | J281030 | [2] | BOLT;SEMS | T4486055 |
| 18. | J021035 | [3] | BOLT;SEMS | |
| 18. | J271035 | [3] | BOLT;SEMS | TJ901035 |
| 18. | J271035 | [3] | BOLT;SEMS | TJ222010 |
| 21. | 8074749 | [1] | COVER | |
| 22. | J021025 | [5] | BOLT;SEMS | |
| 22. | J271025 | [5] | BOLT;SEMS | TJ901025 |
| 22. | J271025 | [5] | BOLT;SEMS | TJ222010 |
| 23. | J031025 | [6] | BOLT;SEMS | |
| 23. | J281025 | [6] | BOLT;SEMS | TJ901025 |
| 23. | J281025 | [6] | BOLT;SEMS | T4486055 |
| 25. | 8075846 | [1] | SUPPORT | |
| 27. | J021030 | [2] | BOLT;SEMS | |
| 27. | J271030 | [2] | BOLT;SEMS | TJ901030 |
| 27. | J271030 | [2] | BOLT;SEMS | TJ222010 |
| 28. | 8075844 | [1] | COVER | |
| 29. | 8075845 | [1] | COVER | |
| 31. | J031035 | [6] | BOLT;SEMS | |
| 31. | J281035 | [6] | BOLT;SEMS | TJ901035 |
| 31. | J281035 | [6] | BOLT;SEMS | T4486055 |
| 32. | J031030 | [5] | BOLT;SEMS | |
| 32. | J281030 | [5] | BOLT;SEMS | TJ901030 |
| 32. | J281030 | [5] | BOLT;SEMS | T4486055 |
| 34. | 9176587 | [1] | SUPPORT | |
| 35. | J021035 | [4] | BOLT;SEMS | |
| 35. | J271035 | [4] | BOLT;SEMS | TJ901035 |
| 35. | J271035 | [4] | BOLT;SEMS | TJ222010 |
| 37. | 3084497 | [1] | COVER | |
| 38. | J031030 | [12] | BOLT;SEMS | |
| 38. | J281030 | [12] | BOLT;SEMS | TJ901030 |
| 38. | J281030 | [12] | BOLT;SEMS | T4486055 |
| 40. | 7034641 | [1] | COVER | |
| 41. | J031025 | [4] | BOLT;SEMS | |
| 41. | J281025 | [4] | BOLT;SEMS | TJ901025 |
| 41. | J281025 | [4] | BOLT;SEMS | T4486055 |
| 42. | J021030 | [2] | BOLT;SEMS | |
| 42. | J271030 | [2] | BOLT;SEMS | TJ901030 |
| 42. | J271030 | [2] | BOLT;SEMS | TJ222010 |
| 44. | 8074748 | [1] | COVER | |
| 45. | J901630 | [1] | BOLT | |
| 46. | A590916 | [1] | WASHER;SPRING | |
| 47. | A590116 | [1] | WASHER;PLANE | |
| 48. | J020820 | [1] | BOLT;SEMS | |
| 48. | J260820 | [1] | BOLT;SEMS | TJ900820 |
| 48. | J260820 | [1] | BOLT;SEMS | TA590108 |
| 49. | J031030 | [2] | BOLT;SEMS | |
| 49. | J281030 | [2] | BOLT;SEMS | TJ901030 |
| 49. | J281030 | [2] | BOLT;SEMS | T4486055 |
| 52. | 8072296 | [1] | COVER | |
| 53. | J021030 | [3] | BOLT;SEMS | |
| 53. | J271030 | [3] | BOLT;SEMS | TJ901030 |
| 53. | J271030 | [3] | BOLT;SEMS | TJ222010 |
