纽荷兰零件查询(FD14E) - CRAWLER DOZER (92.3445[001]) - TRACK FRAME New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
314 次

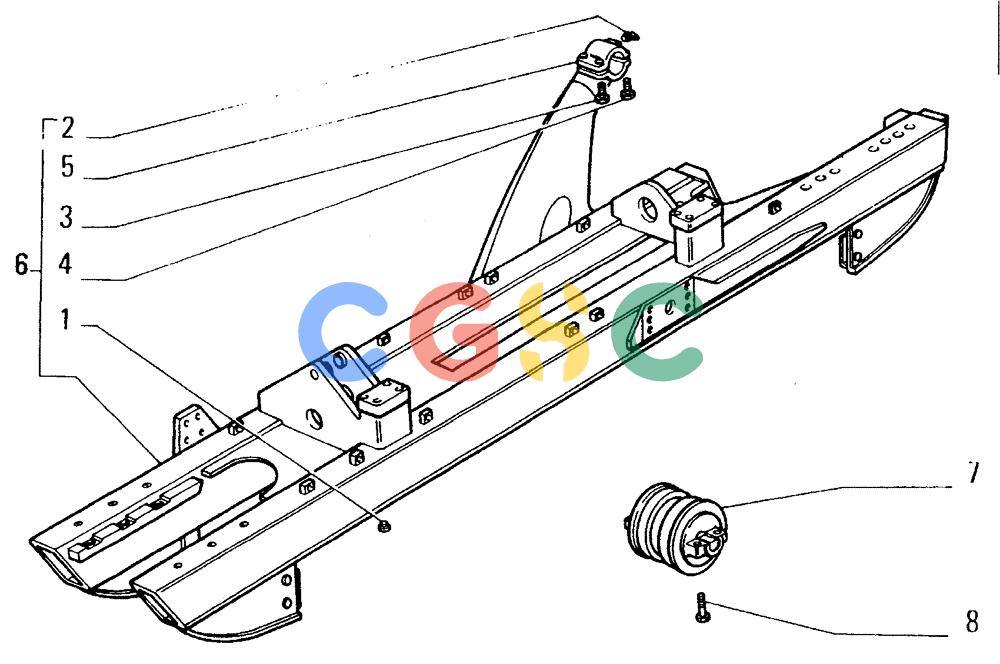

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 590353 | [13] | PLUG,15mm OD x 10mm High, Plastic | TTF |
| 2. | 13407811 | [1] | LUBE NIPPLE,Angled - 45°, M10 x 1 x 27.00mm | TTFGREASE FITTING 10x1x45 |
| 3. | 15981334 | [2] | BOLT,Hex, M16 x 1.5 x 75mm, Cl 10.9 | JESSCREW |
| 4. | 15981834 | [2] | BOLT,Hex, M16 x 1.5 x 120mm, Cl 10.9 | IMO |
| 5. | 79008162 | [1] | SUPPORT | LECCAP |
| 6. | 79088977 | [1] | BODY | LECTRACK FRAME - ASSEMBLY LEFT |
| 6. | 79088978 | [1] | BODY | LECTRACK FRAME - ASSEMBLY RIGHT |
| 7. | 76013223 | [2] | TRACK ROLLER | LECWHEEL - ASSEMBLY SEE Superseded by part number: 76029451 |
| 8. | 15981337 | [8] | BOLT,Hex, M16 x 1.5 x 75mm, Cl 10.9 | MODSCREW 16x1,5x75 Superseded by part number: 15981334 |
