纽荷兰零件查询(FD14E) - CRAWLER DOZER (92.3470[001]) - SALT TRACK CHAIN New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
171 次

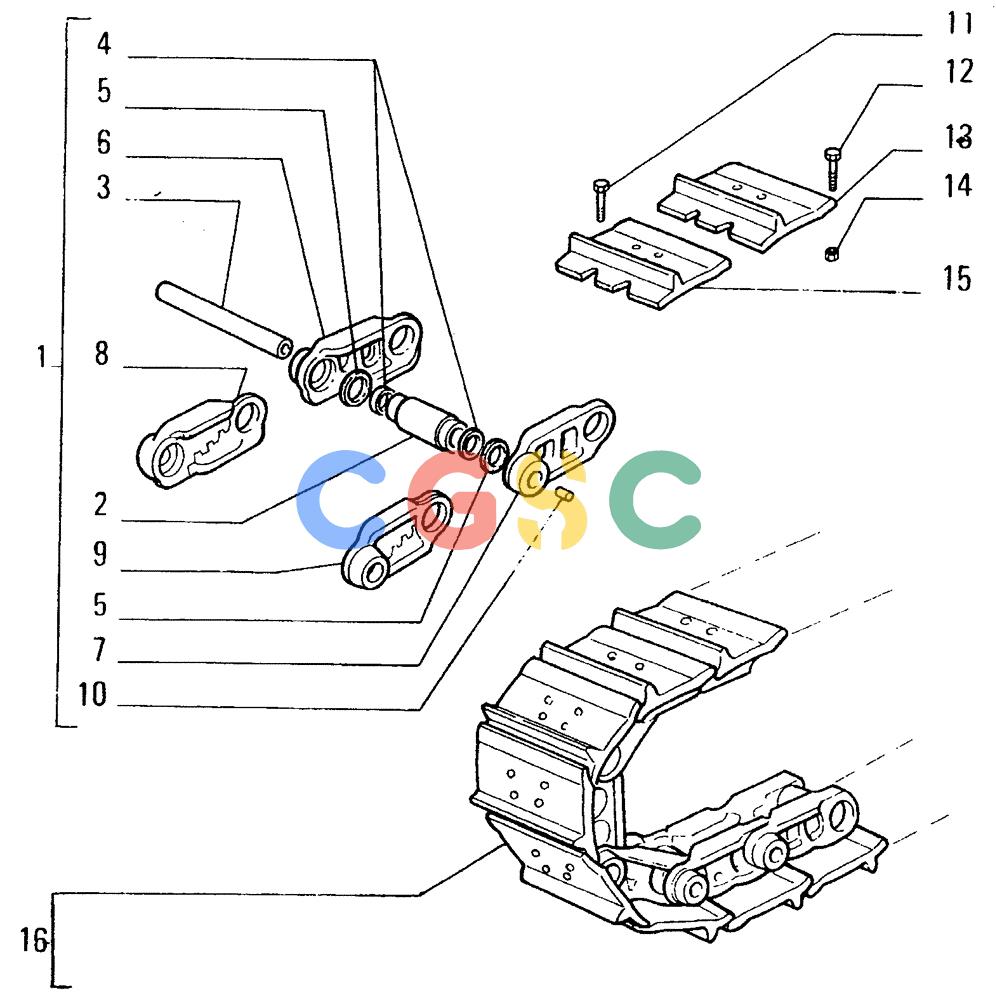

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79079933 | [2] | TRACK ASSY | LECSALT TRACK CHAIN - ASSEMBLY |
| 2. | 79035821 | [41] | BUSHING | LEC |
| 3. | 79035819 | [41] | PIN,40.08mm OD x 220mm L | LEC |
| 4. | 79035823 | [82] | SPACER | LEC |
| 5. | 79082234 | [82] | SEAL,45.5mm ID x 64.6mm OD x 13mm Thk | LECSEAL |
| 6. | 79082230 | [40] | TRACK LINK | LEC- RIGHT |
| 7. | 79082231 | [40] | TRACK LINK | LEC- LEFT |
| 8. | 79082232 | [1] | CONNECTING LINK | LECTRACK LINK - RIGHT |
| 9. | 79082233 | [1] | CONNECTING LINK | LECTRACK LINK - LEFT |
| 10. | 79082221 | [41] | PLUG | LEC |
| 11. | 79035815 | [4] | BOLT,Flng, M20 x 1.5 x 101mm, Cl 12.9 | LEC |
| 12. | 79035814 | [160] | SCREW | LEC Superseded by part number: 71401179 |
| 13. | 79035817 | [40] | TRACK SHOE | LECSHOES (1 GROUSER) Superseded by part number: 79109499 |
| 14. | 79035816 | [160] | NUT | LEC Superseded by part number: 76030024 |
| 15. | 79035818 | [1] | TRACK SHOE | LECSHOES (1 GROUSER) Superseded by part number: 79109500 |
| 16. | 79096795 | [2] | TRACK ASSY | LECSALT TRACK CHAIN - ASSEMBLY Superseded by part number: 79109575 |
