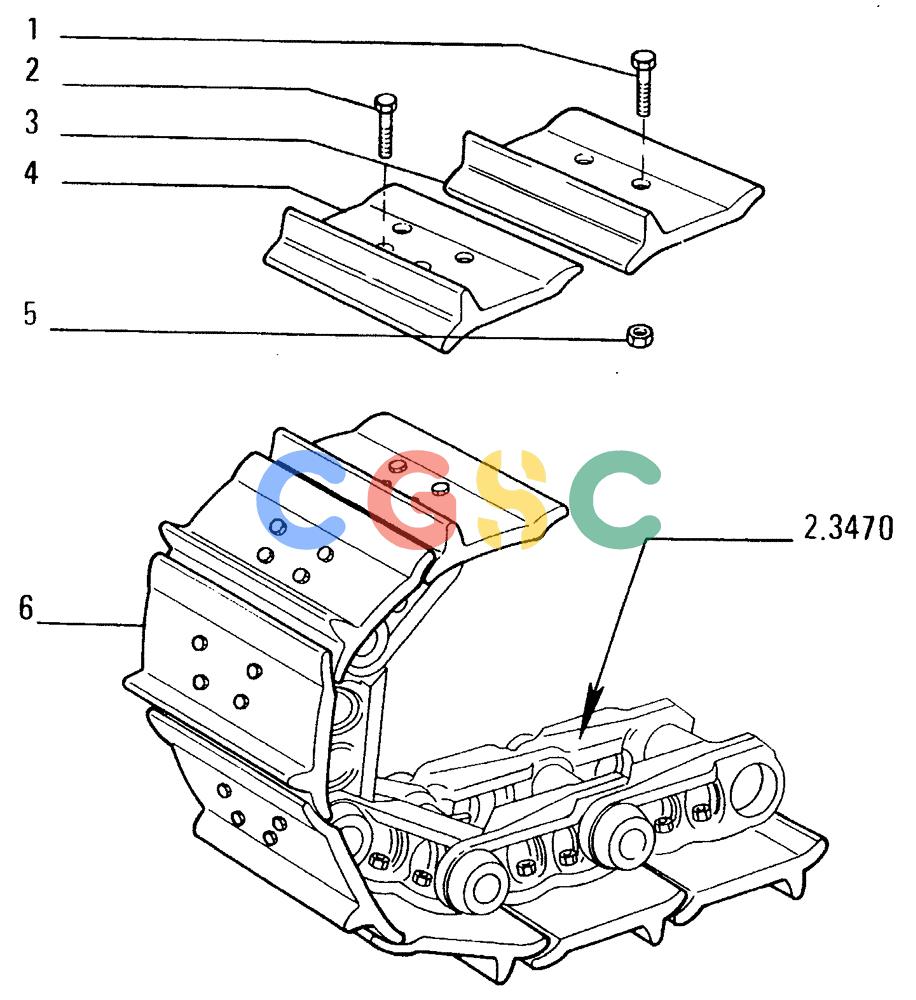

纽荷兰零件查询(FD14E) - CRAWLER DOZER (92.3481[001]) - TRACK CHAIN-SHOES New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
514 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79035814 | [160] | SCREW | LEC Superseded by part number: 71401179 |
| 2. | 79035815 | [4] | BOLT,Flng, M20 x 1.5 x 101mm, Cl 12.9 | LEC |
| 3. | 79035825 | [80] | TRACK SHOE | LECSHOE |
| 4. | 79035826 | [2] | TRACK SHOE | LECSHOE Superseded by part number: 79109504 |
| 5. | 79035816 | [160] | NUT | LEC Superseded by part number: 76030024 |
| 6. | 79072645 | [2] | TRACK ASSY | LECTRACK CHAIN - ASSEMBLY Superseded by part number: 79035826, 79035825, 79035917, 79035814, 79035815 |
