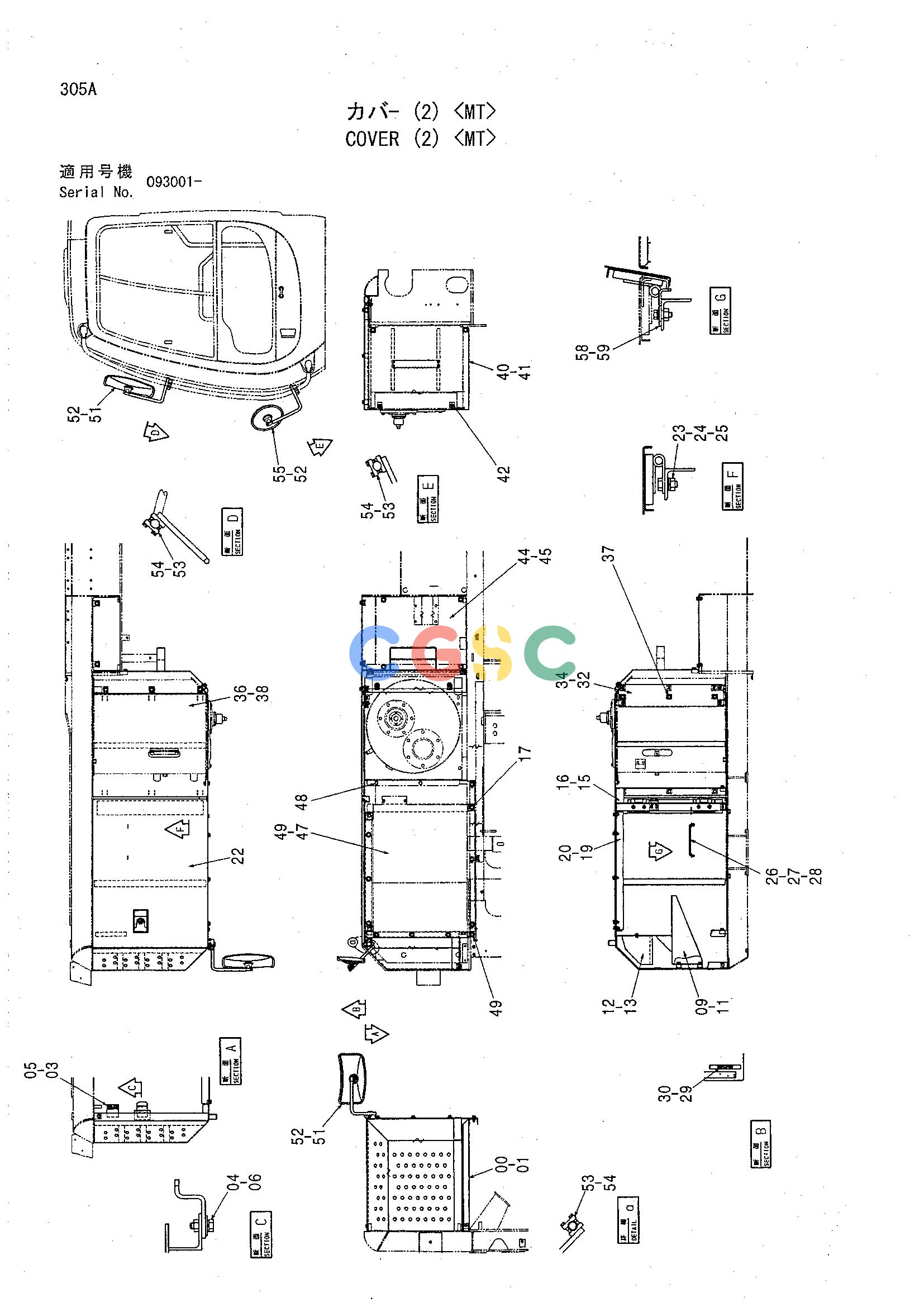

日立零件查询（CHR70）COVER (2) <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
684 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 6019184 | [1] | COVER | |
| 01. | J021035 | [3] | BOLT;SEMS | |
| 01. | J271035 | [3] | BOLT;SEMS | TJ901035 |
| 01. | J271035 | [3] | BOLT;SEMS | TJ222010 |
| 03. | 4175253 | [1] | BRACKET | |
| 04. | 4257087 | [1] | STOPPER | |
| 05. | J020614 | [2] | BOLT;SEMS | |
| 05. | J260614 | [2] | BOLT;SEMS | TJ900614 |
| 05. | J260614 | [2] | BOLT;SEMS | TA590106 |
| 06. | J031030 | [2] | BOLT;SEMS | |
| 06. | J281030 | [2] | BOLT;SEMS | TJ901030 |
| 06. | J281030 | [2] | BOLT;SEMS | T4486055 |
| 09. | 7035799 | [1] | BRACKET | |
| 11. | J021020 | [4] | BOLT;SEMS | |
| 11. | J271020 | [4] | BOLT;SEMS | TJ901020 |
| 11. | J271020 | [4] | BOLT;SEMS | TJ222010 |
| 12. | J020816 | [2] | BOLT;SEMS | |
| 12. | J260816 | [2] | BOLT;SEMS | TJ900816 |
| 12. | J260816 | [2] | BOLT;SEMS | TA590108 |
| 13. | 7038579 | [1] | COVER | |
| 14. | 7043881 | [1] | SUPPORT | |
| 16. | J021035 | [2] | BOLT;SEMS | |
| 16. | J271035 | [2] | BOLT;SEMS | TJ901035 |
| 16. | J271035 | [2] | BOLT;SEMS | TJ222010 |
| 17. | J031030 | [1] | BOLT;SEMS | |
| 17. | J281030 | [1] | BOLT;SEMS | TJ901030 |
| 17. | J281030 | [1] | BOLT;SEMS | T4486055 |
| 19. | 8074747 | [1] | SUPPORT | |
| 20. | J021030 | [2] | BOLT;SEMS | |
| 20. | J271030 | [2] | BOLT;SEMS | TJ901030 |
| 20. | J271030 | [2] | BOLT;SEMS | TJ222010 |
| 22. | 6019216 | [1] | DOOR | |
| 22A. | 4379481 | [1] | LOCK | |
| 22B. | 4379504 | [1] | CYL.;LOCK | |
| 23. | A590910 | [4] | WASHER;SPRING | |
| 24. | A590110 | [4] | WASHER;PLANE | |
| 25. | J950010 | [4] | NUT | |
| 26. | 4341788 | [1] | STAY | |
| 27. | A590108 | [1] | WASHER;PLANE | |
| 28. | 4022697 | [1] | PIN;LOCK | |
| 29. | 4175254 | [1] | STOPPER | |
| 30. | J020614 | [2] | BOLT;SEMS | |
| 30. | J260614 | [2] | BOLT;SEMS | TJ900614 |
| 30. | J260614 | [2] | BOLT;SEMS | TA590106 |
| 32. | 8088091 | [1] | SUPPORT | |
| 34. | J281035 | [3] | BOLT;SEMS | |
| 36. | 7035804 | [1] | COVER | |
| 37. | J031025 | [3] | BOLT;SEMS | |
| 37. | J281025 | [3] | BOLT;SEMS | TJ901025 |
| 37. | J281025 | [3] | BOLT;SEMS | T4486055 |
| 38. | J021025 | [3] | BOLT;SEMS | |
| 38. | J271025 | [3] | BOLT;SEMS | TJ901025 |
| 38. | J271025 | [3] | BOLT;SEMS | TJ222010 |
| 40. | 7038502 | [1] | COVER | |
| 41. | J031035 | [2] | BOLT;SEMS | |
| 41. | J281035 | [2] | BOLT;SEMS | TJ901035 |
| 41. | J281035 | [2] | BOLT;SEMS | T4486055 |
| 42. | J031025 | [5] | BOLT;SEMS | |
| 42. | J281025 | [5] | BOLT;SEMS | TJ901025 |
| 42. | J281025 | [5] | BOLT;SEMS | T4486055 |
| 44. | 8080189 | [1] | COVER | |
| 45. | J031030 | [6] | BOLT;SEMS | |
| 45. | J281030 | [6] | BOLT;SEMS | TJ901030 |
| 45. | J281030 | [6] | BOLT;SEMS | T4486055 |
| 47. | 7035802 | [1] | COVER | |
| 48. | J021040 | [2] | BOLT;SEMS | |
| 48. | J271040 | [2] | BOLT;SEMS | TJ901040 |
| 48. | J271040 | [2] | BOLT;SEMS | TJ222010 |
| 49. | J031030 | [10] | BOLT;SEMS | |
| 49. | J281030 | [10] | BOLT;SEMS | TJ901030 |
| 49. | J281030 | [10] | BOLT;SEMS | T4486055 |
| 51. | 4165676 | [2] | MIRROR | |
| 52. | 8061721 | [3] | STAY | |
| 53. | 4373196 | [3] | CLAMP | |
| 54. | J010845 | [6] | BOLT;SEMS | |
| 54. | J260845 | [6] | BOLT;SEMS | TJ900845 |
| 54. | J260845 | [6] | BOLT;SEMS | TA590108 |
| 55. | 4208674 | [1] | MIRROR | |
| 58. | 4485133 | [1] | STOPPER | |
| 59. | J020825 | [2] | BOLT;SEMS | |
| 59. | J260825 | [2] | BOLT;SEMS | TJ900825 |
| 59. | J260825 | [2] | BOLT;SEMS | TA590108 |
