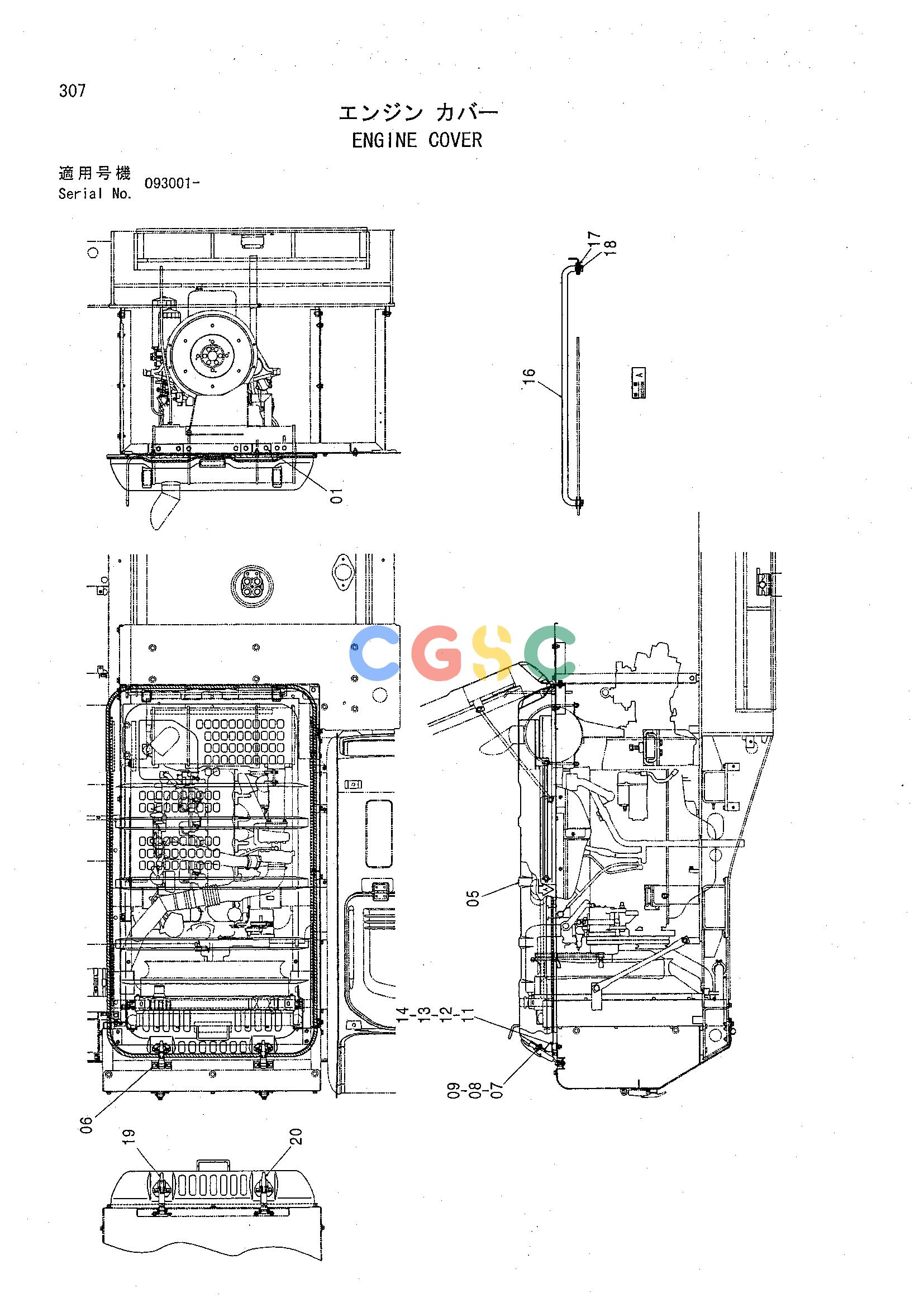

日立零件查询（CHR70）ENGINE COVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
782 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | J021030 | [4] | BOLT;SEMS | |
| 01. | J271030 | [4] | BOLT;SEMS | TJ901030 |
| 01. | J271030 | [4] | BOLT;SEMS | TJ222010 |
| 05. | 9191310 | [1] | ENGINE COVER ASS'Y | |
| 05A. | 4333693 | [1] | TRIM;SEAL | |
| 05B. | 4380800 | [1] | RUBBER | |
| 06. | J010820 | [4] | BOLT;SEMS | |
| 06. | J260820 | [4] | BOLT;SEMS | TJ900820 |
| 06. | J260820 | [4] | BOLT;SEMS | TA590108 |
| 07. | M430825 | [4] | SCREW | |
| 08. | A590908 | [4] | WASHER;SPRING | |
| 09. | A590108 | [4] | WASHER;PLANE | |
| 11. | 4294508 | [2] | STOPPER | |
| 12. | A590110 | [2] | WASHER;PLANE | |
| 13. | A590910 | [2] | WASHER;SPRING | |
| 14. | J950010 | [2] | NUT | |
| 16. | 4263655 | [1] | STAY | |
| 17. | A590114 | [4] | WASHER;PLANE | |
| 18. | 4022700 | [4] | PIN;LOCK | |
| 19. | 4377519 | [1] | CATCH | |
| 19A. | 3077612 | [1] | CATCH | |
| 19B. | 3077611 | [1] | ANCHOR | |
| 20. | 4377569 | [1] | CATCH | |
| 20A. | 3077613 | [1] | CATCH | |
| 20B. | 3077611 | [1] | ANCHOR | |
