纽荷兰零件查询(FD14E) - CRAWLER DOZER (92.3530[002]) - TRACK ROLLER GUARD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
490 次

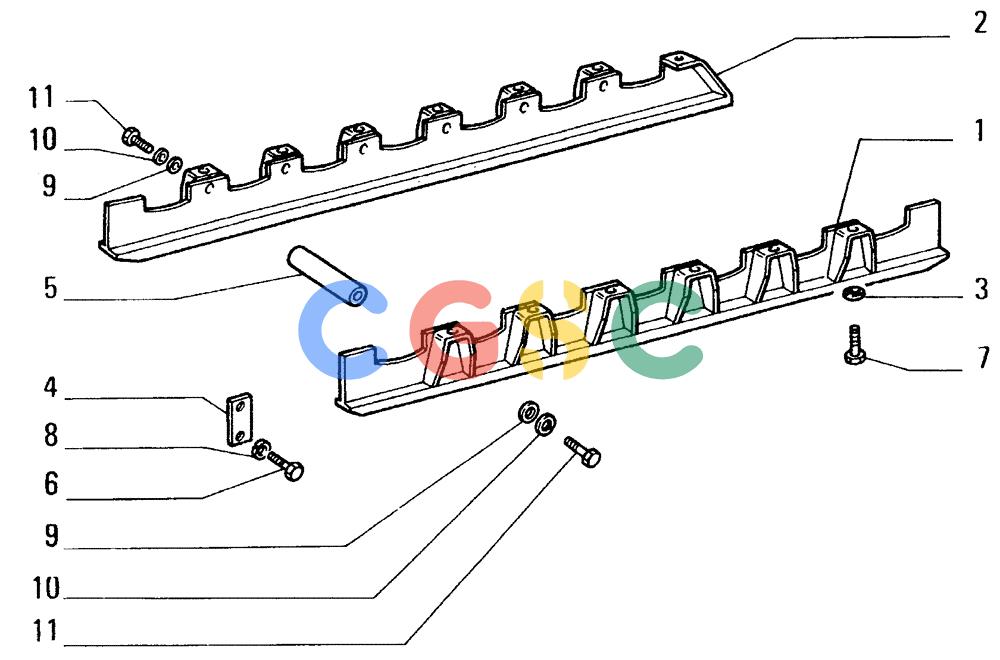

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76002926 | [2] | GUARD | LEC- OUTER |
| 2. | 76002927 | [1] | GUARD | LEC- INNER RIGHT |
| 2. | 76002928 | [1] | GUARD | LEC- INNER LEFT |
| 3. | 79005240 | [26] | WASHER,16.8mm ID x 36mm OD x 8mm Thk | LEC |
| 4. | 76006423 | [6] | PLATE | LEC |
| 5. | 76004368 | [12] | SPACER | LECSTUD |
| 6. | 11390537 | [12] | BOLT,Hex, M16 x 1.5 x 40, 10.9, Full Thd | LEC Superseded by part number: 11390534 |
| 7. | 15840537 | [26] | BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd | LEC Superseded by part number: 15840534 |
| 8. | 10517271 | [12] | LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk | BHBLOCKWASHER 16,2x4 Superseded by part number: 10572173 |
| 9. | 10520427 | [24] | WASHER | LEC20,4x35 Superseded by part number: 10520420 |
| 10. | 10572371 | [24] | LOCK WASHER,M20 | TTFWASHER, LOCK, M20 Superseded by part number: |
| 11. | 11408637 | [24] | BOLT,Hex, M20 x 1.5 x 45, 10.9, Full Thd | LECSCREW 20x1,5x45 Superseded by part number: 11408631 |
