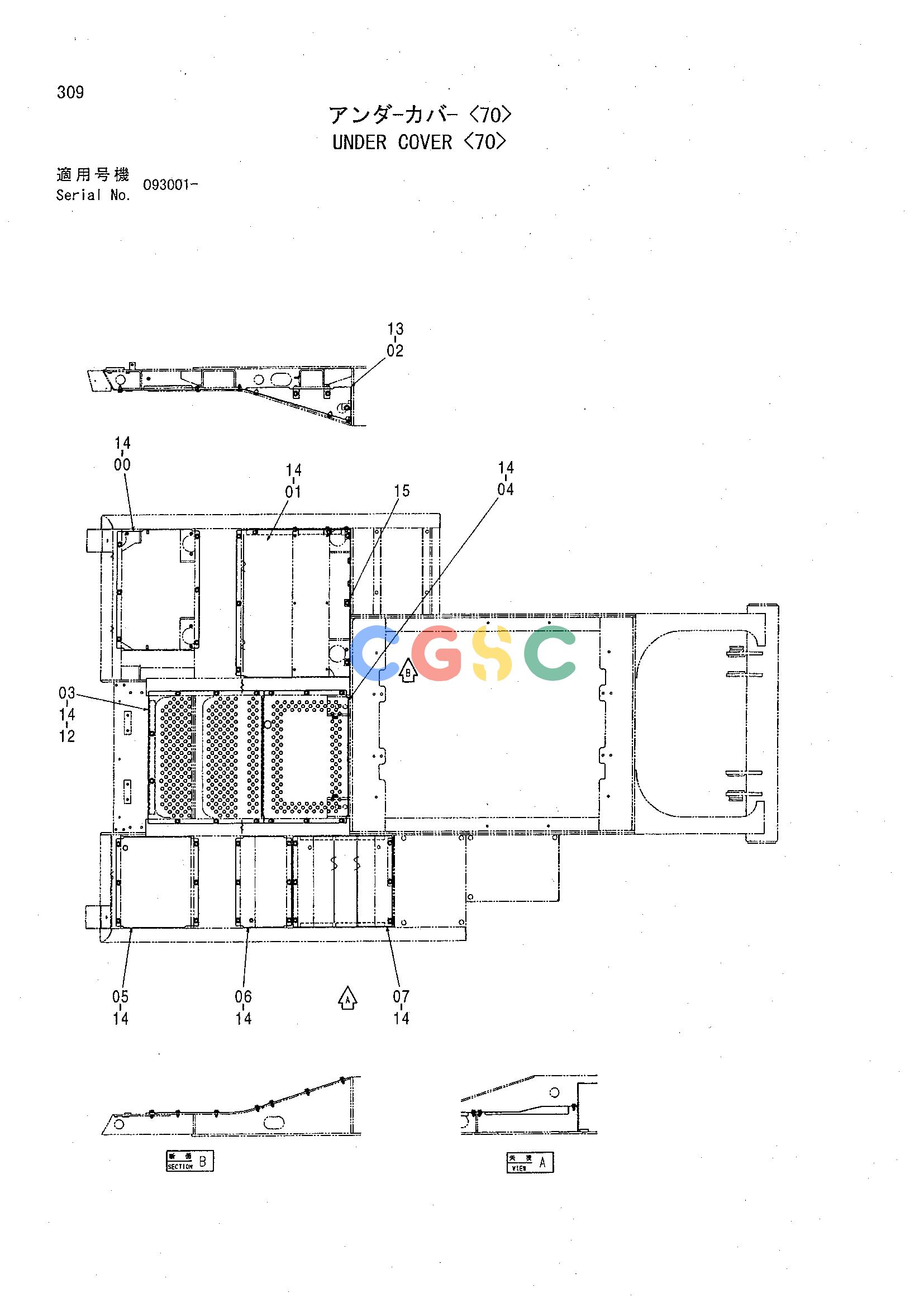

日立零件查询（CHR70）UNDER COVER <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
609 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 3082436 | [1] | COVER | |
| 01. | 3084499 | [1] | COVER | |
| 02. | 8074751 | [1] | COVER | |
| 03. | 8074750 | [1] | COVER | |
| 04. | 3084498 | [1] | COVER | |
| 05. | 3082442 | [1] | COVER | |
| 06. | 3082443 | [1] | COVER | |
| 07. | 7035807 | [1] | COVER | |
| 12. | J031040 | [2] | BOLT;SEMS | |
| 12. | J281040 | [2] | BOLT;SEMS | TJ901040 |
| 12. | J281040 | [2] | BOLT;SEMS | T4486055 |
| 13. | J031030 | [5] | BOLT;SEMS | |
| 13. | J281030 | [5] | BOLT;SEMS | TJ901030 |
| 13. | J281030 | [5] | BOLT;SEMS | T4486055 |
| 14. | J031035 | [39] | BOLT;SEMS | |
| 14. | J281035 | [39] | BOLT;SEMS | TJ901035 |
| 14. | J281035 | [39] | BOLT;SEMS | T4486055 |
| 15. | J031030 | [3] | BOLT;SEMS | |
| 15. | J281030 | [3] | BOLT;SEMS | TJ901030 |
| 15. | J281030 | [3] | BOLT;SEMS | T4486055 |
