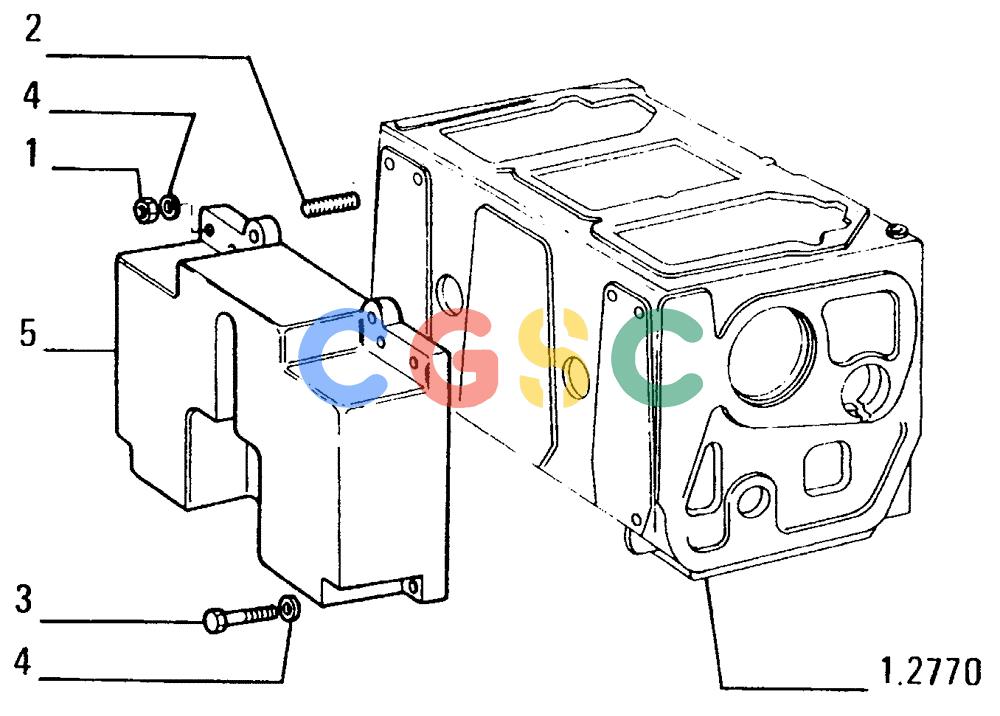

纽荷兰零件查询(FD14E) - CRAWLER DOZER (93.4640[001]) - REAR COUNTERWEIGHT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
175 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 12164527 | [4] | NUT,M24 x 1.5, Cl 10 | LEC24x2x19 |
| 2. | 13957530 | [4] | STUD | LEC24x2x157 |
| 3. | 15998737 | [2] | BOLT,Hex, M24 x 2 x 180mm, Cl 10.9 | LECSCREW 24x2x180 |
| 4. | 76002739 | [6] | WASHER | LEC- IN ALTERNATIVE Superseded by part number: 79005245 |
| 4. | 79005245 | [6] | WASHER,25mm ID x 55mm OD x 9mm Thk | LEC- IN ALTERNATIVE |
| 5. | 79073014 | [1] | WEIGHT | LECREAR COUNTERWEIGHT Superseded by part number: 76074915 |
