纽荷兰零件查询(FD14E) - CRAWLER DOZER (93.4375[001]) - REAR EQUIPMENT CONTROL (Oct 5 2006 9:50AM) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
317 次

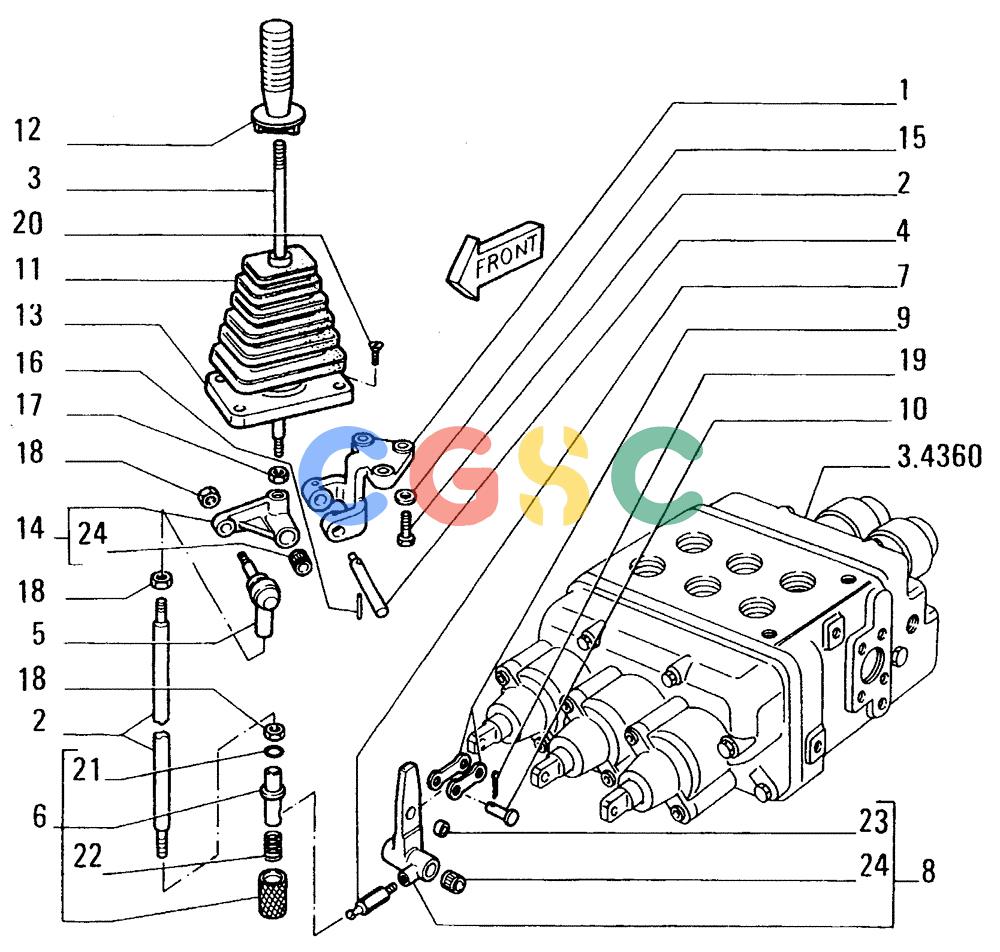

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79083897 | [1] | SUPPORT | LEC |
| 2. | 79083941 | [1] | SHAFT | LECTIEROD |
| 3. | 79084005 | [1] | ROD | LEC |
| 4. | 79078173 | [1] | PIN,16mm OD x 82mm L | LEC |
| 5. | 79092808 | [1] | ARTICULATION | LEC |
| 6. | 79083370 | [1] | QUICK MALE COUPLING | LECQUICK-CONNECTING COUPLING |
| 7. | 79086799 | [1] | ARTICULATION | LEC |
| 8. | 79092807 | [1] | LEVER | LEC- ASSEMBLY |
| 9. | 79092804 | [2] | PLATE | LEC |
| 10. | 79092805 | [2] | PIN | LEC |
| 11. | 79095562 | [1] | BOOT | LECDUST BOOT Superseded by part number: 79100924 |
| 12. | 79077337 | [1] | HANDLE GRIP | TORHANDGRIP Superseded by part number: 151615493 |
| 13. | 79095564 | [1] | CAPPING | LECBEZEL |
| 14. | 79092887 | [1] | HUB | LEC- ASSEMBLY |
| 15. | 14496631 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 17. | 11702921 | [1] | NUT,M12, Cl 10 | LEC Superseded by part number: 17038425 |
| 18. | 11701721 | [3] | NUT,M10, Cl 10 | LEC10x1,5x8 Superseded by part number: 17038131 |
| 19. | 14161970 | [2] | LOCK PIN,M3 x 20, Slotted | LECSPRING PIN 3,3x20 Superseded by part number: 80300865 |
| 19. | 14164370 | [1] | LOCK PIN,M4 x 30, Slotted | FORSPRING PIN 4,4x30 |
| 21. | 11106431 | [3] | SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LECSCREW 10x1,5x30 Superseded by part number: 9515003 |
| 21. | 13420776 | [1] | RING | LECSNAP RING |
| 22. | 79086837 | [1] | SPRING | LEC |
| 23. | 79005596 | [1] | BUSHING,12mm ID x 14mm OD x 10mm L | LEC |
| 24. | 79084568 | [1] | BEARING ASSY,Needle, 16mm ID x 22mm OD x 14mm W | LECBUSHING |
