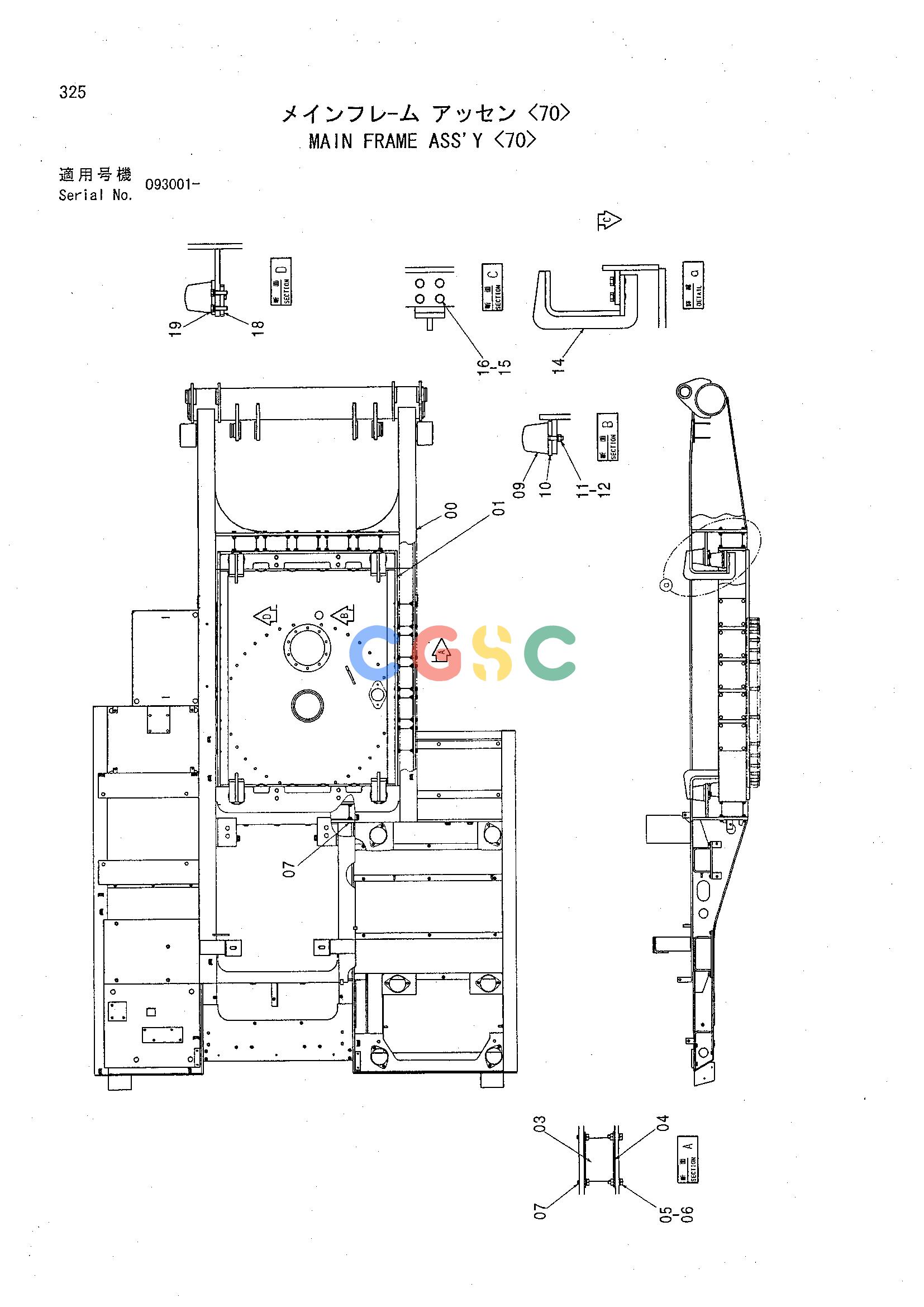

日立零件查询（CHR70）MAIN FRAME ASS'Y <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
204 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9176207 | [1] | MAIN FRAME ASS'Y | |
| 00. | 5006281 | [1] | FRAME;MAIN | |
| 01. | 6017534 | [1] | FRAME | |
| 02. | 4404817 | [20] | CUSHION | |
| 04. | 4400743 | [30] | PLATE;THRUST | |
| 05. | J011240 | [78] | BOLT;SEMS | |
| 05. | J271240 | [78] | BOLT;SEMS | TJ901240 |
| 05. | J271240 | [78] | BOLT;SEMS | TJ222012 |
| 06. | J950012 | [78] | NUT | |
| 07. | J011230 | [82] | BOLT;SEMS | |
| 07. | J271230 | [82] | BOLT;SEMS | TJ901230 |
| 07. | J271230 | [82] | BOLT;SEMS | TJ222012 |
| 09. | 4400780 | [12] | STOPPER;RUBBER | |
| 10. | 4406542 | [12] | PLATE;THRUST | |
| 11. | J950012 | [12] | NUT | |
| 12. | A590912 | [12] | WASHER;SPRING | |
| 14. | 8072050 | [4] | BRACKET | |
| 15. | J901640 | [16] | BOLT | |
| 16. | A590916 | [16] | WASHER;SPRING | |
| 18. | 4411547 | [2] | PLATE | |
| 19. | J021245 | [8] | BOLT;SEMS | |
| 19. | J271245 | [8] | BOLT;SEMS | TJ901245 |
| 19. | J271245 | [8] | BOLT;SEMS | TJ222012 |
