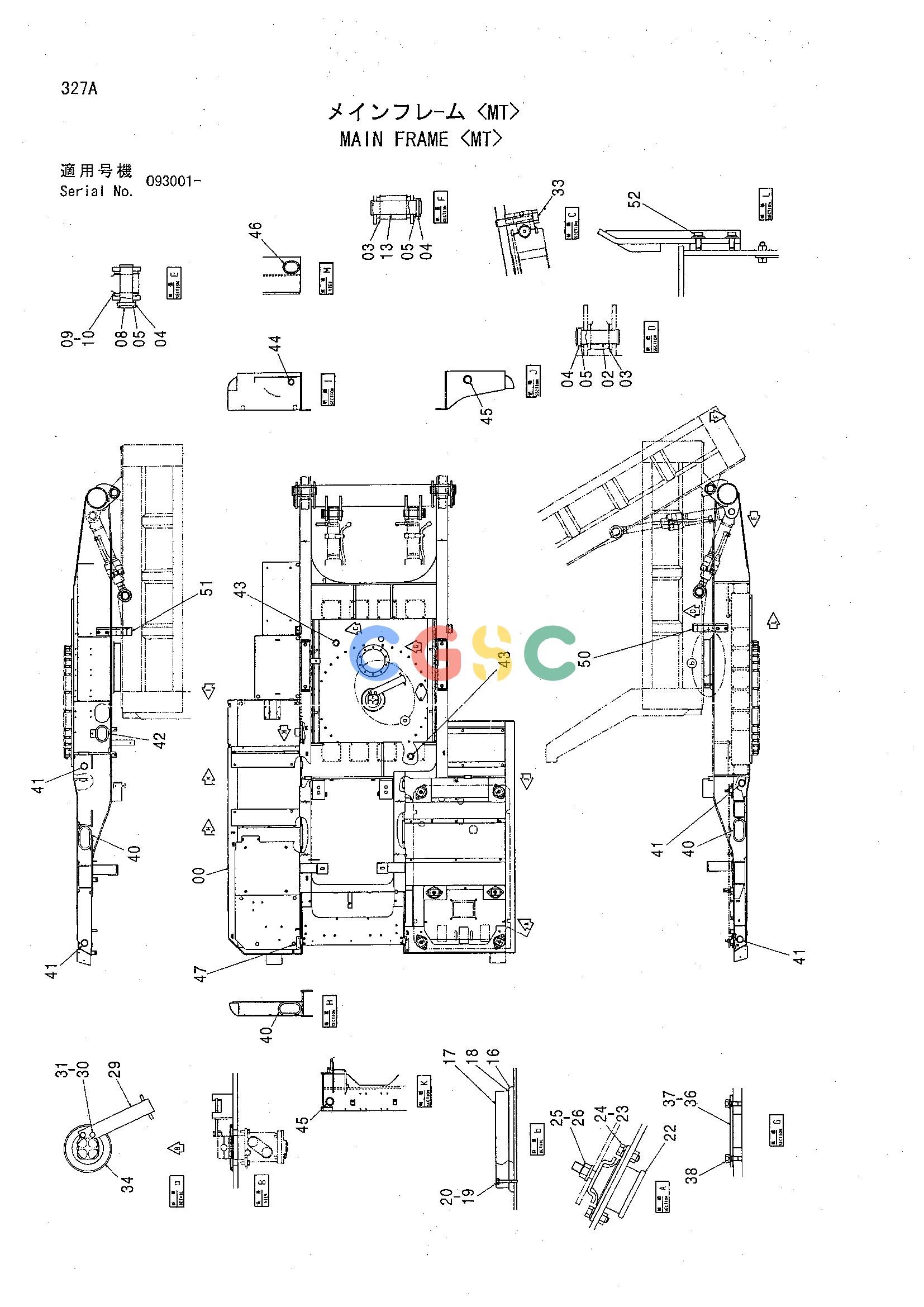

日立零件查询（CHR70）MAIN FRAME <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
304 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 9190798 | [1] | MAIN FRAME ASS'Y | <for details: see separate page> |
| 02. | 3083050 | [2] | PIN | |
| 03. | 4366693 | [8] | PLATE;THRUST 1.0 | |
| 04. | 4065688 | [6] | RING | |
| 05. | 4065689 | [6] | PIN | |
| 08. | 3075517 | [2] | PIN | |
| 09. | 4366694 | [4] | PLATE;THRUST 1.0 | |
| 10. | 4367411 | [4] | PLATE;THRUST 2.0 | |
| 13. | 3084330 | [2] | PIN | |
| 16. | 4400685 | [2] | PLATE | |
| 17. | 4400690 | [2] | CUSHION | |
| 18. | 4411233 | [5] | SHIM 2.0 | |
| 19. | J901290 | [4] | BOLT | |
| 20. | A590112 | [4] | WASHER;PLANE | |
| 22. | 4366825 | [6] | RUBBER;CUSHION | |
| 23. | 4330785 | [12] | BOLT | |
| 24. | A590912 | [12] | WASHER;SPRING | |
| 25. | J222016 | [6] | WASHER | |
| 26. | M660016 | [6] | NUT;U | |
| 29. | 3057962 | [1] | STOPPER | |
| 30. | J901435 | [2] | BOLT | |
| 31. | A590914 | [2] | WASHER;SPRING | |
| 33. | J921890 | [29] | BOLT | |
| 34. | 4428007 | [1] | COVER;BOOT | |
| 36. | 4255799 | [1] | COVER | |
| 37. | 4161735 | [1] | PACKING | |
| 38. | J021025 | [2] | BOLT;SEMS | |
| 38. | J271025 | [2] | BOLT;SEMS | TJ901025 |
| 38. | J271025 | [2] | BOLT;SEMS | TJ222010 |
| 40. | 4416796 | [3] | BUSHING;RUBBER | |
| 41. | 4201749 | [4] | BUSHING;RUBBER | |
| 42. | 4437910 | [1] | BUSHING;RUBBER | |
| 43. | 4257181 | [2] | BUSHING;RUBBER | |
| 44. | 998720 | [1] | BUSHING;RUBBER | |
| 45. | 4255530 | [2] | BUSHING;RUBBER | |
| 46. | 4416797 | [1] | BUSHING;RUBBER | |
| 47. | 4223991 | [1] | BUSHING;RUBBER | |
| 50. | 8073330 | [1] | GUIDE | |
| 51. | 8073331 | [1] | GUIDE | |
| 52. | J031230 | [4] | BOLT;SEMS | |
| 52. | J281230 | [4] | BOLT;SEMS | TJ901230 |
| 52. | J281230 | [4] | BOLT;SEMS | T4249324 |
