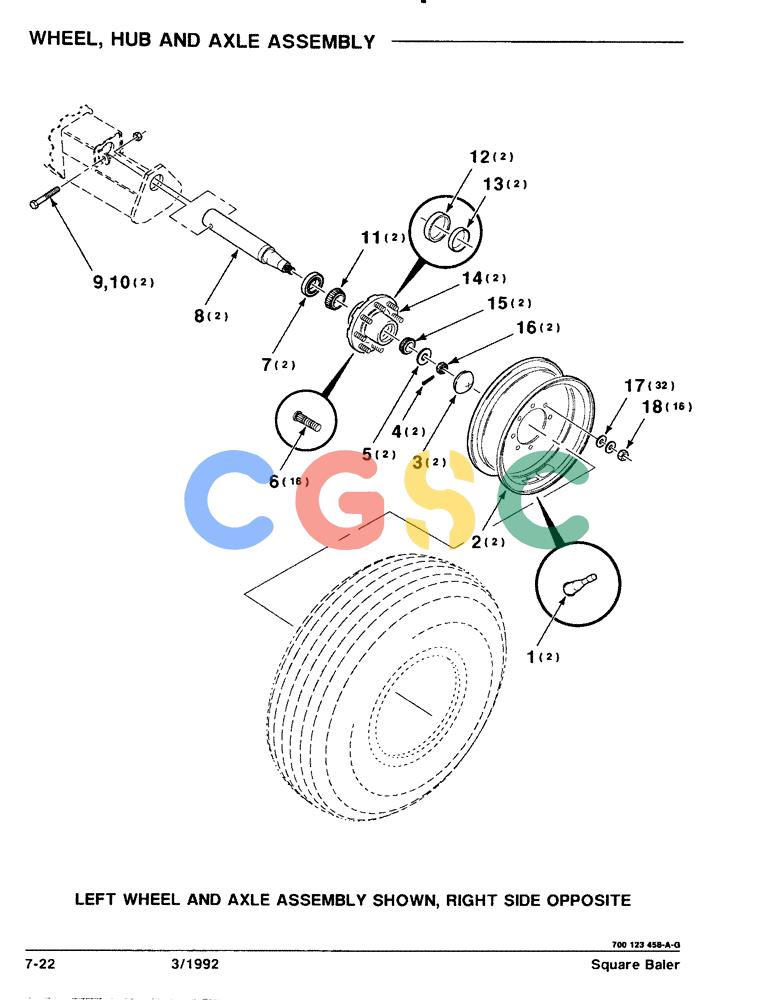

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (7-22) - WHEEL, HUB AND AXLE ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
333 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
727743
|
[2] |
NEEDLE VALVE
|
NNA
- VALVE Superseded by part number: 196033, 196033, A38261
|
| 2. |
700710570
|
[2] |
RIM
|
CAS
WHEEL - 16.1 X W16C
|
| 3. |
826784
|
[2] |
CAP
|
CAS
- HUB Superseded by part number: 86900188
|
| 4. |
62463
|
[2] |
PIN
|
CAS
1/4 X 1-3/4 COTTER PIN Superseded by part number: 87041
|
| 5. |
705574
|
[2] |
WASHER,1 1/8" x 2" x .156", HDN
|
CAS
|
| 6. |
700710568
|
[16] |
BOLT,Rib Nk, 5/8" - 18 x 2 1/4", Gr 5
|
CAS
5/8-18 X 2-1/4 RIB NECK BOLT
|
| 7. |
844555
|
[2] |
SEAL
|
CAS
Superseded by part number: A178381
|
| 8. |
700123459
|
[2] |
SPINDLE
|
CAS
SHAFT - SPINDLE Superseded by part number: 700163381, 296824A1
|
| 9. |
702134
|
[2] |
SCREW
|
HFI
5/8-11 X 4 C Superseded by part number: 413-618
|
| 10. |
704924
|
[2] |
NUT
|
CAS
5/8-11 HTLN GR/B Superseded by part number: 85700693
|
| 11. |
714634
|
[2] |
CONE
|
CAS
BEARING - CONE Superseded by part number: 648861
|
| 12. |
714626
|
[2] |
CUP
|
CAS
- BEARING Superseded by part number: 625743C1
|
| 13. |
713545
|
[2] |
CUP
|
CAS
- BEARING Superseded by part number: 663558R1
|
| 14. |
700710569
|
[2] |
HUB
|
CAS
ASM. (Includes Items 6, 12 & 13)
|
| 15. |
713537
|
[2] |
ROLLER BEARING
|
CAS
BEARING - CONE Superseded by part number: 86512015
|
| 16. |
704692
|
[2] |
NUT
|
CAS
1-14 SLOTTED HEX NUT Superseded by part number: 86020752
|
| 17. |
705582
|
[32] |
WASHER
|
CAS
5/8 HARDENED PLAIN WASHER Superseded by part number: 396-21066, 396-21066, NLS
|
| 18. |
704320
|
[16] |
NUT
|
CAS
5/8-18H Superseded by part number: 425-1110
|
