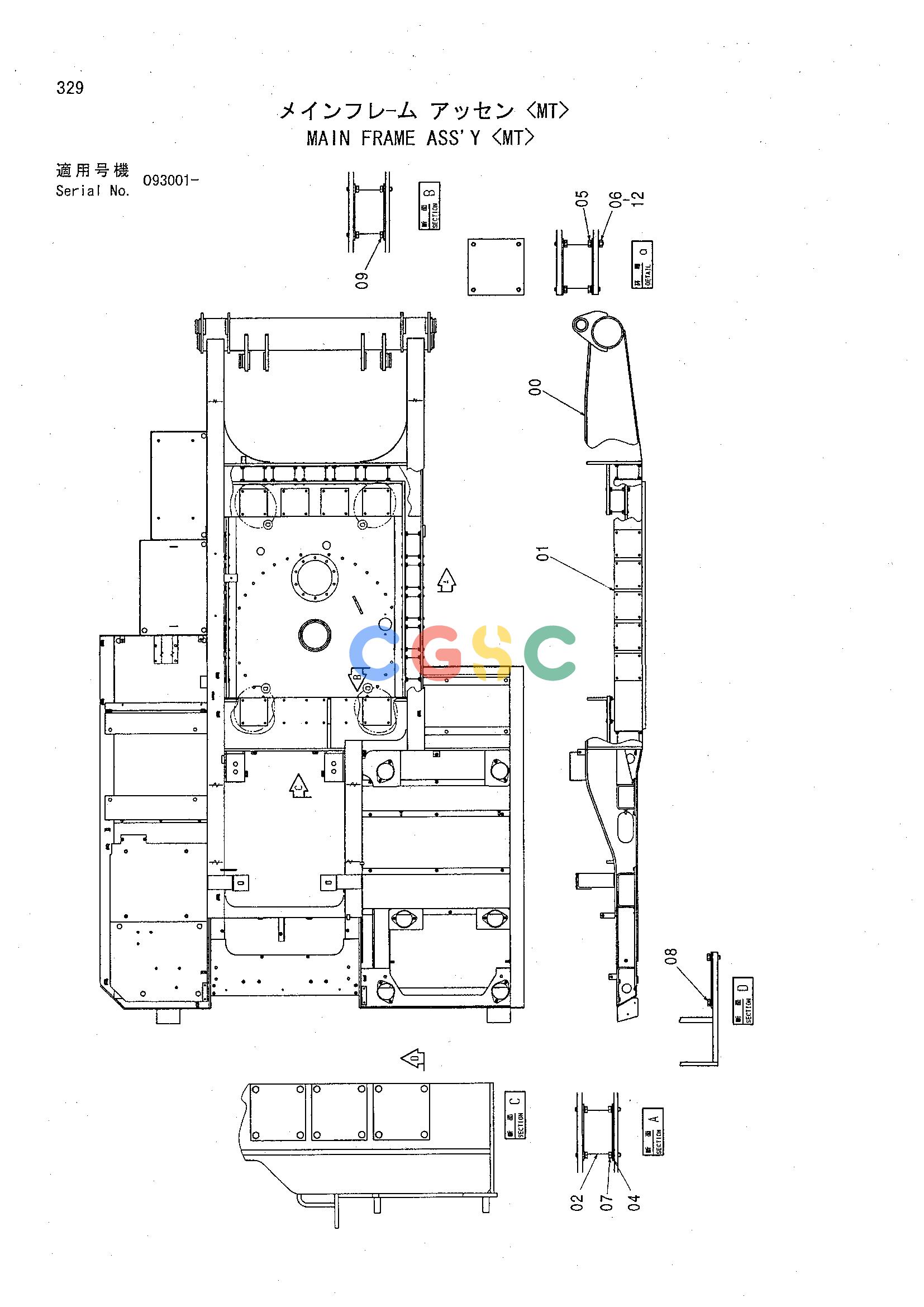

日立零件查询（CHR70）MAIN FRAME ASS'Y <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
329 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9190798 | [1] | MAIN FRAME ASS'Y | |
| 00. | 5007113 | [1] | FRAME;MAIN | |
| 01. | 6019190 | [1] | FRAME | |
| 02. | 4404817 | [28] | CUSHION | |
| 04. | 4400743 | [30] | PLATE;THRUST | |
| 05. | J011240 | [4] | BOLT;SEMS | |
| 05. | J271240 | [4] | BOLT;SEMS | TJ901240 |
| 05. | J271240 | [4] | BOLT;SEMS | TJ222012 |
| 06. | J950012 | [4] | NUT | |
| 07. | J011230 | [217] | BOLT;SEMS | |
| 07. | J271230 | [217] | BOLT;SEMS | TJ901230 |
| 07. | J271230 | [217] | BOLT;SEMS | TJ222012 |
| 08. | J011225 | [2] | BOLT;SEMS | |
| 08. | J271225 | [2] | BOLT;SEMS | TJ901225 |
| 08. | J271225 | [2] | BOLT;SEMS | TJ222012 |
| 09. | J011220 | [1] | BOLT;SEMS | |
| 09. | J271220 | [1] | BOLT;SEMS | TJ901220 |
| 09. | J271220 | [1] | BOLT;SEMS | TJ222012 |
| 12. | A590912 | [4] | WASHER;SPRING | |
