纽荷兰零件查询(FD14E) - CRAWLER DOZER (93.4700[002]) - TILT CYLINDER-FRONT IMPLEMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
978 次

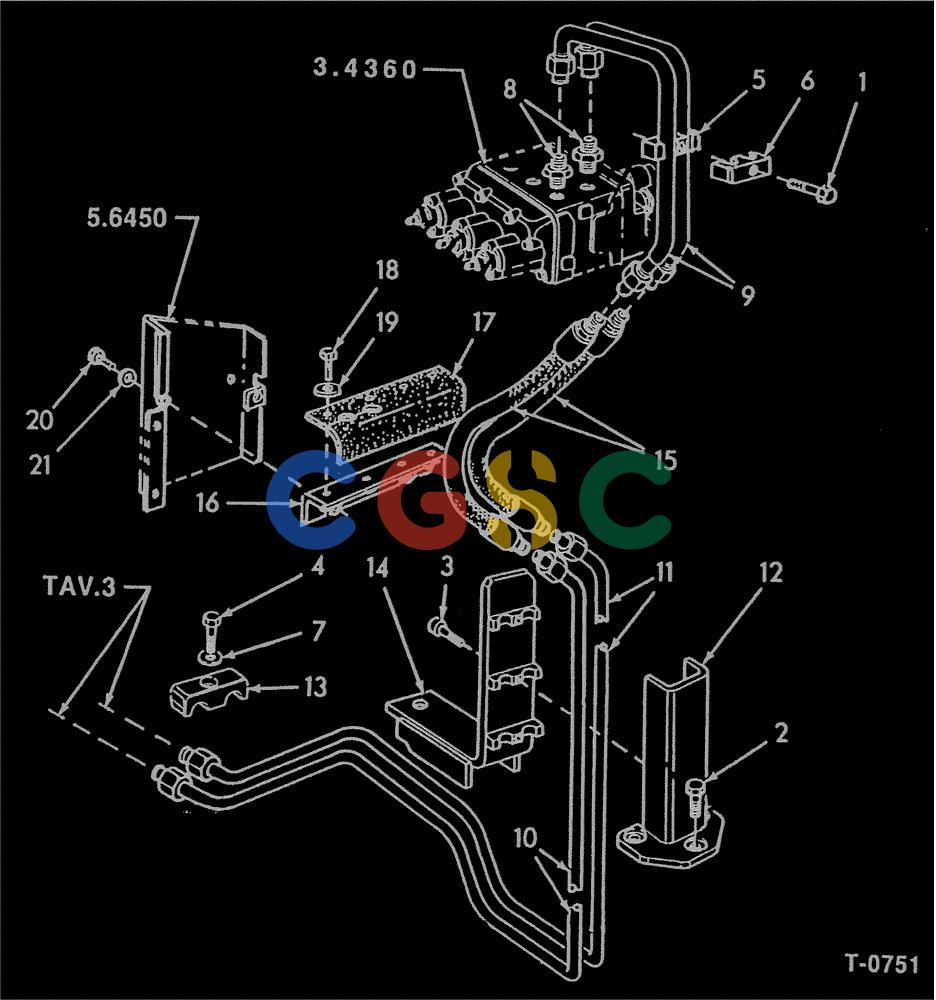

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 11106431 | [1] | SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LECSCREW.10X1.5X30 Superseded by part number: 9515003 |
| 2. | 11112231 | [3] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LECSCREW.12X1.75X22 Superseded by part number: 398792 |
| 3. | 14302831 | [3] | HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 10.9, Full Thd | LEC.8X1. 25X18 Superseded by part number: 14302837 |
| 4. | 16044031 | [2] | BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9 | LEC Superseded by part number: 9780069 |
| 5. | 45024498 | [1] | BRACKET | TORBLOCK |
| 6. | 45024537 | [1] | BRACKET | TORBLOCK |
| 7. | 79011527 | [2] | WASHER,8.6mm ID x 22mm OD x 5mm Thk | LEC |
| 8. | 79066945 | [2] | HYD CONNECTOR | LECFITTING |
| 9. | 79080453 | [2] | RIGID TUBE | LECTUBE |
| 10. | 79081871 | [1] | RIGID TUBE | LECTUBE - FRONT |
| 11. | 79081873 | [1] | RIGID TUBE | LECTUBE-REAR |
| 12. | 79081875 | [1] | SUPPORT | LEC |
| 13. | 79082876 | [2] | BLOCK | LEC |
| 14. | 79081879 | [1] | GUARD | LEC |
| 15. | 79081883 | [2] | FLEXIBLE HOSE | LECHOSE |
| 16. | 73156860 | [1] | ANGLE | NH |
| 17. | 73156859 | [1] | SEAL | NH |
| 18. | 12642021 | [4] | WASHER | BHBCAPSCREW Superseded by part number: 63707, 86625263 |
| 19. | 16043434 | [4] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | LECWASHER Superseded by part number: 16043431 |
| 20. | 11106234 | [2] | BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd | BURCAPSCREW Superseded by part number: 11106231 |
| 21. | 12646824 | [2] | WASHER,10.2mm ID x 25mm OD x 2mm Thk | TTF |
