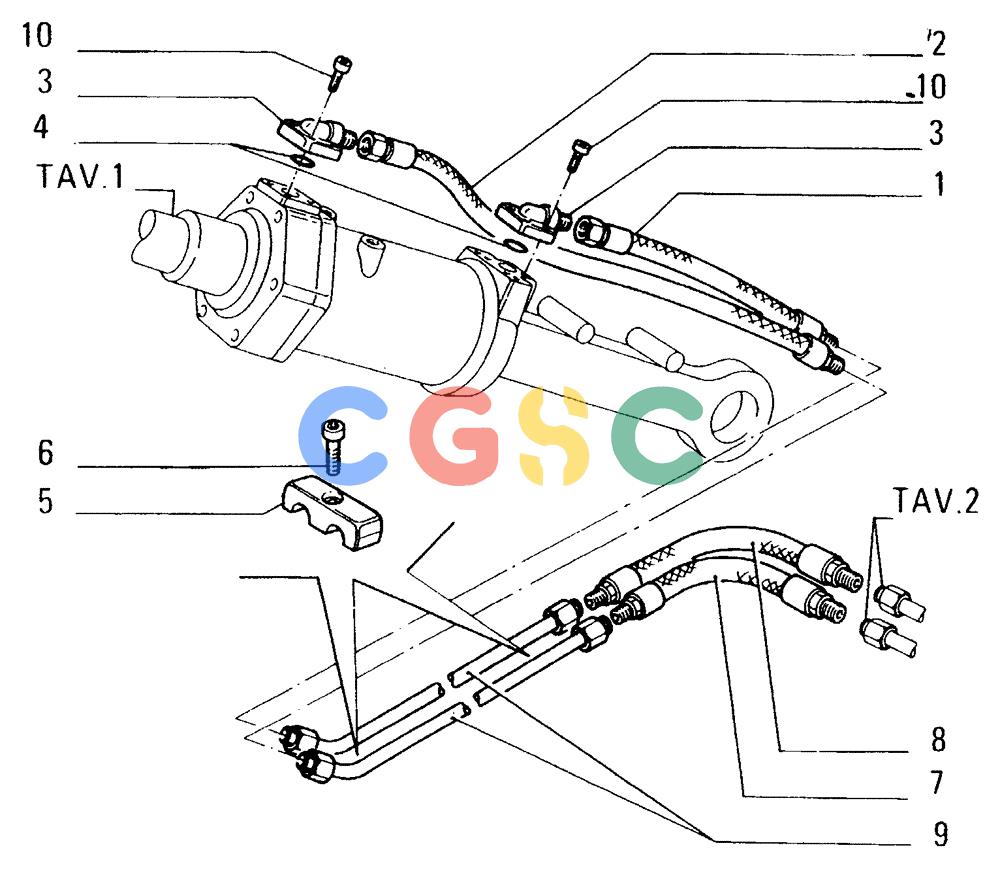

纽荷兰零件查询(FD14E) - CRAWLER DOZER (93.4700[003]) - TILT CYLINDER-FRONT IMPLEMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
774 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79076429 | [1] | FLEXIBLE HOSE | LECHOSE |
| 2. | 79076428 | [1] | FLEXIBLE HOSE | LECHOSE |
| 3. | 79076414 | [2] | FLANGE | LEC |
| 4. | 14463780 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro | LEC-219, 70 Duro, 1.296" ID x .139" Thk (M32.92 ID x 3.53 Thk) Superseded by part number: 353108 |
| 5. | 79082876 | [2] | BLOCK | LEC |
| 6. | 14307031 | [2] | HEX SOC SCREW,M8 x 14mm, Cl 10.9 | LEC |
| 7. | 79089542 | [1] | FLEXIBLE HOSE | LECHOSE ASSY |
| 8. | 79089477 | [1] | FLEXIBLE HOSE | LECHOSE ASSY |
| 9. | 79082873 | [2] | RIGID TUBE | LECTUBE |
| 10. | 14420231 | [8] | HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LEC10x1,25x30 |
