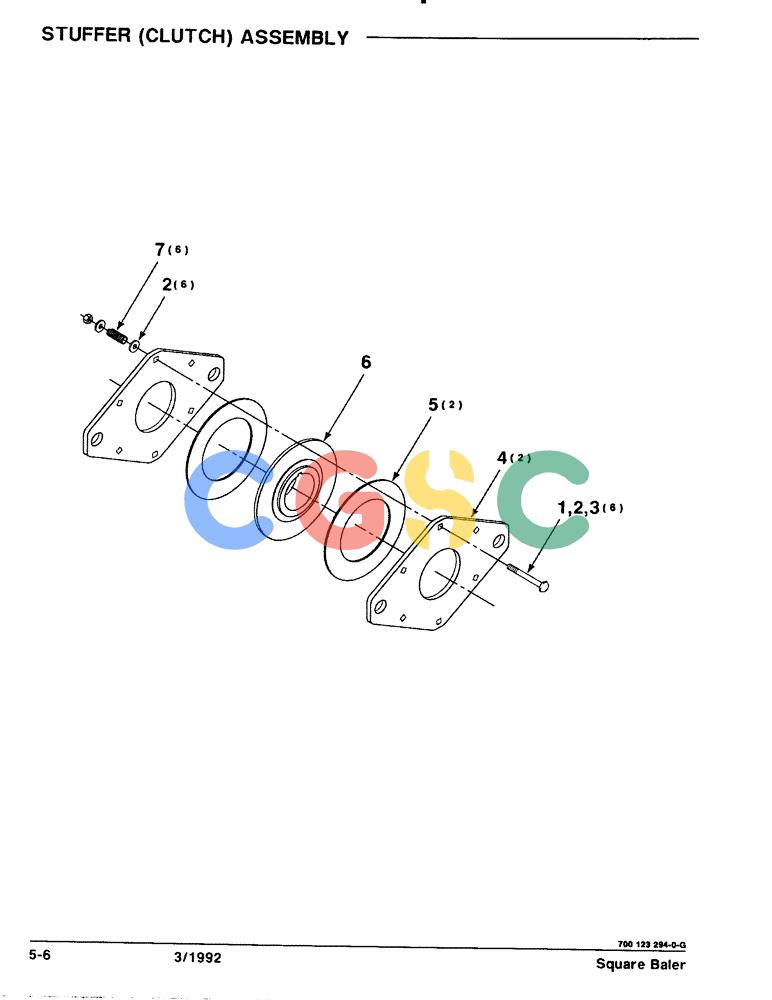

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (5-06) - STUFFER, CLUTCH ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
599 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7770506
|
[6] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5
|
CAS
3/8-16 X 3-1/2 RHSNB Superseded by part number: 280348
|
| 2. |
80702
|
[12] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
3/8 HARDENED PLAIN WASHER
|
| 3. |
74781
|
[6] |
NUT
|
CAS
3/8-16 LHSN Superseded by part number: 231-1406, 231-1406, NS
|
| 4. |
6578868
|
[2] |
LARGE PLATE
|
CAS
PLATE - PRESSURE 2
|
| 5. |
700710945
|
[2] |
CLUTCH PLATE,126.75mm ID x 203.2mm OD x 3.18mm Thk
|
L
DISC - CLUTCH
|
| 6. |
700123295
|
[1] |
HUB
|
CAS
WA
|
| 7. |
758011
|
[6] |
SPRING
|
CAS
- COMPRESSION
|
