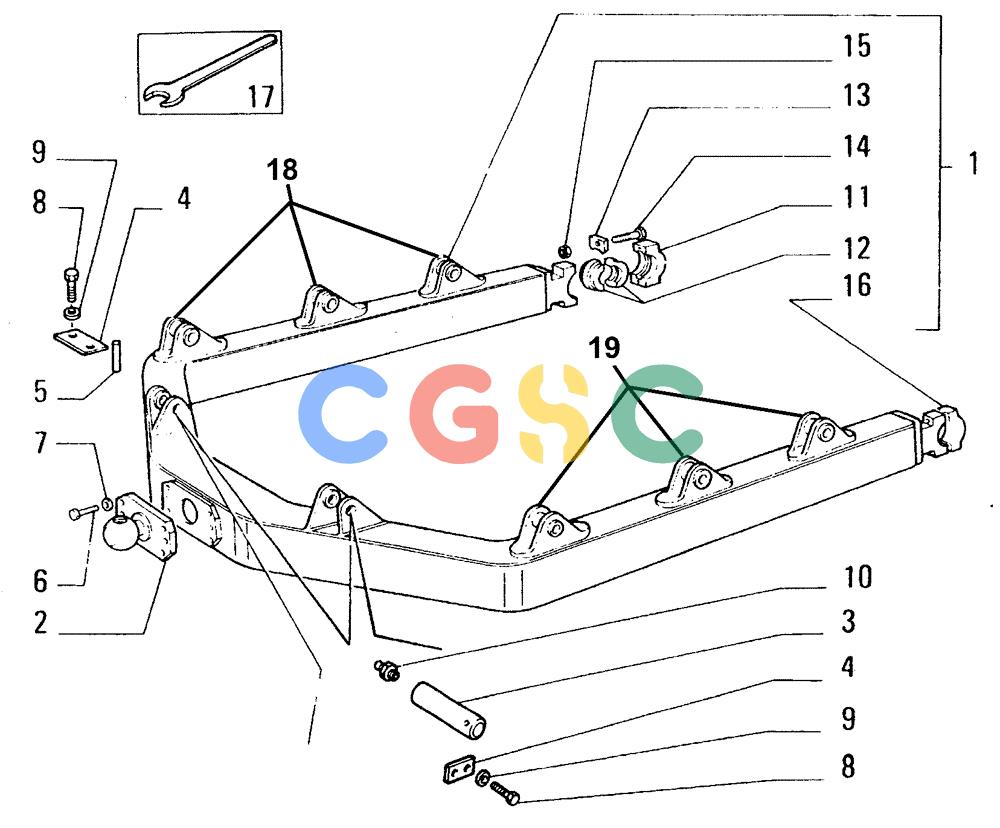

纽荷兰零件查询(FD14E) - CRAWLER DOZER (93.4780[001]) - C-FRAME-FRONT IMPLEMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
698 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79089883 | [1] | U-FRAME | LECC-FRAME - ASSEMBLY |
| 2. | 8274616 | [1] | SUPPORT | LEC- IN ALTERNATIVE Superseded by part number: 8274704 |
| 2. | 8274704 | [1] | SUPPORT | LEC- IN ALTERNATIVE Superseded by part number: 76092028 |
| 3. | 8290362 | [2] | PIN,40mm OD x 140mm L | LEC |
| 4. | 8270126 | [3] | PLATE | LEC Superseded by part number: 76092114 |
| 5. | 8273214 | [1] | PIN,50mm OD x 252mm L | LEC |
| 6. | 16047071 | [6] | BOLT,Hex, M18 x 2.5 x 50mm, Cl 12.9, Full Thd | LEC |
| 7. | 10517371 | [6] | LOCK WASHER | MODWASHER Superseded by part number: |
| 8. | 11115534 | [6] | BOLT,Hex, M14 x 30, 10.9, Full Thd | LECM14 x 30, 10.9, Full Thd |
| 9. | 14496831 | [6] | WASHER,15mm ID x 28mm OD x 2.5mm Thk | LEC14,4x28 |
| 10. | 13407211 | [2] | LUBE NIPPLE,M10 x 1 | TTFNIPPLE, LUBE, M10 x 1 Superseded by part number: 84351730 |
| 11. | 79074406 | [1] | SUPPORT | LECREST |
| 12. | 8280908 | [2] | HALF-BUSHING | LECHALF BUSHING |
| 13. | 8280915 | [4] | LOCKING PLATE | LECPLATE |
| 14. | 16047131 | [4] | SCREW,M24 x 180mm, Cl 10.9 | LEC24x2x180 Superseded by part number: 16047137 |
| 15. | 12163721 | [4] | NUT,M24, Cl 10 | LEC Superseded by part number: 9848973 |
| 16. | 8296138 | [1] | SUPPORT | LECREST Superseded by part number: 79074406 |
| 17. | 14585778 | [1] | ADJUSTING WRENCH | LECKEY 36x11 Superseded by part number: 14585771 |
| 18. | 76006222 | [3] | BRACKET | NHSUPPORT |
| 19. | 76006217 | [3] | BRACKET | NHSUPPORT |
