纽荷兰零件查询(FD14E) - CRAWLER DOZER (93.4700[004]) - TILT CYLINDER-FRONT IMPLEMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
930 次

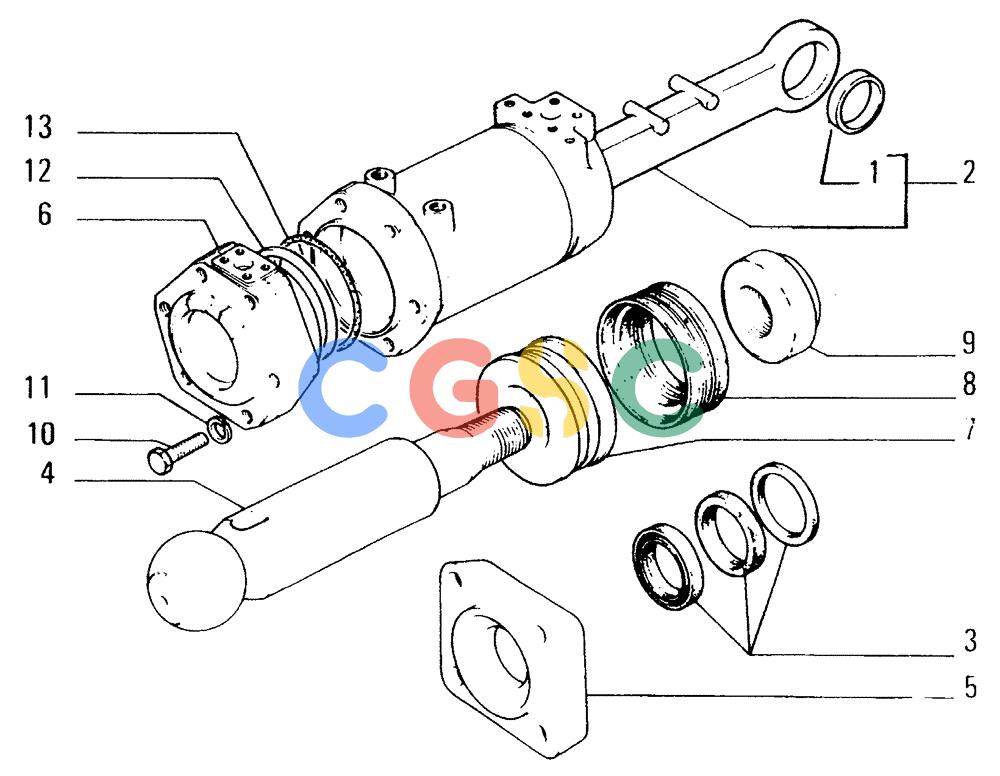

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8283381 | [1] | BUSHING,70.21mm ID x 82mm OD x 45mm L | LEC |
| 2. | 79074947 | [1] | BARREL | LECTUBE - ASSEMBLY |
| 3. | 79071307 | [1] | SEAL | LECSET |
| 4. | 79074953 | [1] | ROD | LEC |
| 5. | 8273636 | [1] | FLANGE | LEC |
| 6. | 79092823 | [1] | GLAND | LECHEAD |
| 7. | 79056407 | [1] | PISTON | LEC |
| 8. | 8292367 | [1] | SEAL,115mm ID x 140mm OD x 25.4mm Thk | LEC |
| 9. | 8292259 | [1] | NUT | LEC |
| 10. | 16040031 | [6] | BOLT,Hex, M18 x 90mm, Cl 10.9 | CMISCREW 18x2,5x90 Superseded by part number: 16040037 |
| 11. | 10572271 | [6] | LOCK WASHER,M18 | MKTLOCKWASHER 18,2x3,5 Superseded by part number: |
| 12. | 8298265 | [1] | RING | LEC |
| 13. | 14467080 | [1] | O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro | LEC-252, 70 Duro, 5.234" ID x .139" Thk (M132.9 ID x 3.53 Thk) Superseded by part number: 79051081 |
