斗山零件查询TIMING GEAR CASE SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
210 次

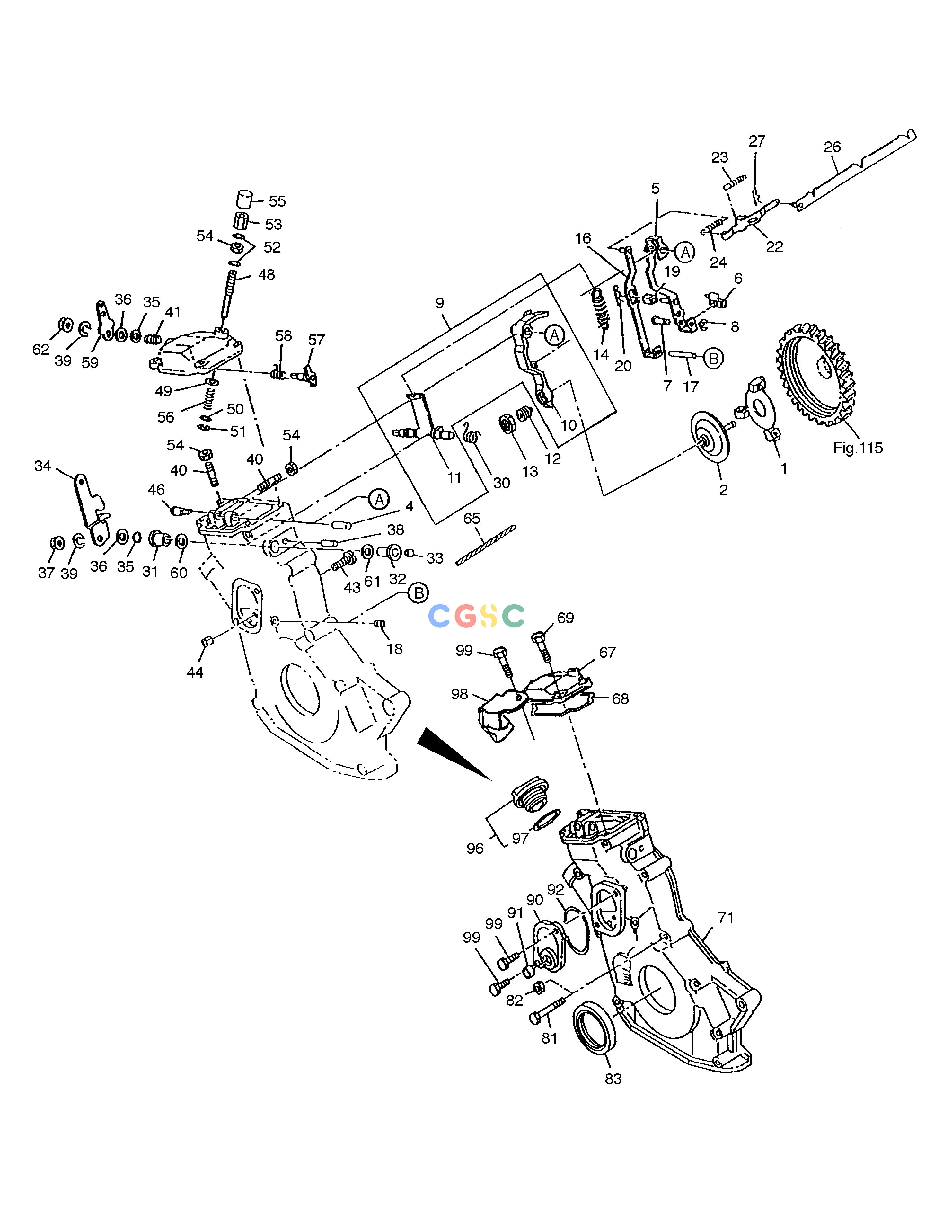

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
897318-3720
|
[1] |
FLY WEIGHT ASS'Y
|
|
| 10. |
897034-6376
|
[1] |
LEVER;TEN'SION GOV
|
|
| 11. |
897034-6424
|
[1] |
LEVER;MAIN SPRING
|
|
| 12. |
897094-4710
|
[1] |
ANGLEICH KIT
|
|
| 13. |
894130-4380
|
[1] |
NUT;HOLDER
|
|
| 14. |
897069-8911
|
[1] |
SPRING;MAIN 1.7K
|
|
| 16. |
897303-5802
|
[1] |
LEVER ASS'Y;FLOATING
|
|
| 17. |
908160-5450
|
[1] |
SHAFT;FLOATING LEVER
|
|
| 18. |
109605-0500
|
[1] |
PLUG;OILGALLERY PT1/8
|
|
| 19. |
897303-5830
|
[1] |
PIECE;GUIDE PIN G/LEVER
|
|
| 2. |
897147-4892
|
[1] |
SLEEVE ASS'Y
|
|
| 20. |
109747-0020
|
[1] |
PIN;SNAP LINK PLATE
|
|
| 22. |
897148-5500
|
[1] |
PLATE;LINK LEVER-PUMP
|
|
| 23. |
897084-3251
|
[1] |
SPRING;START
|
|
| 24. |
897083-7140
|
[1] |
SPRING;SET
|
|
| 26. |
897106-2071
|
[1] |
LINK ASS'Y;CONTROL L=217
|
|
| 27. |
109747-0020
|
[1] |
PIN;SNAP LINK PLATE
|
|
| 30. |
897016-9400
|
[1] |
SPRING;RETURN
|
|
| 31. |
897262-8830
|
[1] |
BUSH;LEVER MAIN SPRING
|
|
| 32. |
897262-8170
|
[1] |
BUSH;LEVER MAIN SPRING
|
|
| 33. |
894454-6150
|
[1] |
CUP;SEALING BUSH D=10
|
|
| 34. |
897049-3281
|
[1] |
LEVER;GOVERNOR CONTROL
|
|
| 35. |
109623-0550
|
[2] |
O-RING;CONTROL SPEED SE
|
|
| 36. |
509503-1350
|
[2] |
WASHER;THRUST
|
|
| 37. |
909110-5080
|
[1] |
NUT;LEVER TO SHAFT
|
|
| 38. |
908160-4360
|
[1] |
PIN;CONTROL SPRING
|
|
| 39. |
909150-5080
|
[1] |
WASHER;SPRING
|
|
| 4. |
908160-8500
|
[1] |
SHAFT;LEVER D=8 L=50
|
|
| 40. |
894317-6381
|
[2] |
SCREW CONTROL SPEED SET
|
|
| 41. |
109605-0190
|
[2] |
PLUG;OILGALLERY PT1/8
|
|
| 43. |
897039-5841
|
[1] |
SCREW SET FULL LOAD
|
|
| 44. |
909110-4060
|
[1] |
NUT;SCREW
|
|
| 46. |
515729-2392
|
[1] |
EYE;START SPRING
|
|
| 48. |
897016-4410
|
[1] |
SCREW;SET IDLE SPRING
|
|
| 49. |
909160-5040
|
[1] |
WASHER;IDLE SPR LOWER
|
|
| 5. |
897303-5772
|
[1] |
LEVER;ASS'Y GUIDE
|
|
| 50. |
909160-7040
|
[1] |
WASHER;IDLE SPR UPPER
|
|
| 51. |
909185-4030
|
[1] |
RING;SNAP IDLE SPR
|
|
| 52. |
509503-1320
|
[2] |
PACKING;SET SCREW
|
|
| 53. |
509400-0480
|
[1] |
NUT;CAP SET SCREW
|
|
| 54. |
909111-4060
|
[3] |
NUT;SET SCREW
|
|
| 55. |
515669-0021
|
[1] |
CAP;IDLE SET
|
|
| 56. |
897082-1140
|
[1] |
SPRING;IDLE
|
|
| 57. |
897016-4460
|
[1] |
SHAFT ASS'Y;FUEL CUT
|
|
| 58. |
897039-5461
|
[1] |
SPRING;RETURN FUEL CUT
|
|
| 59. |
897303-4540
|
[1] |
LEVER;FUEL CUT
|
|
| 6. |
897034-6383
|
[1] |
SHIFTER;GOVERNOR
|
|
| 60. |
909565-1140
|
[1] |
GASKET;BUSH
|
|
| 61. |
909565-1160
|
[1] |
GASKET;BUSH
|
|
| 62. |
909110-5080
|
[1] |
NUT;LEVER TO SHAFT
|
|
| 65. |
981325-4460
|
[1] |
WIRE;LEAD SEAL
|
|
| 67. |
897161-7450
|
[1] |
COVER;GOVERNOR LEVER
|
|
| 68. |
897064-6881
|
[1] |
PACKING;COVER
|
|
| 69. |
028080-6200
|
[3] |
BOLT;COCER FIX
|
|
| 7. |
897303-6670
|
[1] |
SHAFT;SHIFTER D=6 L=2
|
|
| 71. |
897303-4111
|
[1] |
CASE;GEAR TIMIMG
|
|
| 8. |
909185-4040
|
[1] |
RING;SNAP
|
|
| 81. |
028090-8600
|
[6] |
BOLT;TIMIMG CASE-BLOCK
|
|
| 82. |
091150-2080
|
[1] |
NUT;EXH MANIFOLD
|
|
| 83. |
509625-0790
|
[1] |
SEAL;OIL CRANK FRONT
|
|
| 9. |
897093-5493
|
[1] |
LEVER KIT;GOVERNOR
|
|
| 90. |
897307-4671
|
[1] |
COVER;ANGLEICH
|
|
| 91. |
511129-0060
|
[1] |
CUP;SEALING D=16
|
|
| 92. |
897226-8421
|
[1] |
O-RING;COVER
|
|
| 96. |
894425-6852
|
[1] |
CAP ASS'Y;OIL FILLER
|
|
| 97. |
894123-6231
|
[1] |
PACKING;CAP
|
|
| 98. |
897125-9740
|
[1] |
COVER;EPA
|
|
| 99. |
897132-2912
|
[3] |
BOLT M6X16
|
|
