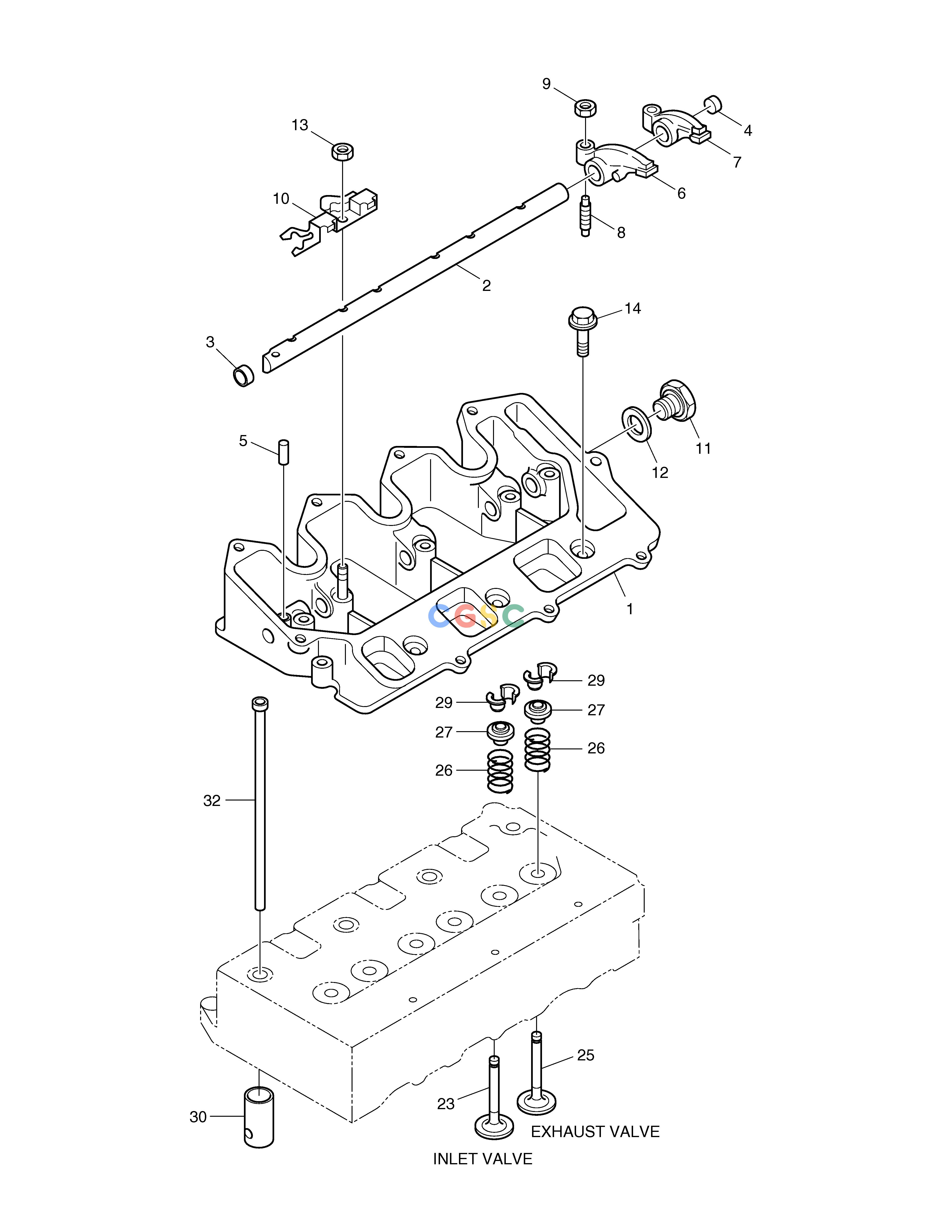

斗山零件查询VALVE MECHANISM SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
752 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
897163-4165
|
[1] |
BRACKET;ROCKER
|
|
| 10. |
897070-6982
|
[3] |
SPRING;ROCKER
|
|
| 11. |
999202-3140
|
[1] |
PLUG;FUEL FILTER
|
|
| 12. |
909571-4140
|
[1] |
PACKING;PLUG
|
|
| 13. |
897137-8360
|
[5] |
NUT;COVER FIX
|
|
| 14. |
028080-6250
|
[4] |
BOLT ROCKER BRKT FIX
|
|
| 2. |
897070-4651
|
[1] |
SHAFT;ROCKER
|
|
| 23. |
897102-1230
|
[3] |
VALVE;INLET
|
|
| 25. |
897045-4103
|
[3] |
VALVE;EXH
|
|
| 26. |
897034-6291
|
[6] |
SPRING;VALVE
|
|
| 27. |
894251-0311
|
[6] |
SEAT;VALVE SPRING
|
|
| 29. |
894239-5010
|
[12] |
COLLAR;SPLIT
|
|
| 3. |
911129-0830
|
[1] |
CUP;SEALING D=12
|
|
| 30. |
897124-3690
|
[6] |
TAPPET
|
|
| 32. |
897069-5752
|
[6] |
ROD;PUSH
|
|
| 4. |
897233-4290
|
[1] |
CUP;SEALING D=8
|
|
| 5. |
908160-5160
|
[1] |
PIN;ROCKER
|
|
| 6. |
897212-5180
|
[3] |
ARM;ROCKER INLET
|
|
| 7. |
897212-5200
|
[3] |
ARM;ROCKER EXHOUST
|
|
| 8. |
897010-4850
|
[6] |
SCREW;ADJ
|
|
| 9. |
909111-5060
|
[6] |
NUT;ADJ SCREW
|
|
