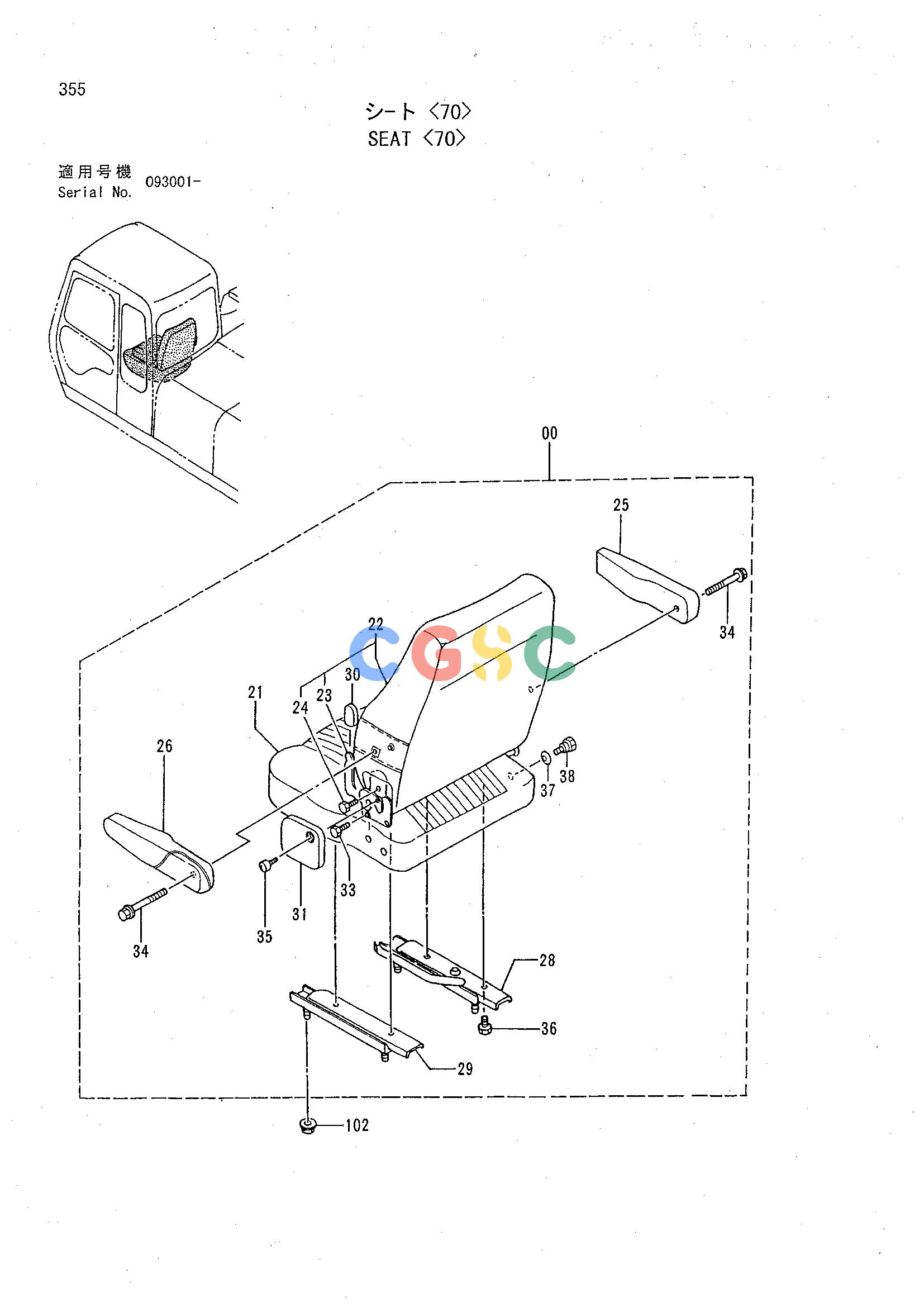

日立零件查询（CHR70）SEAT <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
1010 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4331657 | [1] | SEAT | |
| 21. | 4341205 | [1] | CUSHION;SEAT | |
| 22. | 4341211 | [1] | SEAT;BACK | |
| 23. | 4222852 | [1] | DEVICE | |
| 24. | 4222853 | [2] | BOLT | |
| 25. | 4341207 | [1] | REST;ARM (RH) | |
| 26. | 4341208 | [1] | REST;ARM (LH) | |
| 28. | 4282809 | [1] | SLIDE (RH) | |
| 29. | 4282808 | [1] | SLIDE (LH) | |
| 30. | 4282805 | [1] | DIVICE;KNOB | |
| 31. | 4282810 | [1] | DEVICE;COVER | |
| 33. | 4222853 | [2] | BOLT | |
| 34. | 4345839 | [2] | BOLT | |
| 35. | 4273197 | [1] | SCREW | |
| 36. | 4222865 | [4] | BOLT | |
| 37. | 4368256 | [1] | BUSHING | |
| 38. | 4368257 | [1] | BOLT | |
| 102. | M669008 | [4] | NUT;C-SW | |
