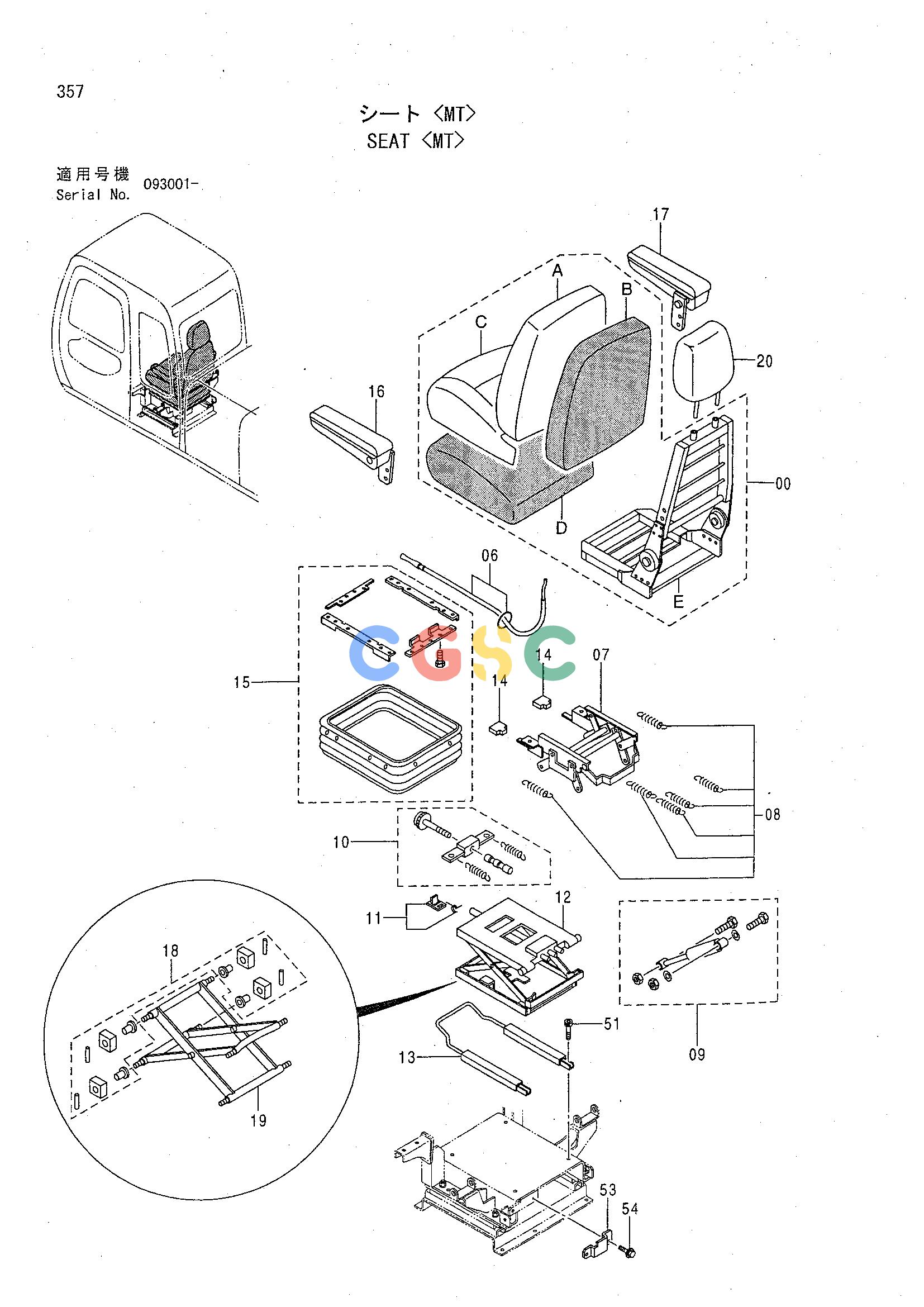

日立零件查询（CHR70）SEAT <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
467 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00-20. | 4383546 | [1] | SEAT ASS'Y | |
| 00. | 4392794 | [1] | SEAT | |
| 00A. | 4392795 | [1] | COVER;BACK | |
| 00B. | 4392796 | [1] | PAD;BACK | |
| 00C. | 4392797 | [1] | COVER;SEAT | |
| 00D. | 4392798 | [1] | PAD;SEAT | |
| 00E. | 4392799 | [1] | FRAME;SEAT | |
| 06. | 4392800 | [1] | CABLE | |
| 07. | 4392801 | [1] | STAND | |
| 08. | 4392802 | [1] | SPRING (1=6 PIECES) | |
| 09. | 4392803 | [1] | DAMPER | |
| 10. | 4392804 | [1] | ADJUSTER | |
| 11. | 4392805 | [1] | STOPPER | |
| 12. | 4392806 | [1] | SASPENSION | |
| 13. | 4392807 | [1] | SLIDER | |
| 14. | 4392808 | [1] | HANDLE (1=2 PIECES) | |
| 15. | 4392809 | [1] | COVER | |
| 16. | 4392810 | [1] | REST;ARM (L) | |
| 17. | 4392811 | [1] | REST;ARM (R) | |
| 18. | 4392812 | [1] | BUSHING | |
| 19. | 4392813 | [1] | LINK | |
| 20. | 4370207 | [1] | REST;HEAD | |
| 51. | M340816 | [4] | BOLT;SOCKET | |
| 53. | 3078471 | [1] | BRACKET | |
| 54. | J020825 | [2] | BOLT;SEMS | |
| 54. | J260825 | [2] | BOLT;SEMS | TJ900825 |
| 54. | J260825 | [2] | BOLT;SEMS | TA590108 |
