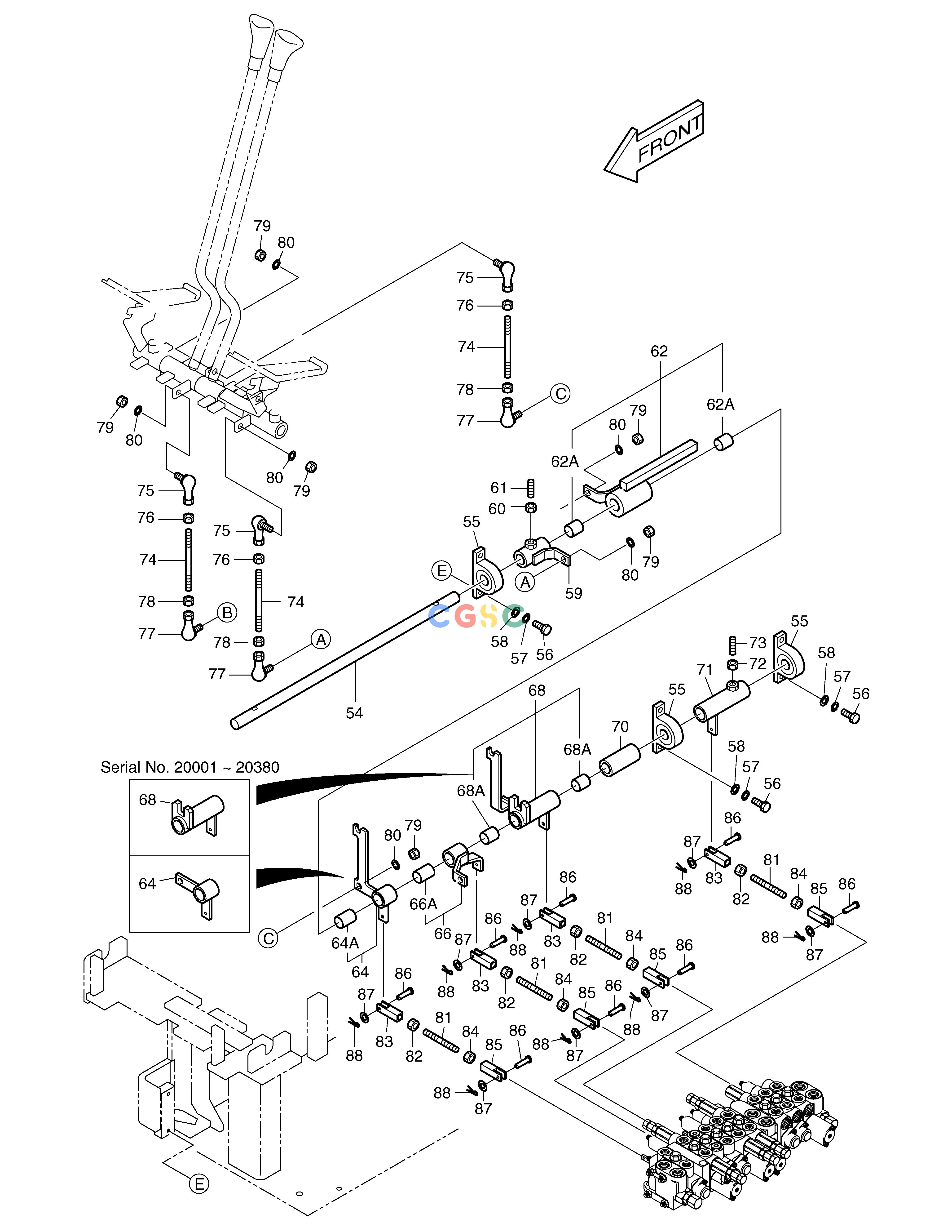

斗山零件查询CONTROL LEVER(2) SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
728 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2133-2117
|
[-] |
CONTROL LEVER
|
|
| 54. |
2112-1221A
|
[1] |
SHAFT
|
|
| 55. |
30640-60005
|
[3] |
UNIT;PILLOW
|
|
| 56. |
S0509053
|
[6] |
. BOLT
|
|
| 57. |
S5102503
|
[6] |
. WASHER
|
|
| 58. |
S5010513
|
[6] |
WASHER
|
|
| 59. |
2137-1180A
|
[1] |
LINK;DRIVE
|
|
| 60. |
S4012633
|
[1] |
NUT
|
|
| 61. |
S3524901
|
[1] |
SCREW;SET
|
|
| 62. |
2137-1181B
|
[1] |
LINK
|
|
| 62A. |
2110-1184D38
|
[2] |
BUSH 23/20-20L
|
|
| 64. |
2137-1199A
|
[1] |
LINK;DRIVE
|
|
| 64. |
2137-1199B
|
[1] |
LINK;DRIVE
|
|
| 64A. |
2110-1184D40
|
[2] |
BUSH
|
|
| 66. |
137-00001
|
[1] |
LINK;PTO
|
|
| 66A. |
2110-1184D40
|
[2] |
BUSH
|
|
| 68. |
2137-1200A
|
[1] |
LINK
|
|
| 68. |
2137-1200B
|
[1] |
LINK
|
|
| 68A. |
2110-1184D38
|
[2] |
BUSH 23/20-20L
|
|
| 70. |
2114-1750A
|
[1] |
COLLAR
|
|
| 71. |
2137-1201A
|
[1] |
LINK
|
|
| 72. |
S4012633
|
[1] |
NUT
|
|
| 73. |
S3524901
|
[1] |
SCREW;SET
|
|
| 74. |
2136-1419A
|
[3] |
ROD(E)
|
|
| 75. |
2138-9018
|
[3] |
BALL;LINK(L.H)
|
|
| 76. |
2121-1298
|
[3] |
NUT(L.H)
|
|
| 77. |
2138-9017
|
[3] |
BALL;LINK
|
|
| 78. |
S4012633
|
[3] |
NUT
|
|
| 79. |
S4012633
|
[6] |
NUT
|
|
| 80. |
S5102603
|
[6] |
. WASHER
|
|
| 81. |
2136-1448A
|
[4] |
ROD
|
|
| 82. |
2121-1298
|
[4] |
NUT(L.H)
|
|
| 83. |
2138-1032
|
[4] |
END;ROD(L.H)
|
|
| 84. |
S4012633
|
[4] |
NUT
|
|
| 85. |
2138-1033
|
[4] |
END;ROD(L.H)
|
|
| 86. |
2123-2093
|
[8] |
PIN
|
|
| 87. |
S5000213
|
[8] |
. WASHER
|
|
| 88. |
S5735051
|
[8] |
PIN;SPLIT
|
|
