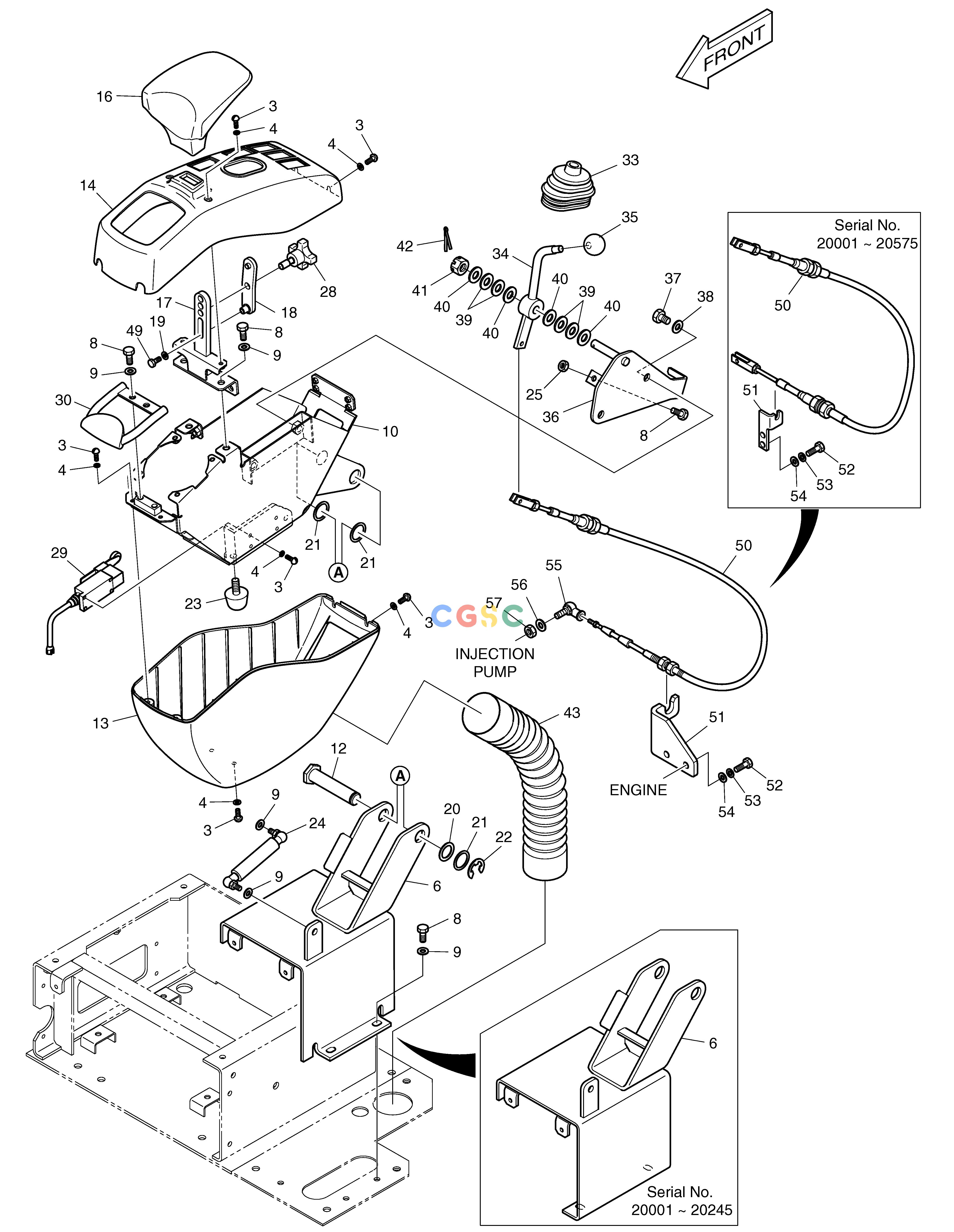

斗山零件查询CONTROL STAND ASS'Y - L.H. SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
334 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
195-02437C
|
[-] |
STAND ASS'Y
|
|
| -. |
195-02437E
|
[-] |
STAND ASS'Y
|
|
| -. |
195-02437G
|
[-] |
STAND ASS'Y
|
|
| 10. |
195-02449A
|
[1] |
BRACKET; SRAND LH
|
|
| 12. |
2123-2240
|
[1] |
PIN
|
|
| 13. |
195-02445
|
[1] |
CASE;LOWER
|
|
| 14. |
195-02443
|
[1] |
CASE;UPPER(LH)
|
|
| 16. |
161-00541
|
[1] |
REAT;ARM
|
|
| 17. |
195-02435A
|
[1] |
BRACKET;ARM REST
|
|
| 18. |
191-02716
|
[1] |
PLATE;ARM REST(LH)
|
|
| 19. |
2114-1898D3
|
[1] |
WASHER
|
|
| 20. |
2114-4129
|
[1] |
WASHER
|
|
| 21. |
2114-1059D31
|
[3] |
SHIM
|
|
| 22. |
S6541900
|
[1] |
RING;RETAINER
|
|
| 23. |
161-00195
|
[1] |
STOPPER
|
|
| 24. |
DS1001055
|
[1] |
SPRING;GAS
|
DS1001064
|
| 24. |
DS1001064
|
[1] |
SPRING;GAS
|
|
| 25. |
2121-1311D2
|
[4] |
NUT
|
|
| 28. |
4132-1139
|
[1] |
KNOB ASS'Y
|
|
| 29. |
549-00046
|
[1] |
SWITCH;PILOT CUT OFF
|
|
| 3. |
2120-2166D28
|
[10] |
. BOLT
|
|
| 30. |
133-00214
|
[1] |
LEVER;STAND TILT.
|
|
| 33. |
822-00080
|
[1] |
BOOTS
|
|
| 34. |
133-00208A
|
[1] |
LEVER;ENGINE RPM
|
|
| 35. |
132-00021
|
[1] |
GRIP
|
|
| 36. |
195-02463A
|
[1] |
BRACKET;ACCEL
|
|
| 37. |
S0511653
|
[2] |
BOLT
|
|
| 38. |
S5010613
|
[2] |
WASHER
|
|
| 39. |
S5130703
|
[4] |
WASHER;SPRING
|
|
| 4. |
2114-1898D4
|
[10] |
WASHER
|
|
| 40. |
2114-1058D72
|
[4] |
WASHER
|
|
| 41. |
S4210733
|
[1] |
NUT;CASTLE
|
|
| 42. |
S5735481
|
[1] |
PIN;SPLIT
|
|
| 43. |
2158-1017D3
|
[1] |
PROTECTOR
|
|
| 49. |
2120-2166D8
|
[1] |
BOLT
|
|
| 50. |
139-00004A
|
[1] |
CABLE;CONTROL
|
|
| 50. |
139-00050
|
[1] |
CABLE;CONTROL
|
|
| 51. |
2197-1224
|
[1] |
BRACKET
|
|
| 51. |
195-03383A
|
[1] |
BRACKET
|
|
| 52. |
S0504853
|
[2] |
BOLT M6X1.0X20
|
|
| 52. |
S0508853
|
[2] |
. BOLT
|
|
| 53. |
S5102503
|
[2] |
. WASHER
|
|
| 54. |
S5010313
|
[2] |
WASHER
|
|
| 55. |
2138-9006B
|
[1] |
JOINT,BALL
|
|
| 56. |
S5102203
|
[1] |
WASHER
|
|
| 57. |
S4012233
|
[1] |
NUT
|
|
| 6. |
195-02417A
|
[1] |
BRACKET;LH
|
|
| 6. |
195-02417B
|
[1] |
BRACKET;LH
|
|
| 8. |
2120-2166D5
|
[12] |
BOLT
|
|
| 9. |
2114-1898D2
|
[12] |
WASHER
|
|
