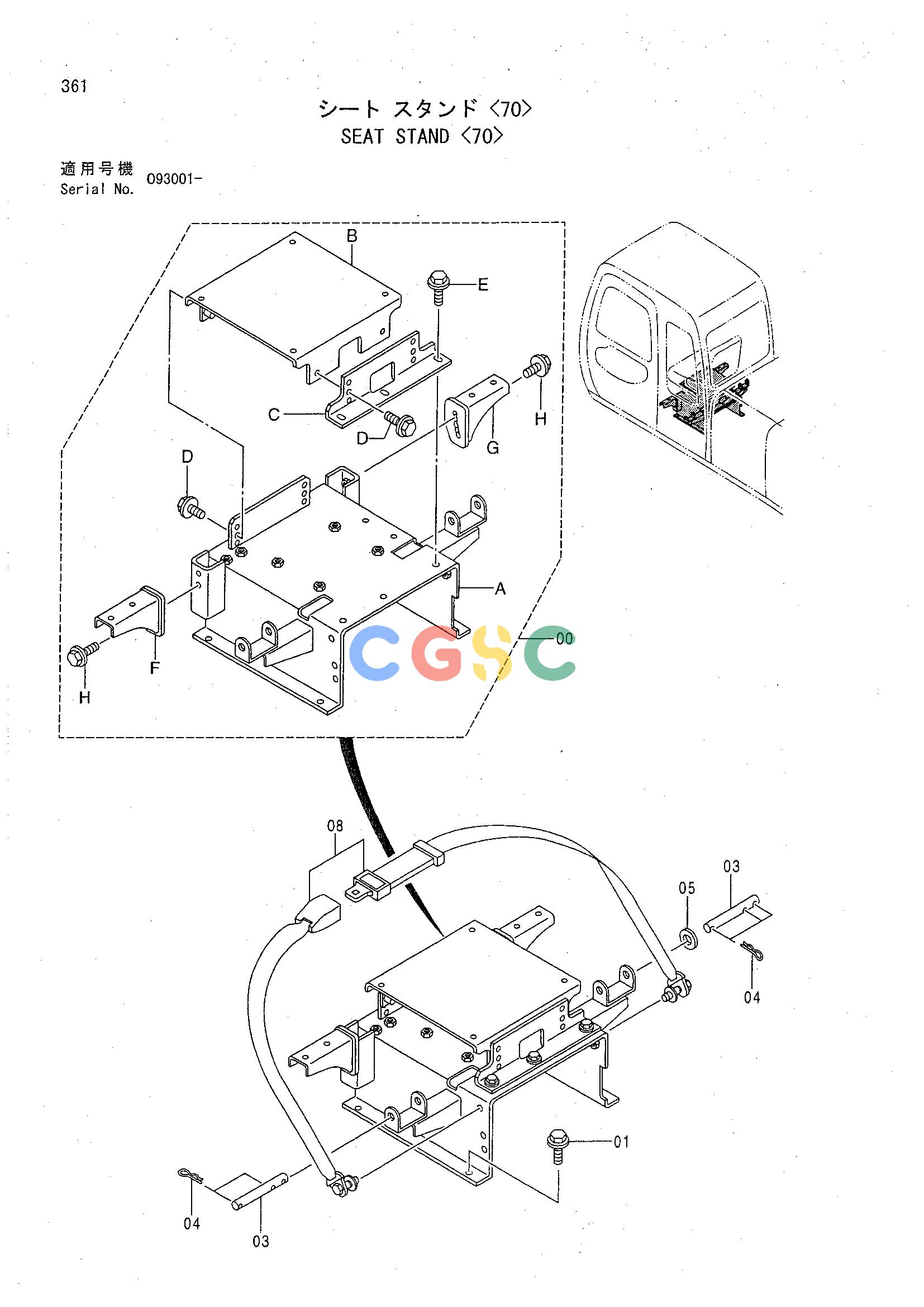

日立零件查询（CHR70）SEAT STAND <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
382 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 9156077 | [1] | STAND | |
| 00A. | 6015994 | [1] | STAND | |
| 00B. | 7031978 | [1] | STAND | |
| 00C. | 3077263 | [1] | BRACKET | |
| 00D. | J011025 | [4] | BOLT;SEMS | |
| 00D. | J271025 | [4] | BOLT;SEMS | TJ901025 |
| 00D. | J271025 | [4] | BOLT;SEMS | TJ222010 |
| 00E. | J021030 | [3] | BOLT;SEMS | |
| 00E. | J271030 | [3] | BOLT;SEMS | TJ901030 |
| 00E. | J271030 | [3] | BOLT;SEMS | TJ222010 |
| 00F. | 8061123 | [1] | BRACKET (L) | |
| 00G. | 8061563 | [1] | BRACKET (R) | |
| 00H. | J021025 | [4] | BOLT;SEMS | |
| 00H. | J271025 | [4] | BOLT;SEMS | TJ901025 |
| 00H. | J271025 | [4] | BOLT;SEMS | TJ222010 |
| 01. | J011025 | [4] | BOLT;SEMS | |
| 01. | J271025 | [4] | BOLT;SEMS | TJ901025 |
| 01. | J271025 | [4] | BOLT;SEMS | TJ222010 |
| 03. | 4341890 | [2] | PIN | |
| 04. | 4077248 | [5] | PIN;LOCK | |
| 05. | 4018545 | [1] | WASHER | |
| 08. | 4372253 | [1] | SEAT-BELT | |
