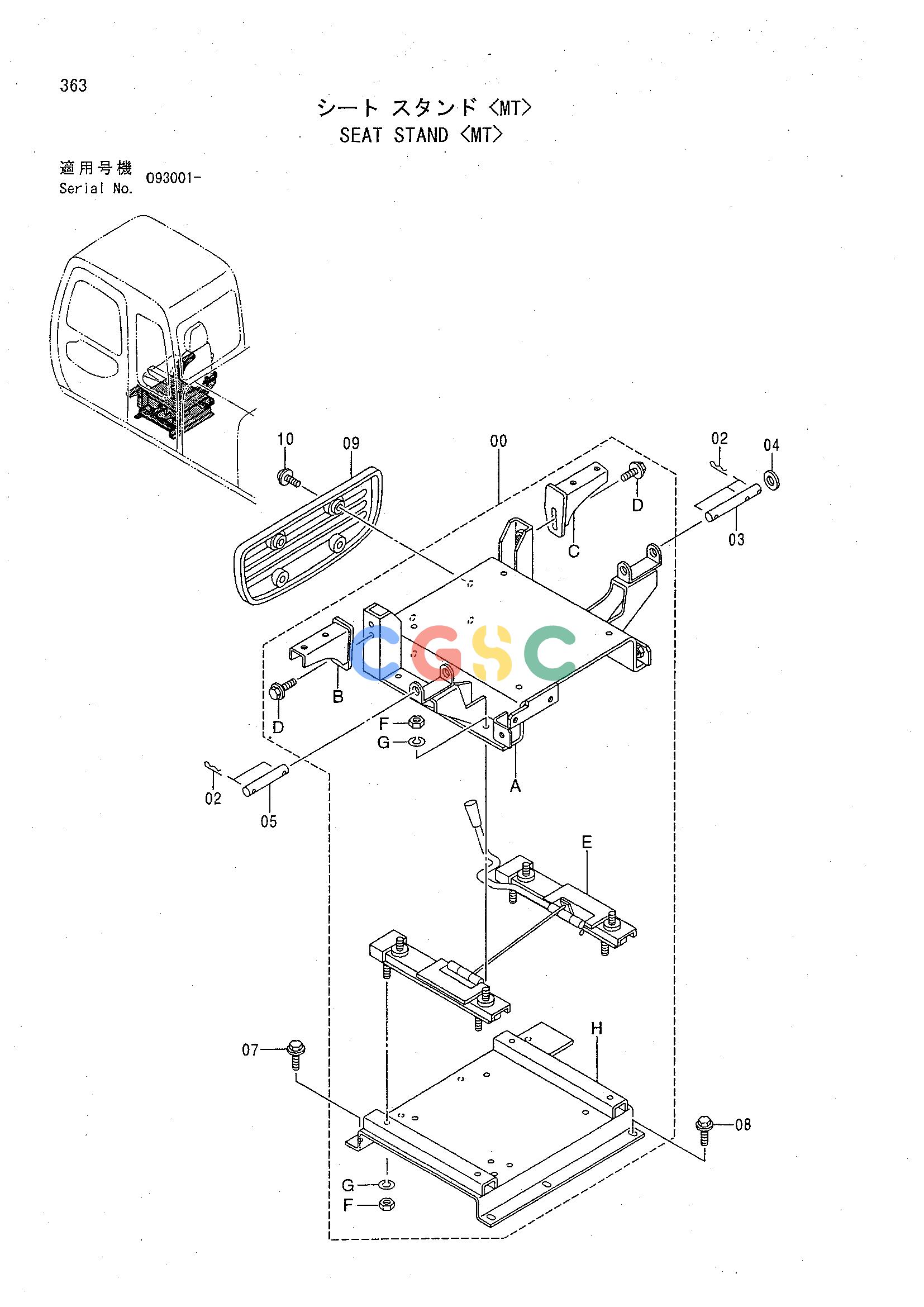

日立零件查询（CHR70）SEAT STAND <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
920 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 9170922 | [1] | CARRIER ASS'Y | |
| 00A. | 6016639 | [1] | CARRIER | |
| 00B. | 8061123 | [1] | BRACKET | |
| 00C. | 8061563 | [1] | BRACKET | |
| 00D. | J021025 | [4] | BOLT;SEMS | |
| 00D. | J271025 | [4] | BOLT;SEMS | TJ901025 |
| 00D. | J271025 | [4] | BOLT;SEMS | TJ222010 |
| 00E. | 4382794 | [1] | SLIDER | |
| 00F. | J952010 | [8] | NUT | |
| 00G. | A590910 | [8] | WASHER;SPRING | |
| 00H. | 8061040 | [1] | STAND | |
| 02. | 4372109 | [5] | PIN;LOCK | |
| 03. | 4341890 | [1] | PIN | |
| 04. | 4018545 | [1] | WASHER | |
| 05. | 4376707 | [1] | PIN | |
| 07. | J011025 | [4] | BOLT;SEMS | |
| 07. | J271025 | [4] | BOLT;SEMS | TJ901025 |
| 07. | J271025 | [4] | BOLT;SEMS | TJ222010 |
| 08. | J021025 | [3] | BOLT;SEMS | |
| 08. | J271025 | [3] | BOLT;SEMS | TJ901025 |
| 08. | J271025 | [3] | BOLT;SEMS | TJ222010 |
| 09. | 3072610 | [1] | COVER | |
| 10. | J680625 | [4] | SCREW;SEMS | |
