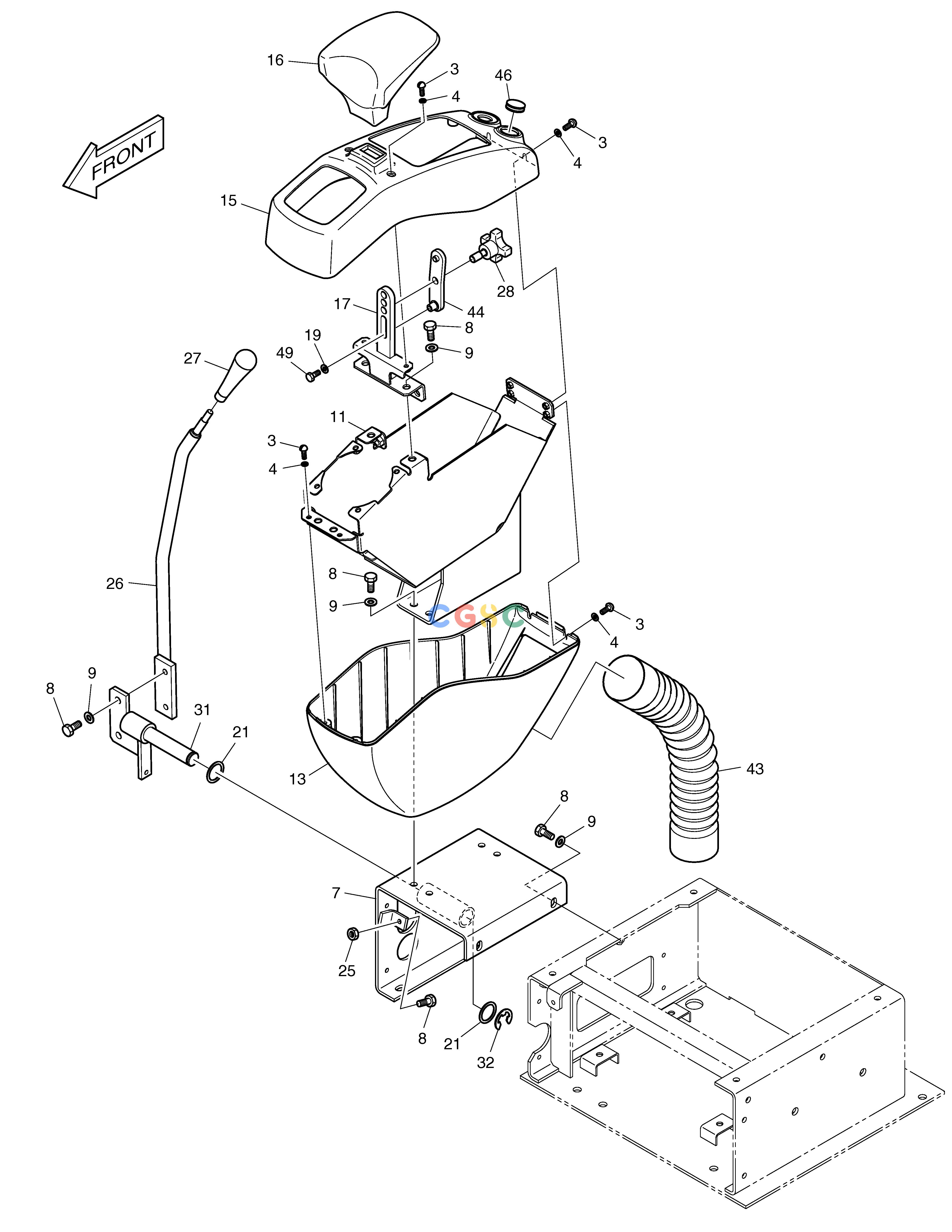

斗山零件查询CONTROL STAND ASS'Y - R.H. SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
999 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
195-02437C
|
[-] |
STAND ASS'Y
|
|
| -. |
195-02437E
|
[-] |
STAND ASS'Y
|
|
| -. |
195-02437H
|
[-] |
STAND ASS'Y
|
|
| 11. |
195-02450A
|
[1] |
BRACKET; SRAND RH
|
|
| 13. |
195-02445
|
[1] |
CASE;LOWER
|
|
| 15. |
195-02444
|
[1] |
CASE;UPPER(RH)
|
|
| 16. |
161-00541
|
[1] |
REAT;ARM
|
|
| 17. |
195-02435A
|
[1] |
BRACKET;ARM REST
|
|
| 19. |
2114-1898D3
|
[1] |
WASHER
|
|
| 21. |
2114-1059D31
|
[2] |
SHIM
|
|
| 25. |
2121-1311D2
|
[2] |
NUT
|
|
| 26. |
133-00203A
|
[1] |
LEVER;DOZER
|
|
| 27. |
2132-1141A
|
[1] |
KNOB
|
|
| 28. |
4132-1139
|
[1] |
KNOB ASS'Y
|
|
| 3. |
2120-2166D28
|
[10] |
. BOLT
|
|
| 31. |
354-00010A
|
[1] |
SHAFT;DOZER LEVER
|
|
| 32. |
S6541500
|
[1] |
. RING;RETAINING
|
|
| 4. |
2114-1898D4
|
[10] |
WASHER
|
|
| 43. |
2158-1017D3
|
[1] |
PROTECTOR
|
|
| 44. |
191-02717
|
[1] |
PLATE;ARM REST(RH)
|
|
| 46. |
K1026510
|
[1] |
CAP;RUBBER
|
|
| 49. |
2120-2166D28
|
[1] |
. BOLT
|
|
| 7. |
195-02421B
|
[1] |
BRACKET;RH
|
|
| 8. |
2120-2166D5
|
[16] |
BOLT
|
|
| 9. |
2114-1898D2
|
[14] |
WASHER
|
|
