纽荷兰零件查询(FD14E) - CRAWLER DOZER (93.4811[005]) - HYDRAULIC TILT (HA)-CHECK VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
515 次

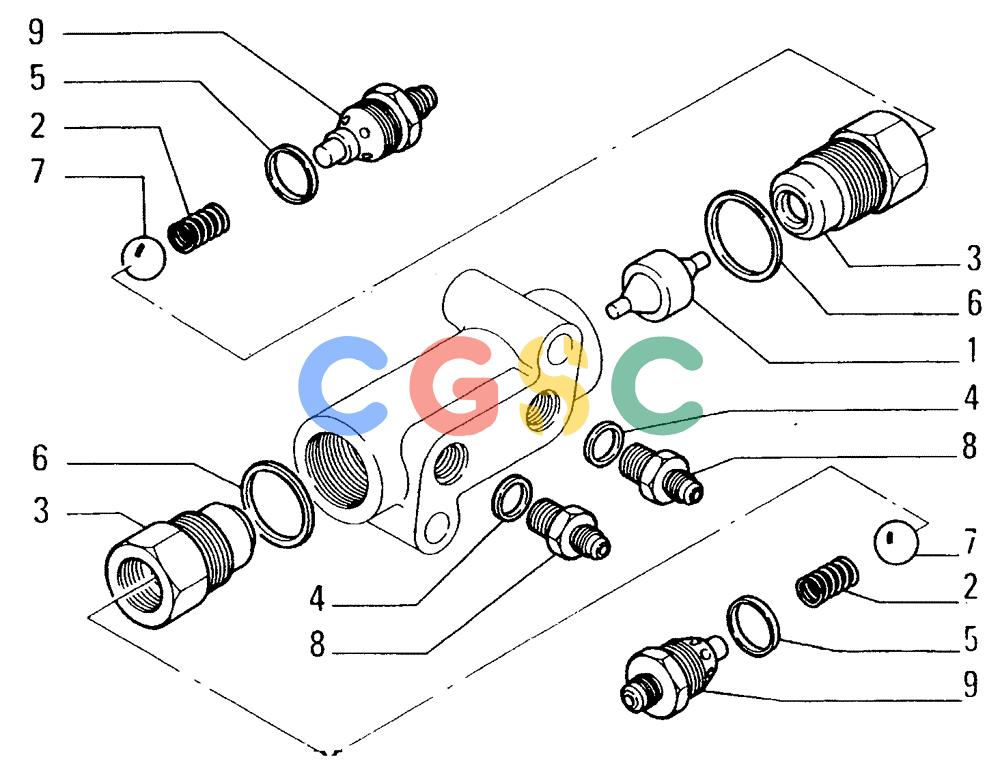

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8288932 | [1] | PLUNGER | LEC |
| 2. | 8288935 | [2] | SPRING | LEC |
| 3. | 8293493 | [2] | BALL SOCKET | LECSEAT |
| 4. | 14457180 | [2] | O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro | TTF0-RING -113, 70 Duro, .549" ID x .103" Thk Superseded by part number: 5146468 |
| 5. | 14457980 | [2] | O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro | TTF0-RING -121, 70 Duro, 1.049" ID x .103" Thk |
| 6. | 14458380 | [2] | O-RING,0.103" Thk x 1.299" ID, -125, Cl 5, 75 Duro | JES0-RING 2,62x32,99 Superseded by part number: 130333 |
| 7. | 20063530 | [2] | BALL | MKT19,051 Superseded by part number: 20419480 |
| 8. | 76011720 | [2] | HYD CONNECTOR | LECFITTING |
| 9. | 76011721 | [2] | PLUG | LECFITTING |
