纽荷兰零件查询(FD14E) - CRAWLER DOZER (93.4811[006]) - HYDRAULIC TILT (HA)-CYLINDER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
801 次

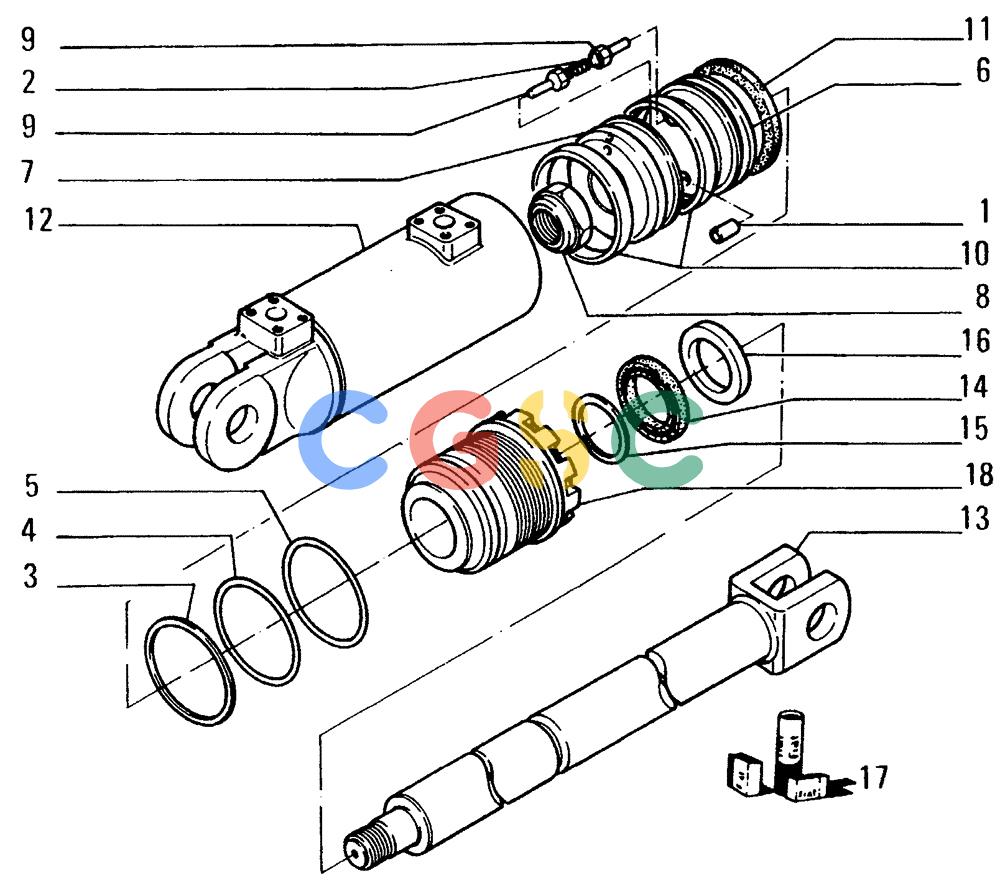

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8280834 | [1] | DOWEL | LEC |
| 2. | 8293426 | [1] | SPRING | LEC |
| 3. | 8298055 | [1] | RING,103.8mm ID x 110mm OD x 6mm Thk | LEC |
| 4. | 14466080 | [1] | O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro | LEC0-RING 3,53x101,19 Superseded by part number: 87421147 |
| 5. | 14466380 | [1] | O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro | MKT0-RING 3,53x110,72 Superseded by part number: 14466381 |
| 6. | 76015052 | [1] | PISTON | LECHALF PISTON - FRONT |
| 7. | 76015053 | [1] | PISTON | LECHALF PISTON - REAR |
| 8. | 76015054 | [1] | NUT | LEC |
| 9. | 76015055 | [2] | HYDRAULIC VALVE | LECVALVE |
| 10. | 76015056 | [2] | GUIDE RING | LECRING |
| 11. | 76015057 | [1] | SEAL | LECSEAL |
| 12. | 79037027 | [1] | BARREL | LECTUBE |
| 13. | 79037030 | [1] | ROD | LEC |
| 14. | 79065566 | [1] | O-RING,63mm ID x 78mm OD x 10mm Thk | LEC0-RING |
| 15. | 79065567 | [1] | GASKET,62.5mm ID x 77mm OD x 3mm Thk | LEC0-RING |
| 16. | 79065568 | [1] | SEAL,63mm ID x 78.25mm OD x 7.5mm Thk | LEC0-RING |
| 17. | 79071464 | [1] | SEAL | LECKIT SEE PAGE 32 |
| 18. | 79092232 | [1] | CYLINDER HEAD | LECBOTTOM PLATE - FRONT Superseded by part number: 79100814, 79103649 |
