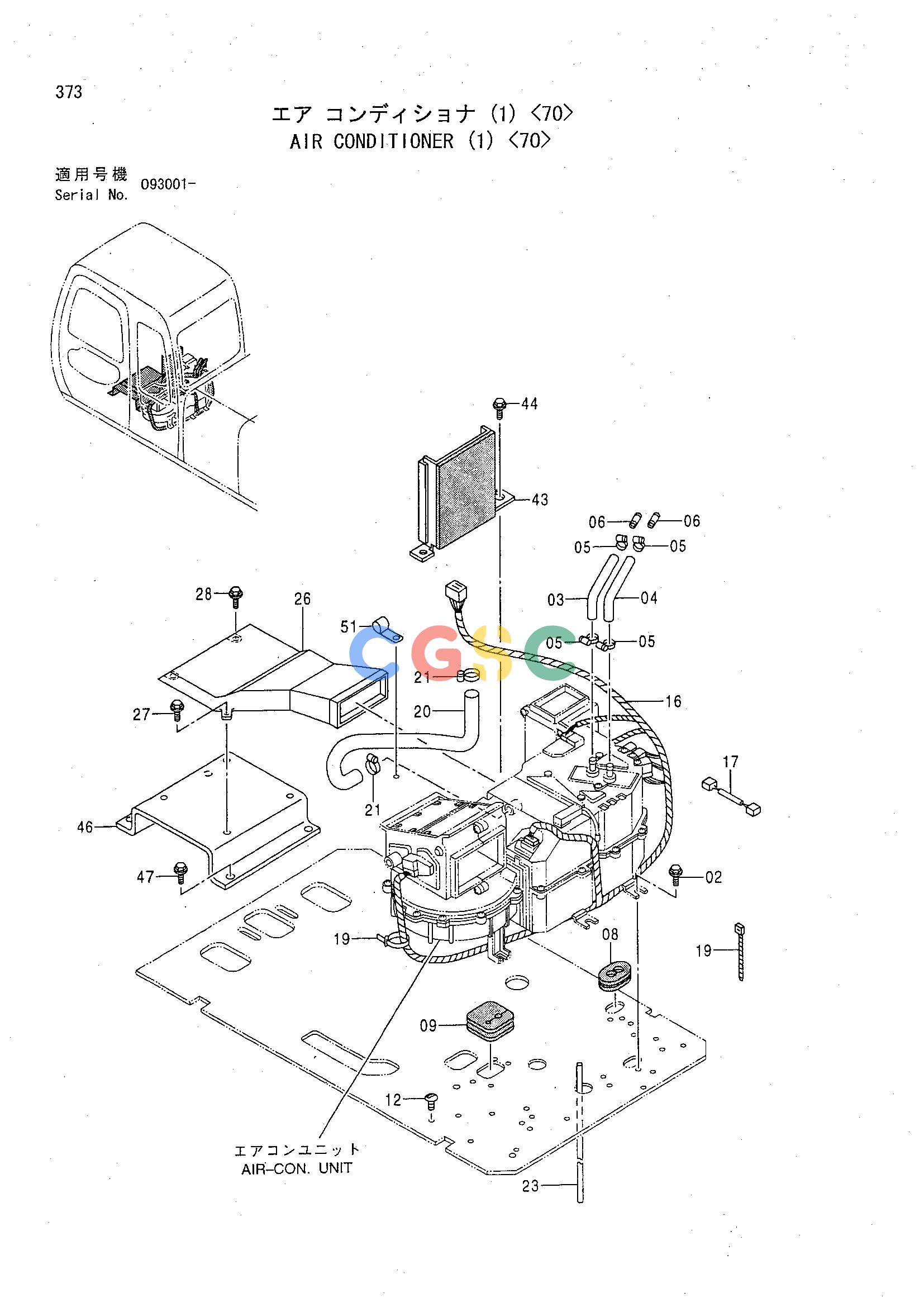

日立零件查询（CHR70）AIR CONDITIONER (1) <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
174 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | J021025 | [7] | BOLT;SEMS | |
| 02. | J271025 | [7] | BOLT;SEMS | TJ901025 |
| 02. | J271025 | [7] | BOLT;SEMS | TJ222010 |
| 03. | 4366623 | [1] | HOSE;WATER | |
| 04. | 4344638 | [1] | HOSE;WATER | |
| 05. | 4514699 | [4] | CLAMP;HOSE | |
| 06. | 4341800 | [2] | PIPE | |
| 08. | 4276794 | [1] | BUSHING;RUBBER | |
| 09. | 4351010 | [1] | BUSHING;RUBBER | |
| 12. | 4280359 | [4] | CLIP | |
| 16. | 2037705 | [1] | HARNESS;WIRE | |
| 17. | 4384878 | [1] | HARNESS;WIRE | |
| 19. | 4055312 | [4] | CLIP;BAND | |
| 20. | 4376279 | [1] | HOSE | |
| 21. | 4011675 | [2] | CLAMP;HOSE | |
| 23. | 4366644 | [2] | HOSE | |
| 26. | 4350243 | [1] | DUCT | |
| 27. | J020820 | [2] | BOLT;SEMS | |
| 27. | J260820 | [2] | BOLT;SEMS | TJ900820 |
| 27. | J260820 | [2] | BOLT;SEMS | TA590108 |
| 28. | J050820 | [2] | BOLT;SEMS | |
| 28. | J780820 | [2] | BOLT;SOCKET | |
| 44. | J021025 | [1] | BOLT;SEMS | |
| 44. | J271025 | [1] | BOLT;SEMS | TJ901025 |
| 44. | J271025 | [1] | BOLT;SEMS | TJ222010 |
| 43. | 8068464 | [1] | COVER | |
| 44. | J021025 | [1] | BOLT;SEMS | |
| 44. | J271025 | [1] | BOLT;SEMS | TJ901025 |
| 44. | J271025 | [1] | BOLT;SEMS | TJ222010 |
| 46. | 7031979 | [1] | BRACKET | |
| 47. | J011025 | [4] | BOLT;SEMS | |
| 47. | J271025 | [4] | BOLT;SEMS | TJ901025 |
| 47. | J271025 | [4] | BOLT;SEMS | TJ222010 |
| 51. | 4190275 | [1] | CLIP | |
