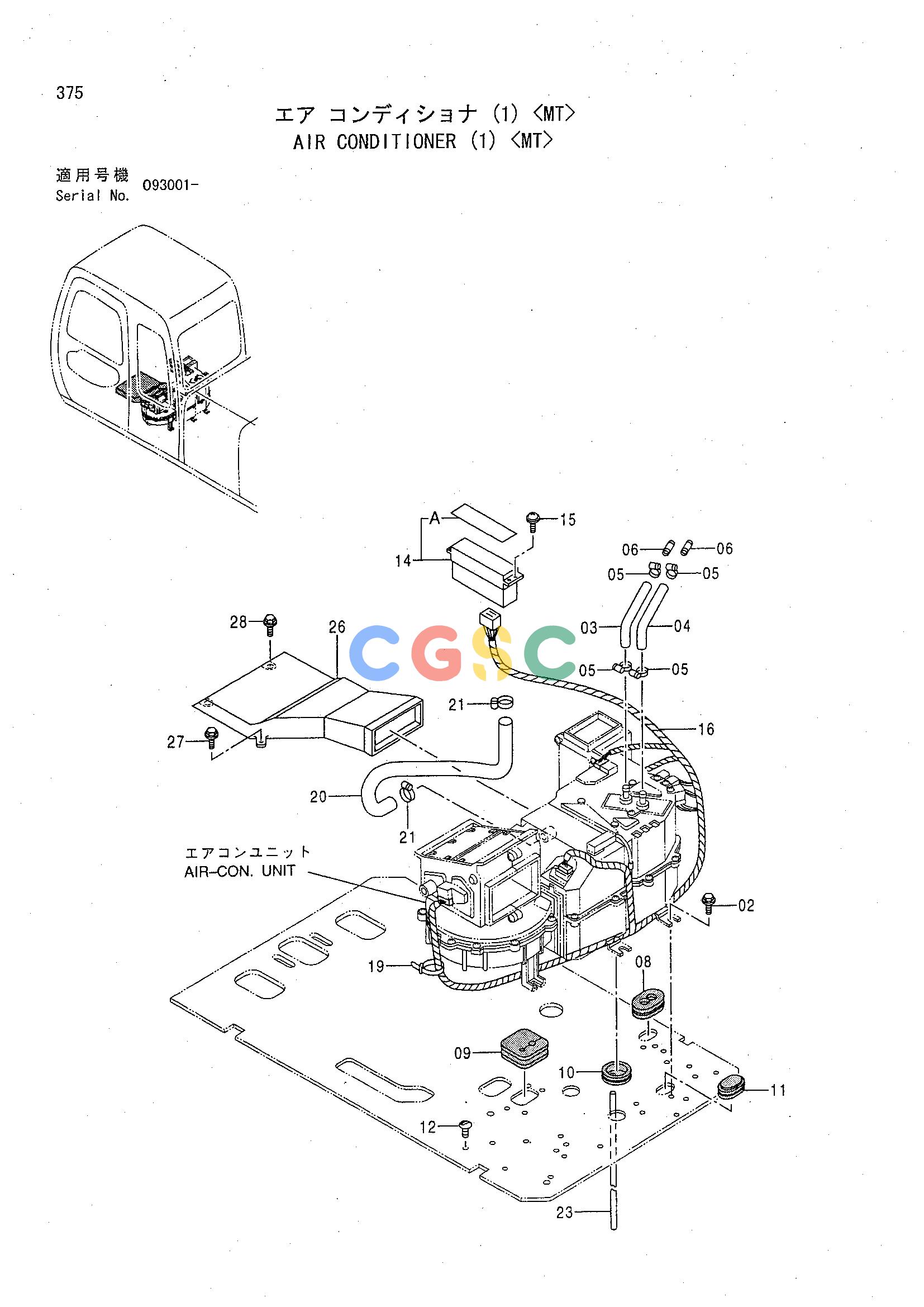

日立零件查询（CHR70）AIR CONDITIONER (1) <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
132 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | J021030 | [7] | BOLT;SEMS | |
| 02. | J271030 | [7] | BOLT;SEMS | TJ901030 |
| 02. | J271030 | [7] | BOLT;SEMS | TJ222010 |
| 03. | 4366623 | [1] | HOSE;WATER | |
| 04. | 4344638 | [1] | HOSE;WATER | |
| 05. | 4514699 | [4] | CLAMP;HOSE | |
| 06. | 4341800 | [2] | PIPE | |
| 08. | 4276794 | [1] | BUSHING;RUBBER | |
| 09. | 4351010 | [1] | BUSHING;RUBBER | |
| 10. | 4361147 | [2] | BUSHING;RUBBER | |
| 11. | 9738084 | [1] | BUSHING;RUBBER | |
| 12. | 4280359 | [18] | CLIP | |
| 14. | 4405163 | [1] | CONTROLLER | |
| 14A. | 4431043 | [1] | PANEL | |
| 15. | J460514 | [4] | SCREW;SEMS | |
| 16. | 2041828 | [1] | HARNESS;WIRE | |
| 19. | 4055312 | [7] | CLIP;BAND | |
| 20. | 4376279 | [1] | HOSE | |
| 21. | 4011675 | [2] | CLAMP;HOSE | |
| 23. | 4366644 | [2] | HOSE | |
| 26. | 4350243 | [1] | DUCT | |
| 27. | J020820 | [2] | BOLT;SEMS | |
| 27. | J260820 | [2] | BOLT;SEMS | TJ900820 |
| 27. | J260820 | [2] | BOLT;SEMS | TA590108 |
| 28. | J050820 | [2] | BOLT;SEMS | |
| 28. | J780820 | [2] | BOLT;SOCKET | |
| 44. | J021025 | [1] | BOLT;SEMS | |
