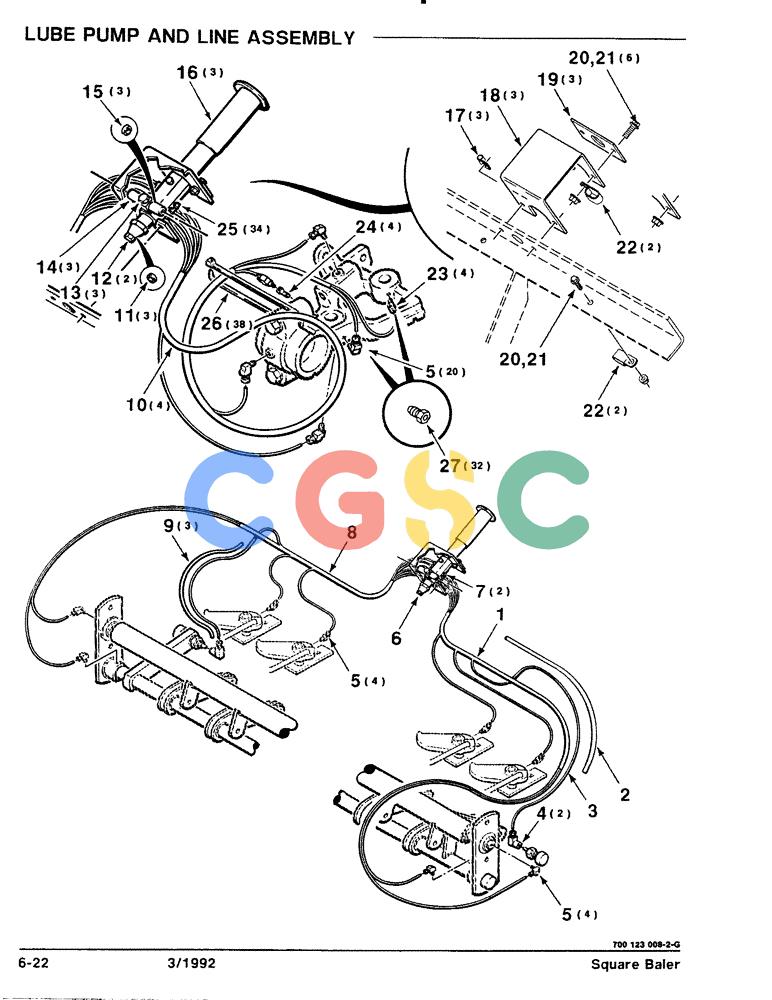

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (6-22) - LUBE PUMP AND LINE ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
640 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700123461
|
[1] |
WIRE HARNESS
|
CAS
HARNESS - LEFT SIDE
|
| 2. |
700123362
|
[1] |
FLEXIBLE SHEATH
|
CAS
1/2 COVERING - PROTECTIVE (10 Foot Bulk)
|
| 3. |
700113359
|
[9] |
TUBE,0.125" OD, 3048 mm Length
|
CAS
TUBING - NYLON (10 Foot Bulk)
|
| 4. |
700706279
|
[2] |
COUPLING, QUICK, FEM
|
CAS
COUPLER - SNAP ON
|
| 5. |
51200288
|
[28] |
ELBOW
|
CAS
(Includes Item 27)
|
| 6. |
700710976
|
[1] |
PLUG
|
CAS
- STOP
|
| 7. |
700710975
|
[2] |
PLUG
|
CAS
|
| 8. |
700123462
|
[1] |
HARNESS
|
HFI
- RIGHT SIDE
|
| 9. |
700113360
|
[3] |
FLEXIBLE SHEATH
|
CAS
1/4 COVERING - PROTECTIVE (10 Foot Bulk)
|
| 10. |
700123460
|
[4] |
WIRE HARNESS
|
CAS
HARNESS - KNOTTER
|
| 11. |
700706540
|
[3] |
COPPER WASHER
|
CAS
GASKET - PLUG
|
| 12. |
700706539
|
[2] |
PLUG
|
CAS
- STOP
|
| 13. |
700706543
|
[3] |
3 WAY CONNECTION
|
CAS
STUD - TEE
|
| 14. |
700706542
|
[3] |
3 WAY CONNECTION
|
CAS
NIPPLE - TEE
|
| 15. |
700706541
|
[3] |
COPPER WASHER
|
CAS
GASKET - NIPPLE
|
| 16. |
700706276
|
[3] |
SMALL PUMP
|
CAS
PUMP - MULTILUBER
|
| 17. |
751321
|
[3] |
CLAMP
|
CAS
1/4 LINE CLAMP Superseded by part number: 80272535
|
| 18. |
700113353
|
[3] |
SUPPORT
|
CAS
- PUMP
|
| 19. |
700113361
|
[3] |
SUPPORT
|
CAS
PLATE - SUPPORT, PUMP
|
| 20. |
7883275
|
[7] |
SCREW,Hex Washer, 1/4" - 20 x 3/4"
|
CAS
1/4-20 X 3/4 HWHMS
|
| 21. |
1703354
|
[7] |
NUT
|
IH
1/4-20 HFTLN GR/G
|
| 22. |
700711751
|
[4] |
CLAMP
|
CAS
|
| 23. |
8746778
|
[4] |
TUBE NUT
|
CAS
CONNECTOR - STRAIGHT (Includes Item 27)
|
| 24. |
700706280
|
[4] |
HYD CONNECTOR
|
CAS
EXTENSION - ZERK
|
| 25. |
700706277
|
[34] |
TUBE NUT
|
CAS
- COMPRESSION
|
| 26. |
722470
|
[38] |
MOUNTING CLIP
|
CAS
TIE - NYLON Superseded by part number: 529070
|
| 27. |
700706898
|
[32] |
NUT
|
CAS
- COMPRESSION Superseded by part number: 219-302
|
