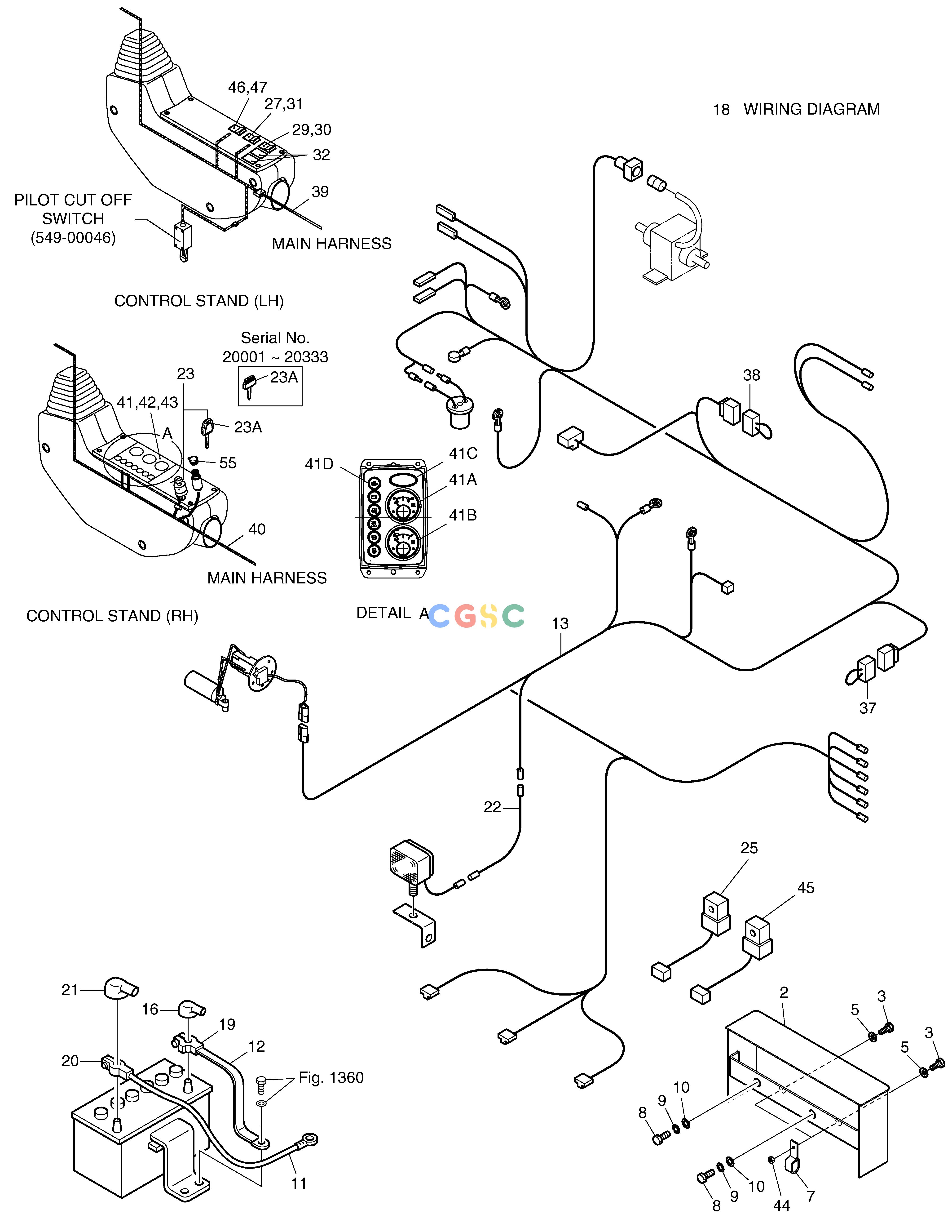

斗山零件查询ELECTRIC WIRING SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
977 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2500-7035C
|
[-] |
WIRING HARNESS
|
|
| -. |
2500-7035E
|
[-] |
WIRING HARNESS
|
|
| -. |
2500-7035J
|
[-] |
WIRING HARNESS
|
|
| 10. |
S5010513
|
[2] |
WASHER
|
|
| 11. |
2553-1275D38
|
[1] |
CABLE;BATT.-STARTER
|
|
| 12. |
2553-1275D39
|
[1] |
CABLE,EARTH
|
|
| 13. |
2530-1674H
|
[1] |
HARNESS;MAIN
|
|
| 13. |
2530-1674J
|
[1] |
HARNESS;MAIN
|
|
| 16. |
2160-1213
|
[1] |
CAP,BATT. TML(-)
|
|
| 18. |
599-00062A
|
[1] |
CIRCUIT DIAGRAM
|
|
| 18. |
599-00062B
|
[1] |
CIRCUIT DIAGRAM
|
|
| 19. |
2550-1014D2
|
[1] |
TERMINAL,BATTERY(-)
|
|
| 2. |
511-00010B
|
[1] |
BOX;ELECTRIC
|
|
| 2. |
511-00010C
|
[1] |
BOX;ELECTRIC
|
|
| 20. |
2550-1014D1
|
[1] |
TERMINAL,BATTERY(+)
|
|
| 21. |
2160-1212
|
[1] |
CAP,BATT. TML(+)
|
|
| 22. |
530-00357
|
[1] |
HARNESS;WORKING LAMP
|
|
| 23. |
2549-1152
|
[1] |
SWITCH;STARTER
|
2549-1152A
|
| 23. |
2549-1152A
|
[1] |
SWITCH;STARTER
|
|
| 23A. |
2172-1134
|
[2] |
KEY;STARTER SWITCH
|
2172-1134A
|
| 23A. |
2172-1134A
|
[2] |
KEY;STARTER SWITCH
|
|
| 25. |
2530-1769
|
[1] |
HARNESS;LAMP RELAY
|
|
| 27. |
2549-9115
|
[1] |
SWITCH;ROCKER(12V)
|
|
| 29. |
2190-2036D13
|
[1] |
INSERT;HIGH SPEED
|
|
| 3. |
2120-2166D5
|
[2] |
BOLT
|
|
| 30. |
2549-9115
|
[1] |
SWITCH;ROCKER(12V)
|
|
| 31. |
2190-2036D4
|
[1] |
INSERT;LAMP
|
|
| 32. |
2621-9002
|
[2] |
COVER
|
|
| 37. |
2527-1026
|
[1] |
LINK;FUSIBLE 35A
|
|
| 38. |
2527-1027
|
[1] |
FUSIBLE LINK
|
|
| 39. |
530-00171E
|
[1] |
HARNESS;STAND(LH)
|
|
| 40. |
530-00172B
|
[1] |
HARNESS;STAND(RH)
|
|
| 40. |
530-00172C
|
[1] |
HARNESS;STAND(RH)
|
|
| 41. |
539-00063A
|
[1] |
PANEL;GAUGE
|
|
| 41A. |
528-00045
|
[1] |
GAUGE;WATER TEMP
|
|
| 41B. |
528-00046
|
[1] |
GAUGE;FUEL
|
|
| 41C. |
2528-9040
|
[1] |
METER;HOUR
|
|
| 41D. |
515-00001
|
[8] |
BULB 12V 1.2W
|
|
| 42. |
S3450843
|
[4] |
SCREW M5X0.8X14
|
|
| 43. |
S5000213
|
[4] |
. WASHER
|
|
| 44. |
S4012533
|
[2] |
NUT
|
|
| 45. |
530-00419
|
[1] |
HARNESS;PILOT CUT OFF RELAY
|
|
| 46. |
549-00041
|
[1] |
SWITCH;ROCKER
|
|
| 47. |
2190-2036D17
|
[1] |
INSERT;PILOT CUT OFF
|
|
| 5. |
2114-1898D2
|
[2] |
WASHER
|
|
| 55. |
2160-1218
|
[1] |
CAP
|
|
| 7. |
2124-1509D5
|
[2] |
CLIP D36/M8
|
|
| 8. |
S0508653
|
[2] |
BOLT
|
|
| 9. |
S5102503
|
[2] |
. WASHER
|
|
