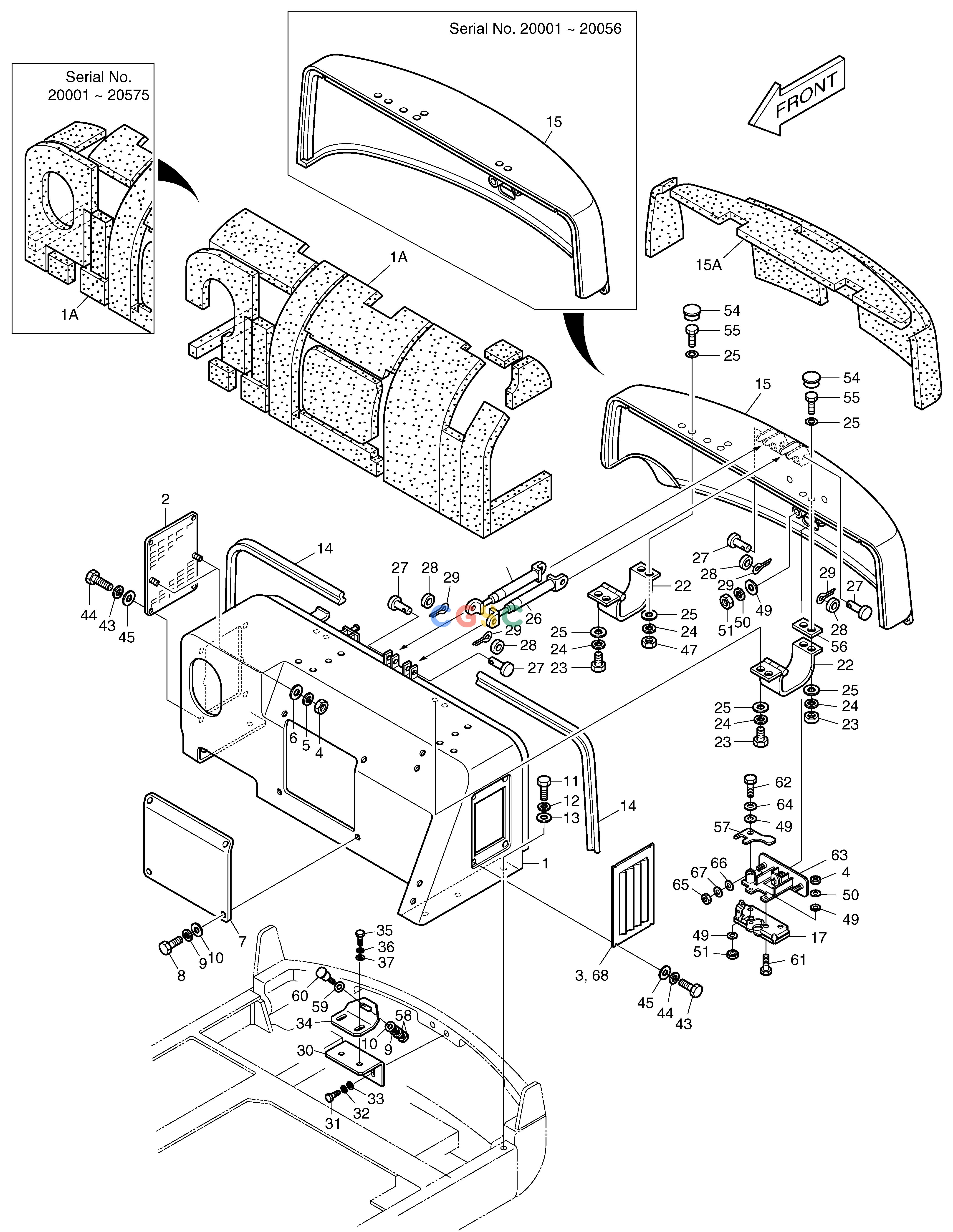

斗山零件查询ENGINE COVER SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
674 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-00952
|
[-] |
BONNET & ARCH ASS'Y
|
|
| -. |
621-03704A
|
[-] |
BONNET & ARCH ASS'Y
|
|
| 1. |
2621-3266J
|
[1] |
ARCH ASS'Y
|
2621-3266K
|
| 1. |
2621-3266K
|
[1] |
ARCH ASS'Y
|
|
| 1. |
621-03703A
|
[1] |
ARCH ASS'Y
|
|
| 10. |
S5010513
|
[5] |
WASHER
|
|
| 11. |
S0560453
|
[5] |
BOLT M12X1.75X35
|
|
| 12. |
S5102703
|
[5] |
WASHER
|
|
| 13. |
S5010713
|
[5] |
WASHER;PLAIN
|
|
| 14. |
2160-1023
|
[2] |
. TRIM;RUBBER
|
|
| 15. |
2627-1163B
|
[1] |
BONNET ASS'Y
|
|
| 15. |
624-00067A
|
[1] |
BONNET ASS'Y
|
624-00067B
|
| 15. |
624-00067B
|
[1] |
BONNET ASS'Y
|
|
| 15A. |
K1009967
|
[1] |
SPONGE ASS'Y
|
|
| 17. |
2143-1003
|
[1] |
LATCH
|
|
| 1A. |
2161-2319
|
[1] |
FORM ASS'Y
|
2161-2319A
|
| 1A. |
2161-2319A
|
[1] |
FORM ASS'Y
|
|
| 1A. |
161-00659A
|
[1] |
FORM ASS'Y
|
|
| 2. |
2621-3267B
|
[1] |
COVER;R.H
|
|
| 22. |
2171-1070
|
[2] |
HINGE
|
|
| 23. |
S0508853
|
[4] |
. BOLT
|
|
| 24. |
S5102503
|
[8] |
. WASHER
|
|
| 25. |
2114-1058D29
|
[12] |
WASHER
|
|
| 26. |
440-00012
|
[2] |
SPRING;GAS
|
|
| 27. |
2123-2096A
|
[4] |
PIN
|
|
| 28. |
S5010513
|
[4] |
WASHER
|
|
| 29. |
S5735391
|
[4] |
PIN;SPLIT
|
|
| 3. |
2621-3268B
|
[1] |
COVER;SIDE(LH)-FOR CANOPY
|
|
| 30. |
2197-1216A
|
[1] |
BRACKET
|
|
| 31. |
S0508953
|
[2] |
BOLT M8X1.25X22
|
|
| 32. |
S5102503
|
[2] |
. WASHER
|
|
| 33. |
2114-1059D29
|
[2] |
WASHER
|
|
| 34. |
195-01016
|
[1] |
BRACKET
|
|
| 35. |
S0509053
|
[2] |
. BOLT
|
|
| 36. |
S5102503
|
[2] |
. WASHER
|
|
| 37. |
2114-1058D29
|
[2] |
WASHER
|
|
| 4. |
S4012333
|
[4] |
NUT
|
|
| 43. |
S0504653
|
[8] |
. BOLT
|
|
| 44. |
S5102303
|
[8] |
. WASHER
|
|
| 45. |
S5010313
|
[8] |
WASHER
|
|
| 47. |
S4012533
|
[4] |
NUT
|
|
| 49. |
S5010313
|
[3] |
WASHER
|
|
| 5. |
S5102303
|
[2] |
. WASHER
|
|
| 50. |
S5102303
|
[4] |
. WASHER
|
|
| 51. |
S4012333
|
[3] |
NUT
|
|
| 54. |
2160-1291
|
[4] |
CAP
|
|
| 55. |
S0509353
|
[4] |
BOLT M8X1.25X35
|
|
| 56. |
2114-1180D16
|
[2] |
SHIM
|
|
| 57. |
195-00280
|
[1] |
BRACKET
|
|
| 58. |
S4012533
|
[2] |
NUT
|
|
| 59. |
2114-1058D29
|
[1] |
WASHER
|
|
| 6. |
S5010313
|
[2] |
WASHER
|
|
| 60. |
2142-1094
|
[1] |
STRIKER
|
|
| 61. |
S0505353
|
[2] |
BOLT M6X1.0X35
|
|
| 62. |
S0553853
|
[1] |
BOLT M6X1.0X60
|
|
| 63. |
195-00283A
|
[1] |
BRACKET;LATCH
|
|
| 64. |
2114-1058D69
|
[1] |
WASHER
|
|
| 65. |
S4012633
|
[2] |
NUT
|
|
| 66. |
2114-1058D10
|
[2] |
WASHER
|
|
| 67. |
S5102603
|
[2] |
. WASHER
|
|
| 68. |
2627-1060A
|
[1] |
COVER;LOOVER
|
|
| 7. |
2621-3269C
|
[1] |
COVER;FRONT
|
2621-3269E
|
| 7. |
2621-3269E
|
[1] |
COVER;FRONT
|
|
| 8. |
S0509053
|
[4] |
. BOLT
|
|
| 9. |
S5102503
|
[5] |
. WASHER
|
|
