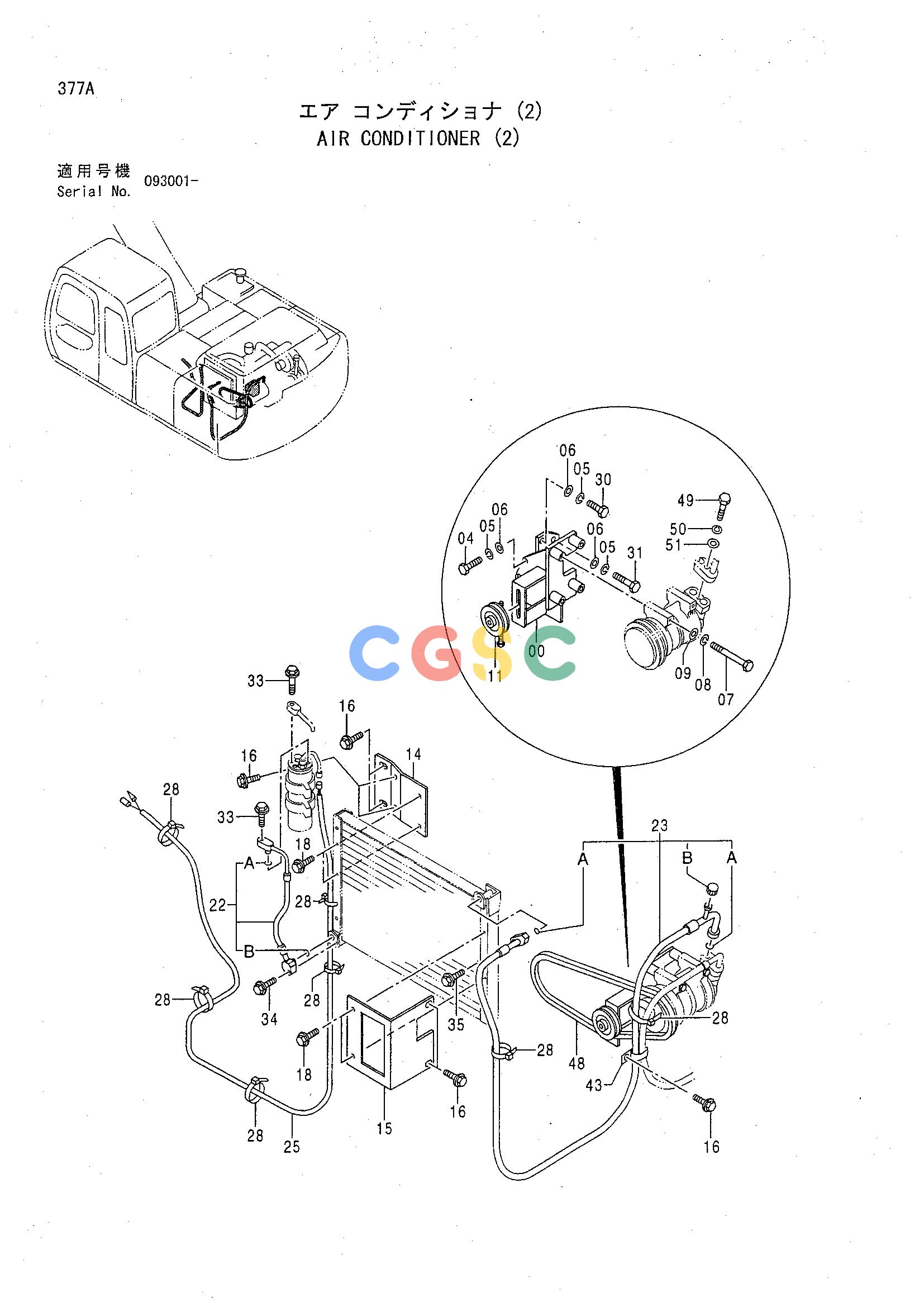

日立零件查询（CHR70）AIR CONDITIONER (2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
274 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 7029749 | [1] | BRACKET | |
| 04. | M111036 | [2] | BOLT | IJ241035 |
| 04. | J241035 | [2] | BOLT | |
| 05. | A590910 | [6] | WASHER;SPRING | |
| 06. | A590110 | [6] | WASHER;PLANE | |
| 07. | J900806 | [4] | BOLT | |
| 08. | A590908 | [4] | WASHER;SPRING | |
| 09. | A590108 | [4] | WASHER;PLANE | |
| 11. | 4346770 | [1] | PULLEY | |
| 14. | 9748707 | [1] | BRACKET | |
| 15. | 8069848 | [1] | BRACKET | |
| 16. | J020820 | [7] | BOLT;SEMS | |
| 16. | J260820 | [7] | BOLT;SEMS | TJ900820 |
| 16. | J260820 | [7] | BOLT;SEMS | TA590108 |
| 18. | J020850 | [4] | BOLT;SEMS | |
| 18. | J260850 | [4] | BOLT;SEMS | TJ900850 |
| 18. | J260850 | [4] | BOLT;SEMS | TA590108 |
| 22. | 4347676 | [1] | HOSE | |
| 22A. | 4370248 | [1] | O-RING | |
| 22B. | 4370246 | [1] | O-RING | |
| 23. | 4347677 | [1] | HOSE | |
| 23A. | 4370246 | [2] | O-RING | |
| 23B. | 4370247 | [1] | CAP | |
| 25. | 4346693 | [1] | HARNESS;WIRE | |
| 28. | 4055312 | [13] | CLIP;BAND | |
| 30. | M111028 | [2] | BOLT | IJ241030 |
| 30. | J241030 | [2] | BOLT | |
| 31. | M111056 | [2] | BOLT | IJ241055 |
| 31. | J241055 | [2] | BOLT | |
| 33. | J020630 | [2] | BOLT;SEMS | |
| 33. | J260630 | [2] | BOLT;SEMS | TJ900630 |
| 33. | J260630 | [2] | BOLT;SEMS | TA590106 |
| 34. | J020830 | [1] | BOLT;SEMS | |
| 34. | J260830 | [1] | BOLT;SEMS | TJ900830 |
| 34. | J260830 | [1] | BOLT;SEMS | TA590108 |
| 35. | J020825 | [1] | BOLT;SEMS | |
| 35. | J260825 | [1] | BOLT;SEMS | TJ900825 |
| 35. | J260825 | [1] | BOLT;SEMS | TA590108 |
| 43. | 4190265 | [1] | CLIP | |
| 48. | 4388139 | [1] | BELT;V | |
| 49. | M111040 | [1] | BOLT | IJ241040 |
| 49. | J241040 | [1] | BOLT | |
| 50. | A590910 | [1] | WASHER;SPRING | |
| 51. | A590110 | [1] | WASHER;PLANE | |
