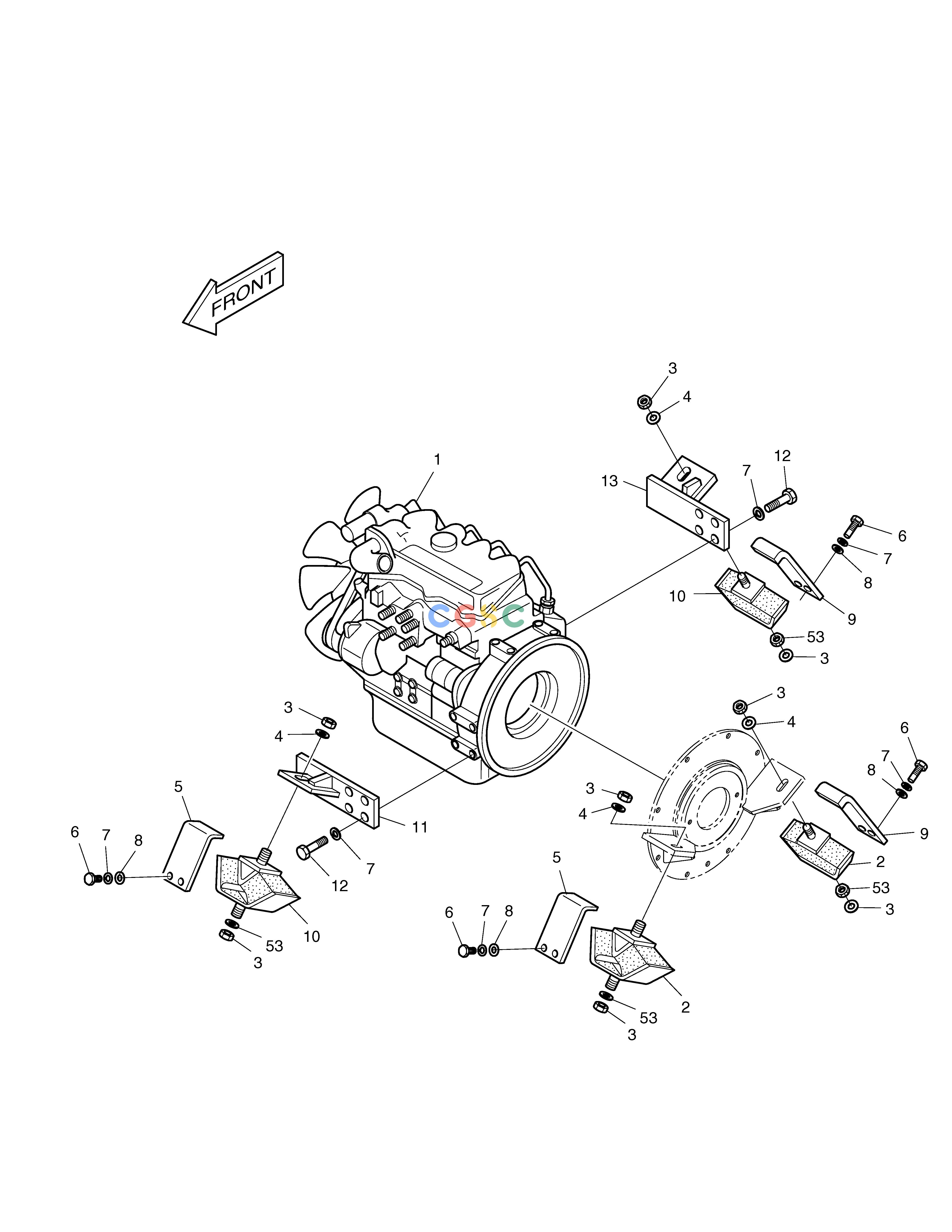

斗山零件查询ENGINE MOUNTING(1) - ENGINE SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
733 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
201-00086
|
[-] |
ENGINE MOUNT
|
|
| 1. |
201-00049C
|
[1] |
ENGINE ASS'Y
|
|
| 10. |
2161-9051
|
[2] |
RUBBER;MOUNTING
|
|
| 11. |
2197-1222
|
[1] |
BRACKET;ENGINE(B)
|
|
| 12. |
S0512253
|
[8] |
BOLT M10X1.5X30
|
|
| 13. |
2197-1221
|
[1] |
BRACKET;ENGINE(A)
|
|
| 2. |
41801-00130
|
[2] |
RUBBER;ABSORBER
|
|
| 3. |
S4012733
|
[8] |
NUT
|
|
| 4. |
2114-1058D46
|
[4] |
WASHER
|
|
| 5. |
2161-2051A
|
[2] |
STOPPER
|
|
| 53. |
S5102703
|
[4] |
WASHER
|
|
| 6. |
S0512053
|
[8] |
BOLT
|
|
| 7. |
S5102603
|
[18] |
. WASHER
|
|
| 8. |
S5010613
|
[8] |
WASHER
|
|
| 9. |
2161-2052A
|
[2] |
STOPPER(R.H)
|
|
