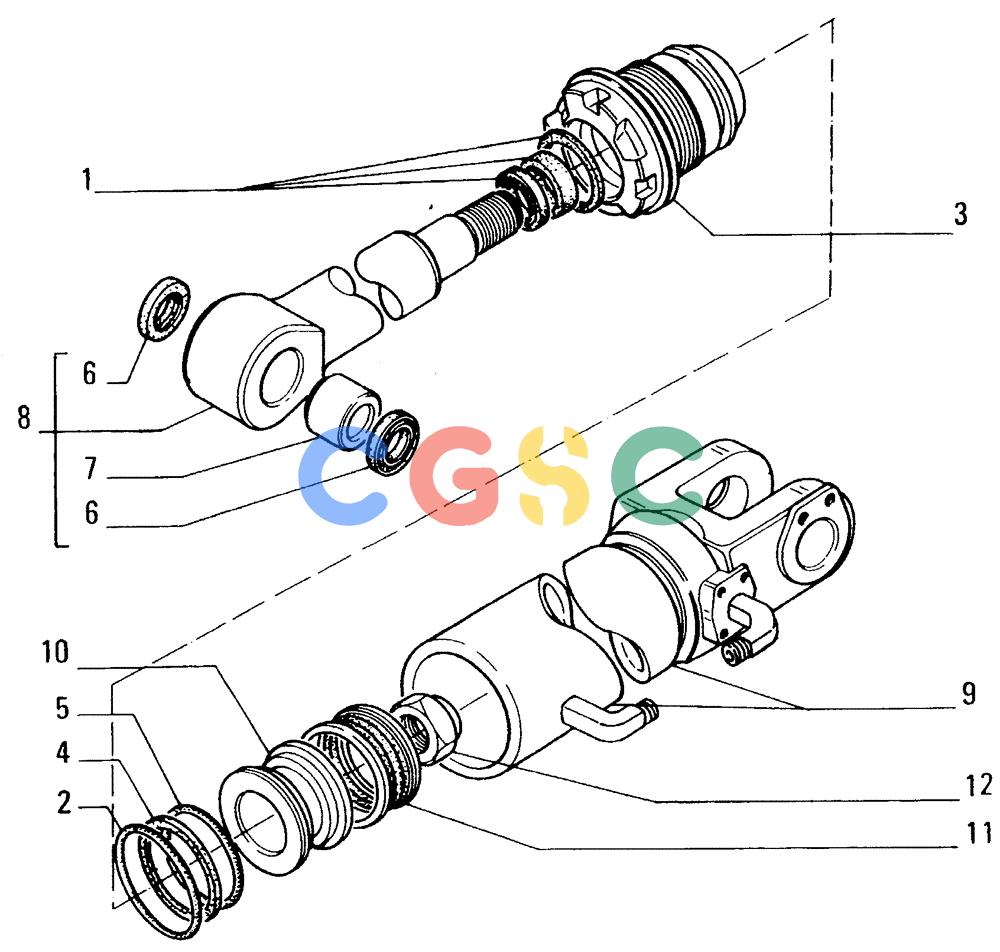

纽荷兰零件查询(FD14E) - CRAWLER DOZER (94.5220[005]) - RIPPER (PD)-CYLINDER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
376 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79071472 | [1] | SEAL | LECKIT |
| 2. | 14466080 | [1] | O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro | LEC0-RING 3,53x101.19 Superseded by part number: 87421147 |
| 3. | 79093023 | [1] | BASE PLATE | LECHEAD - FRONT |
| 4. | 79021911 | [1] | RING,94mm ID x 100mm OD x 6mm Thk | LEC |
| 5. | 14465880 | [1] | O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro | LEC-240, 70 Duro, 3.734" ID x .139" Thk (M94.84 ID x 3.53 Thk) Superseded by part number: 9840590 |
| 6. | 79065568 | [2] | SEAL,63mm ID x 78.25mm OD x 7.5mm Thk | LEC |
| 7. | 8299739 | [1] | BUSHING | LEC |
| 8. | 79074967 | [1] | ROD | LEC- ASSEMBLY |
| 9. | 79074969 | [1] | BARREL | LECTUBE |
| 10. | 79038366 | [1] | PISTON | LEC |
| 11. | 8291552 | [1] | SEAL,75mm ID x 98.05mm OD x 22.4mm Thk | BHB |
| 12. | 8297052 | [1] | NUT | BHB |
