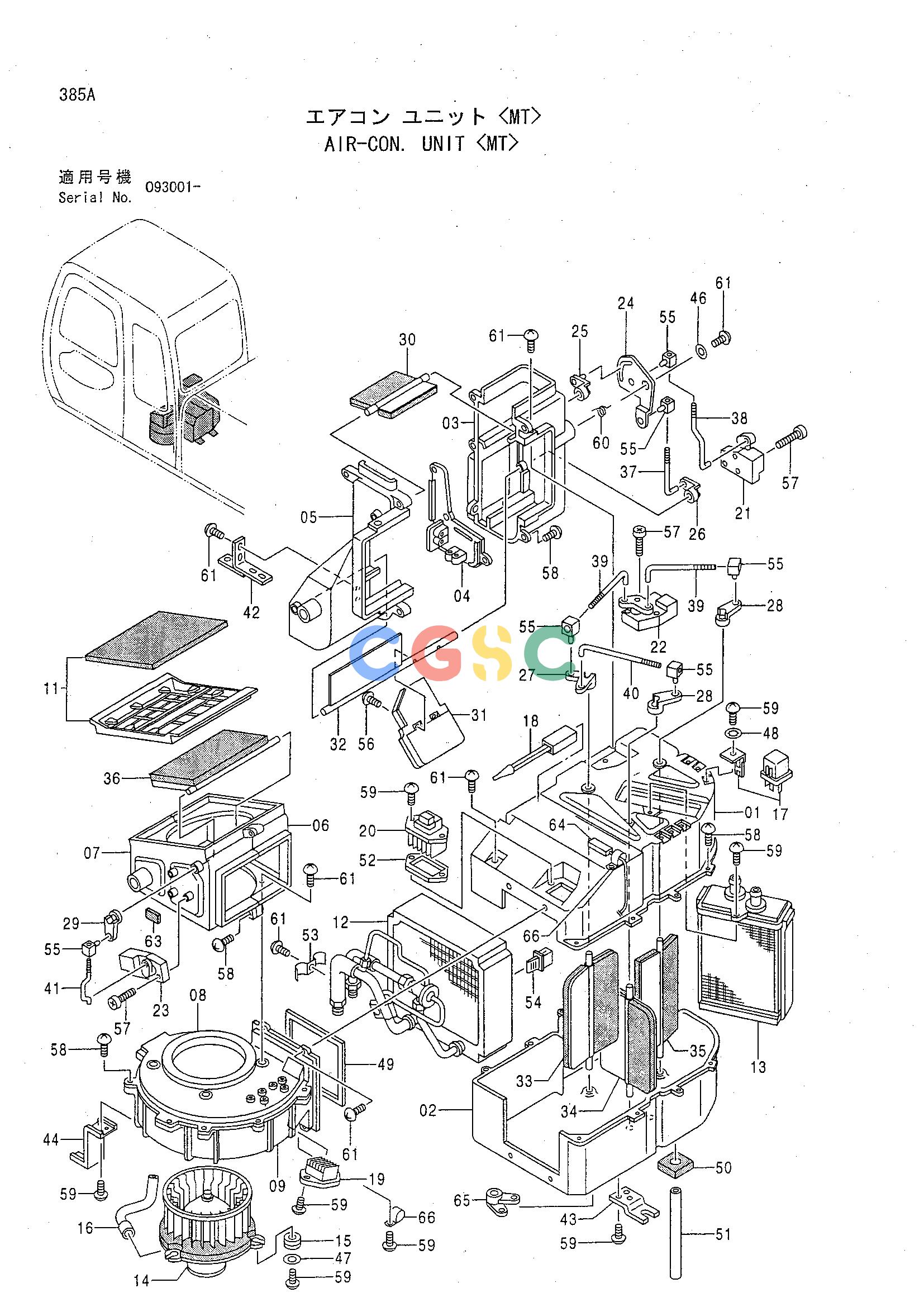

日立零件查询（CHR70）AIR-CON. UNIT <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
434 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4405131 | [1] | AIR-CON. UNIT | |
| 01. | 4370252 | [1] | CASE | |
| 02. | 4416979 | [1] | CASE | |
| 03. | 4370255 | [1] | CASE | |
| 04. | 4370256 | [1] | CASE | |
| 05. | 4370257 | [1] | CASE | |
| 06. | 4370258 | [1] | CASE | |
| 07. | 4416978 | [1] | CASE | |
| 08. | 4370260 | [1] | CASE | |
| 09. | 4370261 | [1] | CASE | |
| 11. | 4370263 | [1] | FILTER | |
| 12. | 4416977 | [1] | EVAPORATOR | <for details: see separate page> |
| 13. | 4416974 | [1] | HEATER | |
| 14. | 4370266 | [1] | BLOWER | |
| 15. | 4370267 | [3] | ISOLATOR | |
| 16. | 4370268 | [1] | HOSE;AIR | |
| 17. | 4370269 | [3] | RELAY | |
| 18. | 4370270 | [1] | THERMOSTAT | |
| 19. | 4370271 | [1] | RESISTOR | |
| 20. | 4370272 | [1] | TRANSISTOR | |
| 21. | 4370273 | [1] | MOTOR | |
| 22. | 4370274 | [1] | MOTOR | |
| 23. | 4370275 | [1] | MOTOR | |
| 24. | 4370276 | [1] | LEVER | |
| 25. | 4370277 | [1] | LEVER | |
| 26. | 4370278 | [1] | LEVER | |
| 27. | 4370279 | [1] | LEVER | |
| 28. | 4370280 | [2] | LEVER | |
| 29. | 4370281 | [1] | LEVER | |
| 30. | 4370282 | [1] | DOOR | |
| 31. | 4370283 | [1] | DOOR | |
| 32. | 4370284 | [1] | DOOR | |
| 33. | 4370285 | [1] | DOOR | |
| 34. | 4370286 | [1] | DOOR | |
| 35. | 4370287 | [1] | DOOR | |
| 36. | 4370288 | [1] | DOOR | |
| 37. | 4370289 | [1] | ROD | |
| 38. | 4370290 | [1] | ROD | |
| 39. | 4370291 | [2] | ROD | |
| 40. | 4370292 | [1] | ROD | |
| 41. | 4370293 | [1] | RID | |
| 42. | 4370294 | [1] | BRACKET | |
| 43. | 4370295 | [4] | BRACKET | |
| 44. | 4370296 | [2] | BRACKET | |
| 46. | 4370298 | [1] | WASHER | |
| 47. | 4370299 | [3] | WASHER | |
| 48. | 4370300 | [3] | WASHER;LOCK | |
| 49. | 4370301 | [1] | LINING | |
| 50. | 4370302 | [2] | LINING | |
| 51. | 4366644 | [2] | HOSE | |
| 52. | 4370303 | [1] | SEAL | |
| 53. | 4370304 | [2] | CLIP | |
| 54. | 4370305 | [1] | CLIP | |
| 55. | 4370306 | [6] | CLIP | |
| 56. | 4370307 | [2] | SCREW | |
| 57. | 4370308 | [9] | SCREW;TAPPING | |
| 58. | 4370309 | [25] | SCREW;TAPPING | |
| 59. | 4370310 | [30] | SCREW;TAPPING | |
| 60. | 4416973 | [1] | SPRING | |
| 61. | 4370297 | [19] | SCREW;TAPPING | |
| 63. | 4416972 | [1] | SENSOR ASS'Y | |
| 64. | 4416971 | [1] | SENSOR | |
| 65. | 4416970 | [1] | HOLDER | |
| 66. | 4416969 | [2] | CLIP | |
