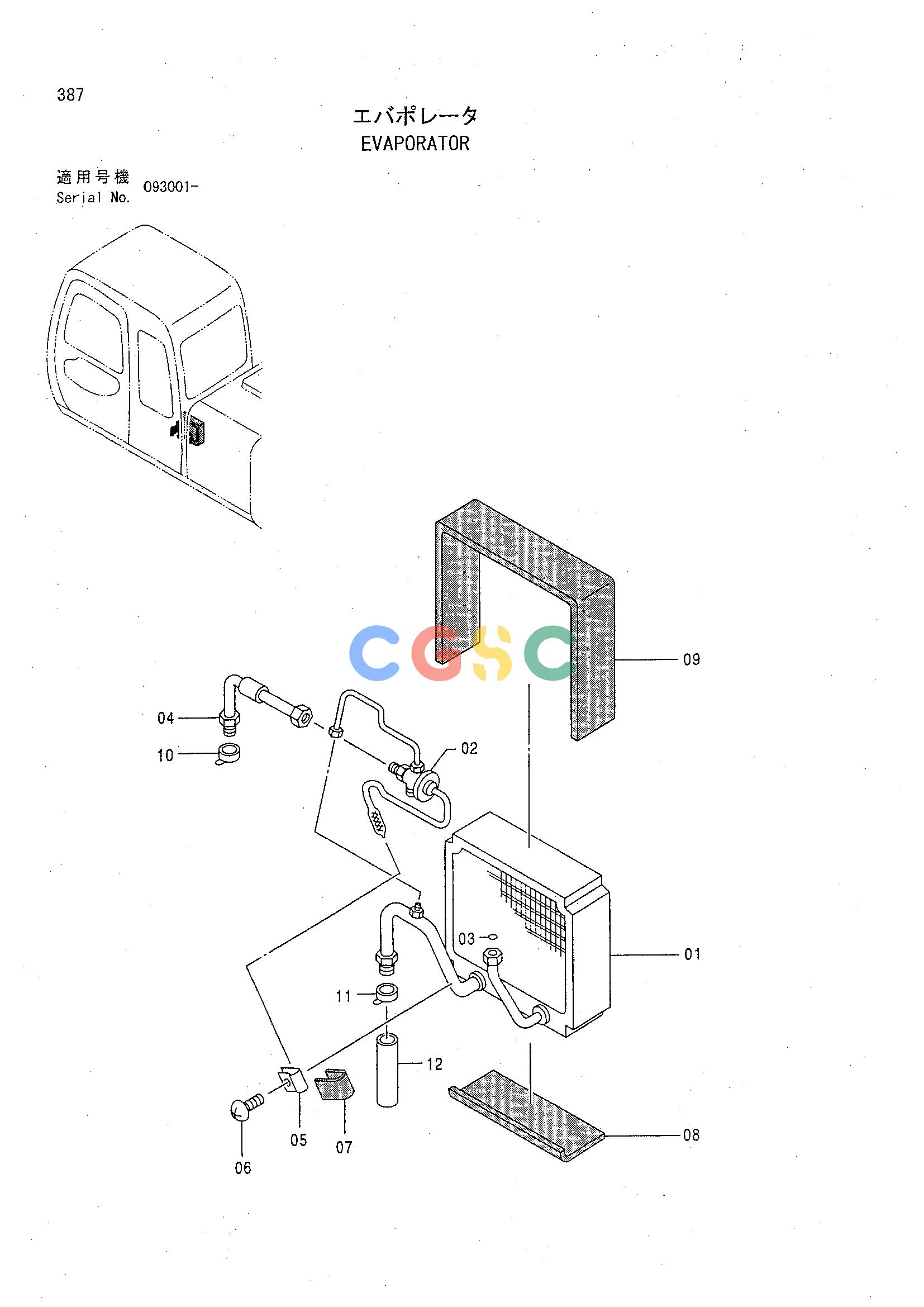

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 4416977 | [1] | EVAPORATOR ASS'Y | ||
| 01. | 4387288 | [1] | EVAPORATOR | |
| 02. | 4387289 | [1] | VALVE | |
| 03. | 4387290 | [1] | O-RING | |
| 04. | 4416976 | [1] | PIPE | |
| 05. | 4424979 | [1] | CLIP | |
| 06. | 4370310 | [1] | SCREW;TAPPING | |
| 07. | 4416975 | [1] | INSULATOR | |
| 08. | 4387295 | [1] | LINING | |
| 09. | 4387296 | [1] | SEAL | |
| 10. | 4387297 | [1] | CAP | |
| 11. | 4387298 | [1] | CAP | |
| 12. | 4387299 | [1] | INSULATOR |
