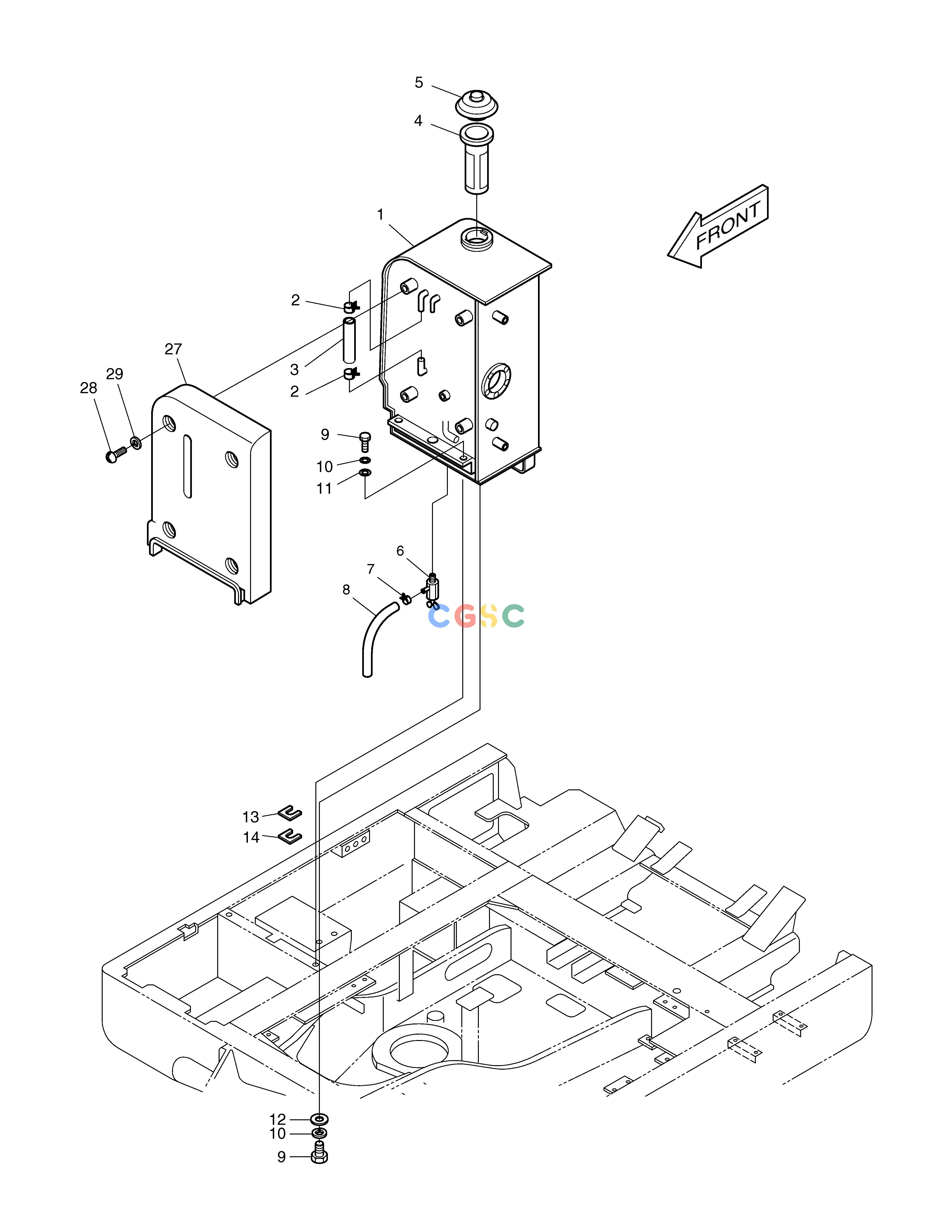

斗山零件查询FUEL TANK SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
220 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
470-00094
|
[-] |
FUEL TANK
|
|
| -. |
470-00524C
|
[-] |
FUEL TANK
|
|
| 1. |
2470-2044H
|
[1] |
TANK;FUEL
|
|
| 1. |
470-00523
|
[1] |
TANK;FUEL
|
|
| 1. |
470-00523B
|
[1] |
TANK;FUEL
|
470-00523C
|
| 1. |
470-00523C
|
[1] |
TANK;FUEL
|
|
| 10. |
S5102603
|
[3] |
. WASHER
|
|
| 11. |
S5010613
|
[2] |
WASHER
|
|
| 12. |
2114-1058D10
|
[1] |
WASHER
|
|
| 13. |
2114-1300
|
[2] |
SHIM
|
|
| 14. |
2114-1302
|
[2] |
SHIM
|
|
| 2. |
S8450006
|
[2] |
CLAMP
|
|
| 27. |
2470-2045C
|
[1] |
COVER;TANK
|
|
| 28. |
S3457101
|
[4] |
SCREW;MACHINE
|
|
| 29. |
S5010513
|
[4] |
WASHER
|
|
| 3. |
185-00390
|
[1] |
GAUGE;LEVEL
|
|
| 4. |
2471-9010A
|
[1] |
FILTER
|
|
| 5. |
2188-9007A
|
[1] |
CAP;TANK
|
|
| 6. |
2186-9001
|
[1] |
COCK
|
|
| 7. |
S8450006
|
[1] |
CLAMP
|
|
| 8. |
2184-1302
|
[1] |
HOSE;VINYL
|
|
| 9. |
S0512353
|
[3] |
BOLT M10X1.5X35
|
|
