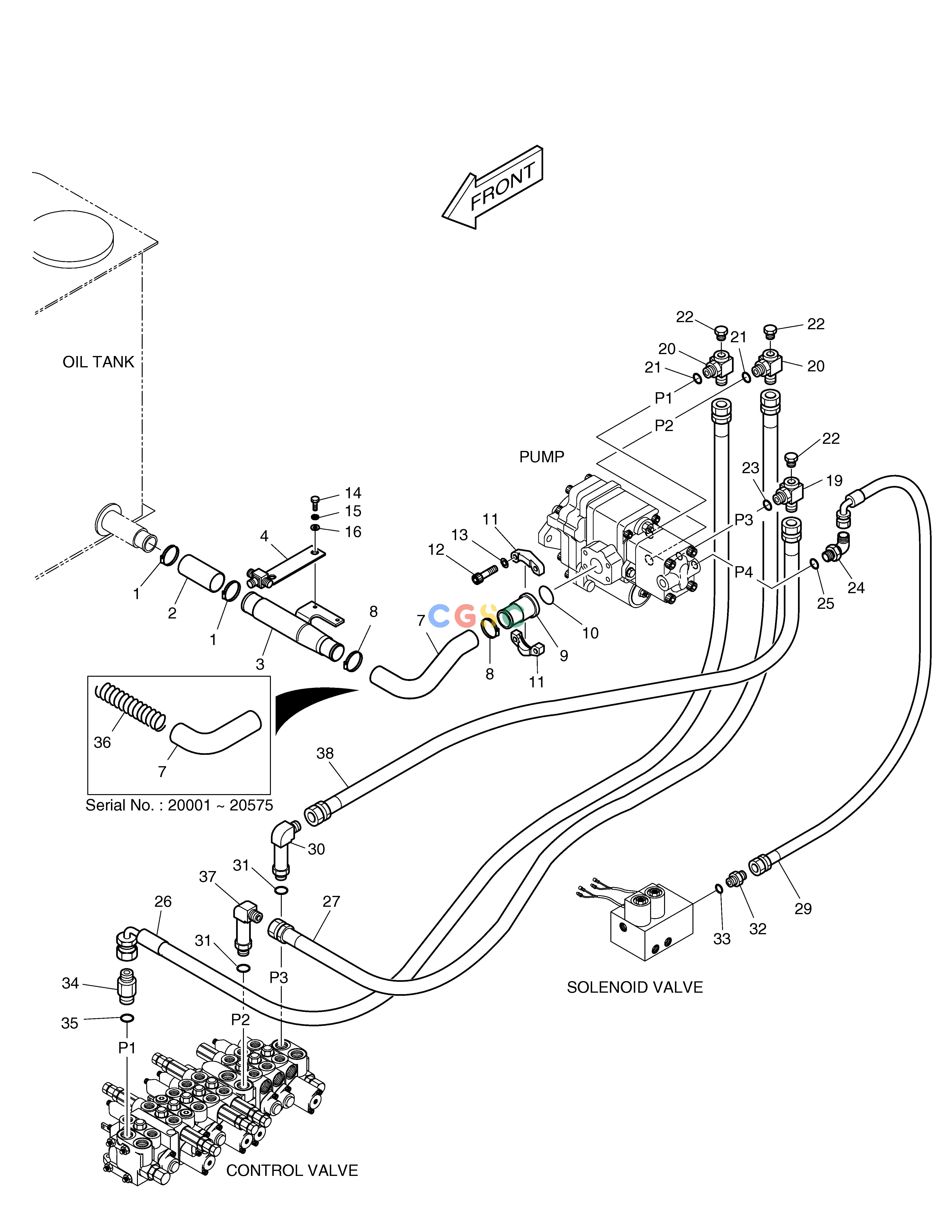

斗山零件查询LOW PRESSURE PIPING(1) SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
266 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00769
|
[-] |
LOW PIPING
|
|
| -. |
400-01608
|
[-] |
LOW PIPING
|
|
| 1. |
S8450044
|
[2] |
CLAMP;HOSE
|
|
| 10. |
2180-1026D23
|
[1] |
O-RING
|
|
| 11. |
4215-1003D4
|
[2] |
FLANGE
|
|
| 12. |
S2212366
|
[4] |
BOLT
|
|
| 13. |
S5110603
|
[4] |
WASHER
|
|
| 14. |
S0508853
|
[3] |
. BOLT
|
|
| 15. |
S5102503
|
[3] |
. WASHER
|
|
| 16. |
S5010513
|
[3] |
WASHER
|
|
| 19. |
DS2282007
|
[1] |
ELBOW
|
|
| 2. |
2185-1002D94
|
[1] |
HOSE
|
|
| 20. |
2181-2576D1
|
[2] |
TEE
|
|
| 21. |
S8000181
|
[2] |
O-RING
|
|
| 22. |
2181-2047
|
[3] |
PLUG
|
|
| 23. |
S8000141
|
[1] |
O-RING
|
|
| 24. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 25. |
S8000141
|
[2] |
O-RING
|
|
| 26. |
2184-1036D137
|
[1] |
HOSE PF1/2-1490L
|
|
| 27. |
2184-1026D361
|
[1] |
HOSE PF1/2-1200L
|
|
| 29. |
2184-1036D238
|
[1] |
HOSE PF3/8-500L
|
|
| 3. |
140-00962
|
[1] |
PIPE;SUCTION
|
|
| 30. |
2181-1702D53
|
[1] |
ELBOW
|
|
| 31. |
S8000181
|
[2] |
O-RING
|
|
| 32. |
2471-1147
|
[1] |
FILTER;ADAPTER
|
|
| 33. |
S8000111
|
[1] |
O-RING
|
|
| 34. |
2181-1126D83
|
[1] |
ADAPTER
|
|
| 35. |
S8000181
|
[1] |
O-RING
|
|
| 36. |
2129-1425A
|
[1] |
SPRING
|
|
| 37. |
2181-1702D15
|
[1] |
ELBOW
|
|
| 38. |
2184-1026D197
|
[1] |
HOSE PF1/2-900L
|
|
| 4. |
182-00101B
|
[1] |
BLOCK
|
182-00101C
|
| 4. |
182-00101C
|
[1] |
BLOCK
|
|
| 7. |
2185-1002D86
|
[1] |
HOSE 400L
|
|
| 7. |
185-00318
|
[1] |
HOSE
|
|
| 8. |
S8450044
|
[2] |
CLAMP;HOSE
|
|
| 9. |
2193-1326
|
[1] |
PIPE;SUCTION(A)
|
|
