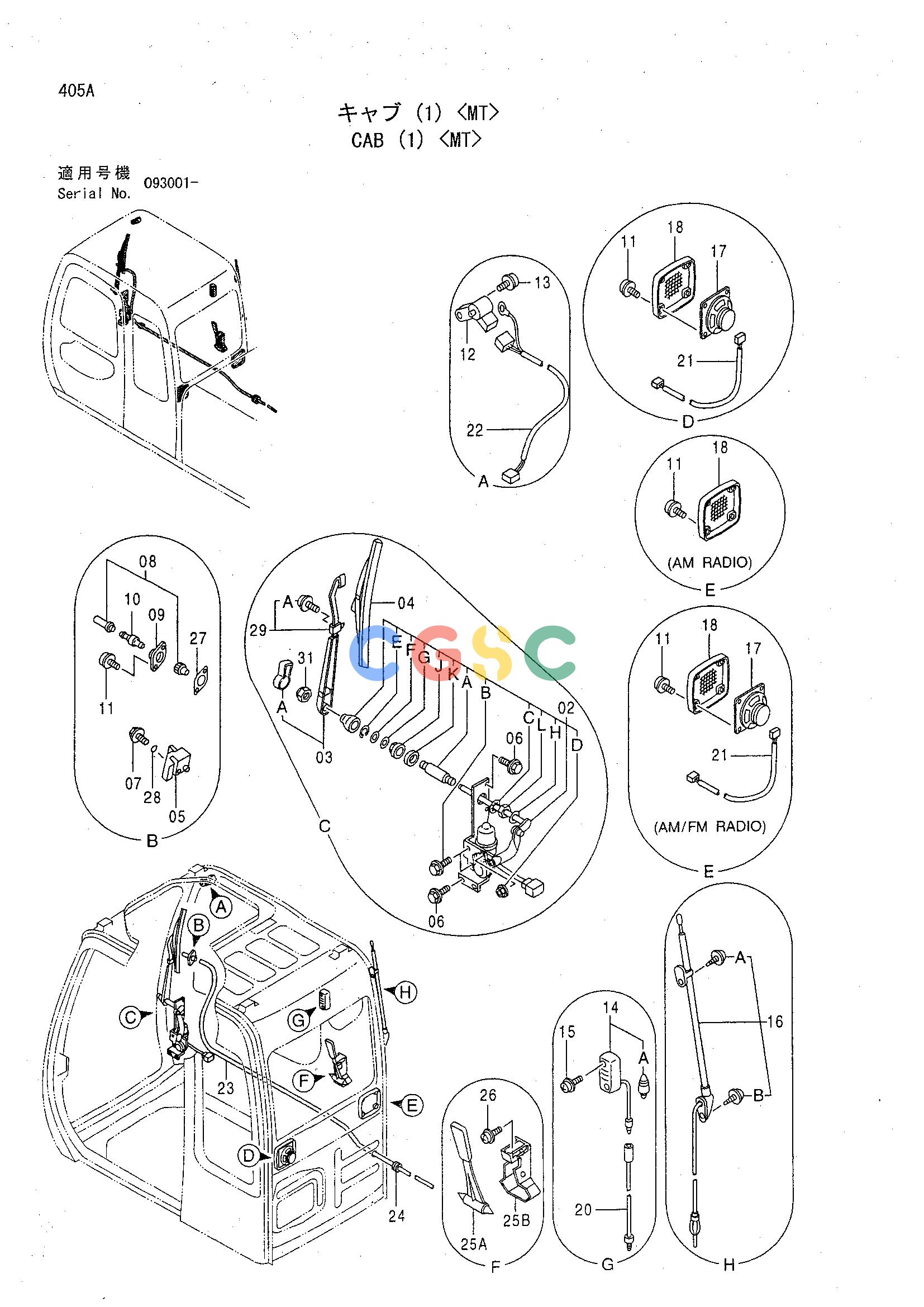

日立零件查询（CHR70）CAB (1) <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
644 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | 4369540 | [1] | WIPER-MOTOR | |
| 02A. | 4431848 | [1] | SPACER | |
| 02B. | 4431849 | [3] | BOLT;SEMS | |
| 02C. | 4431850 | [1] | WASHER;LOCK | |
| 02D. | 4431851 | [1] | NUT | |
| 02E. | 4431852 | [1] | RING;STOPPER | |
| 02F. | 4431853 | [1] | WASHER | |
| 02G. | 4431854 | [1] | WASHER | |
| 02H. | 4431855 | [1] | WASHER | |
| 02I. | 4431856 | [1] | CAP | |
| 02J. | 4431857 | [1] | WASHER | |
| 02K. | 4431858 | [1] | RUBBER | |
| 02L. | 4431859 | [1] | NUT | |
| 03. | 4369541 | [1] | WIPER-ARM | |
| 03A. | 4399597 | [1] | COVER | |
| 04. | 4369542 | [1] | WIPER-BLADE | |
| 05. | 4369543 | [1] | WIPER-STAND | |
| 06. | J020816 | [5] | BOLT;SEMS | |
| 06. | J260816 | [5] | BOLT;SEMS | TJ900816 |
| 06. | J260816 | [5] | BOLT;SEMS | TA590108 |
| 07. | 4372218 | [1] | BOLT;SEMS | |
| 08. | 4367485 | [1] | NOZZLE | |
| 09. | 4367486 | [1] | ADAPTER | |
| 10. | 4367481 | [1] | VALVE | |
| 11. | 4372608 | [10] | SCREW;SEMS | |
| 12. | 4387837 | [1] | SWITCH;LIMIT | |
| 13. | J460510 | [1] | SCREW;SEMS | |
| 14. | 4187082 | [1] | LAMP;ROOM | |
| 14A. | 4187083 | [1] | BULB | |
| 15. | J460514 | [2] | SCREW;SEMS | |
| 16. | 4280527 | [1] | ANTENNA | |
| 16A. | 4210412 | [1] | SCREW | |
| 16B. | 4210413 | [1] | SCREW | |
| 17. | 4361302 | [1] | SPEAKER (AM RADIO) | |
| 17. | 4361302 | [2] | SPEAKER (AM/FM RADIO) | |
| 18. | 4364504 | [2] | GRILLE | |
| 20. | 4260369 | [1] | HARNESS;WIRE | |
| 21. | 4369547 | [1] | HARNESS;WIRE (AM RADIO) | |
| 21. | 4369547 | [2] | HARNESS;WIRE | (AM/FM RADIO) |
| 22. | 4402476 | [1] | HARNESS;WIRE | |
| 23. | 4369549 | [1] | HOSE | |
| 24. | 4287903 | [2] | BUSHING;RUBBER | |
| 25A. | 4362700 | [1] | HAMMER | |
| 25B. | 2038764 | [1] | BRACKET | |
| 26. | J460516 | [2] | SCREW;SEMS | |
| 27. | 4369544 | [1] | PACKING | |
| 28. | 4092111 | [1] | O-RING | |
| 29. | 4370903 | [1] | ARM | |
| 29A. | 4382863 | [2] | SCREW;SEMS | |
| 31. | M500807 | [1] | NUT | |
