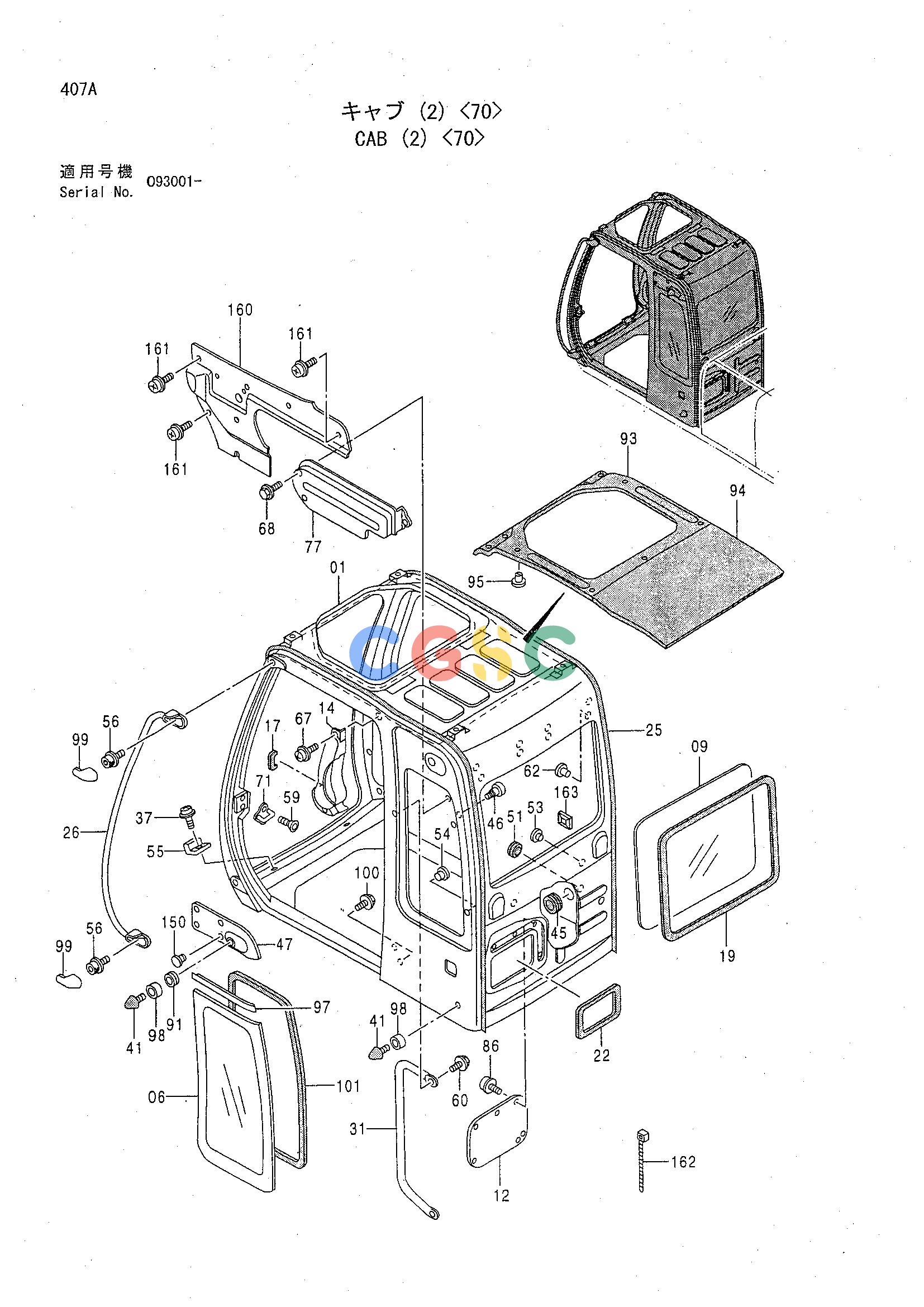

日立零件查询（CHR70）CAB (2) <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
699 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4388120 | [1] | CAB | |
| 06. | 4369556 | [1] | GLASS | |
| 09. | 4369555 | [1] | GLASS | |
| 12. | 4369570 | [1] | COVER | |
| 14. | 4369565 | [1] | COVER | |
| 17. | 4369566 | [1] | RUBBER | |
| 19. | 4369554 | [1] | RUBBER | |
| 22. | 4369585 | [1] | RUBBER | |
| 25. | 4369574 | [1] | RUBBER | |
| 26. | 4369571 | [1] | HANDRAIL | |
| 31. | 4369625 | [1] | HANDRAIL | |
| 37. | J680614 | [2] | SCREW;SEMS | |
| 41. | 4204586 | [2] | STOPPER | |
| 45. | 4369568 | [1] | BUSHING;RUBBER | |
| 46. | 4295573 | [1] | HOOK | |
| 47. | 4369557 | [1] | PANEL | |
| 51. | 4369569 | [1] | BUSHING;RUBBER | |
| 53. | 4372087 | [2] | STOPPER;RUBBER | |
| 54. | 4369626 | [1] | BUSHING;RUBBER | |
| 55. | 4369675 | [2] | RUBBER | |
| 56. | 4369573 | [2] | BOLT;SOCKET | |
| 59. | 4320163 | [2] | SCREW | |
| 60. | 4372219 | [2] | BOLT;SEMS | |
| 62. | 4372088 | [8] | CLIP | |
| 67. | J680614 | [3] | SCREW;SEMS | |
| 68. | 4372222 | [3] | BOLT;SEMS | |
| 71. | 4369627 | [1] | STRIKER | |
| 77. | 4369567 | [1] | COVER | |
| 86. | J680620 | [11] | SCREW;SEMS | |
| 91. | 4372089 | [1] | BUSHING;RUBBER | |
| 93. | 4369552 | [1] | SHEET | |
| 94. | 4369551 | [1] | SHEET | |
| 95. | 4369614 | [12] | CLIP | |
| 97. | 4369559 | [1] | RUBBER | |
| 98. | 4369561 | [2] | SPACER | |
| 99. | 4369572 | [2] | COVER | |
| 100. | 4320150 | [1] | BOLT | |
| 101. | 4400079 | [1] | SEAL;RUBBER | |
| 150. | 4369659 | [4] | CLIP | |
| 160. | 4381718 | [1] | COVER | |
| 161. | J460620 | [3] | SCREW;SEMS | |
| 162. | 4289708 | [1] | CLIP | |
| 163. | 4289709 | [6] | SUPPORT | |
