斗山零件查询MAIN PIPING SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
387 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

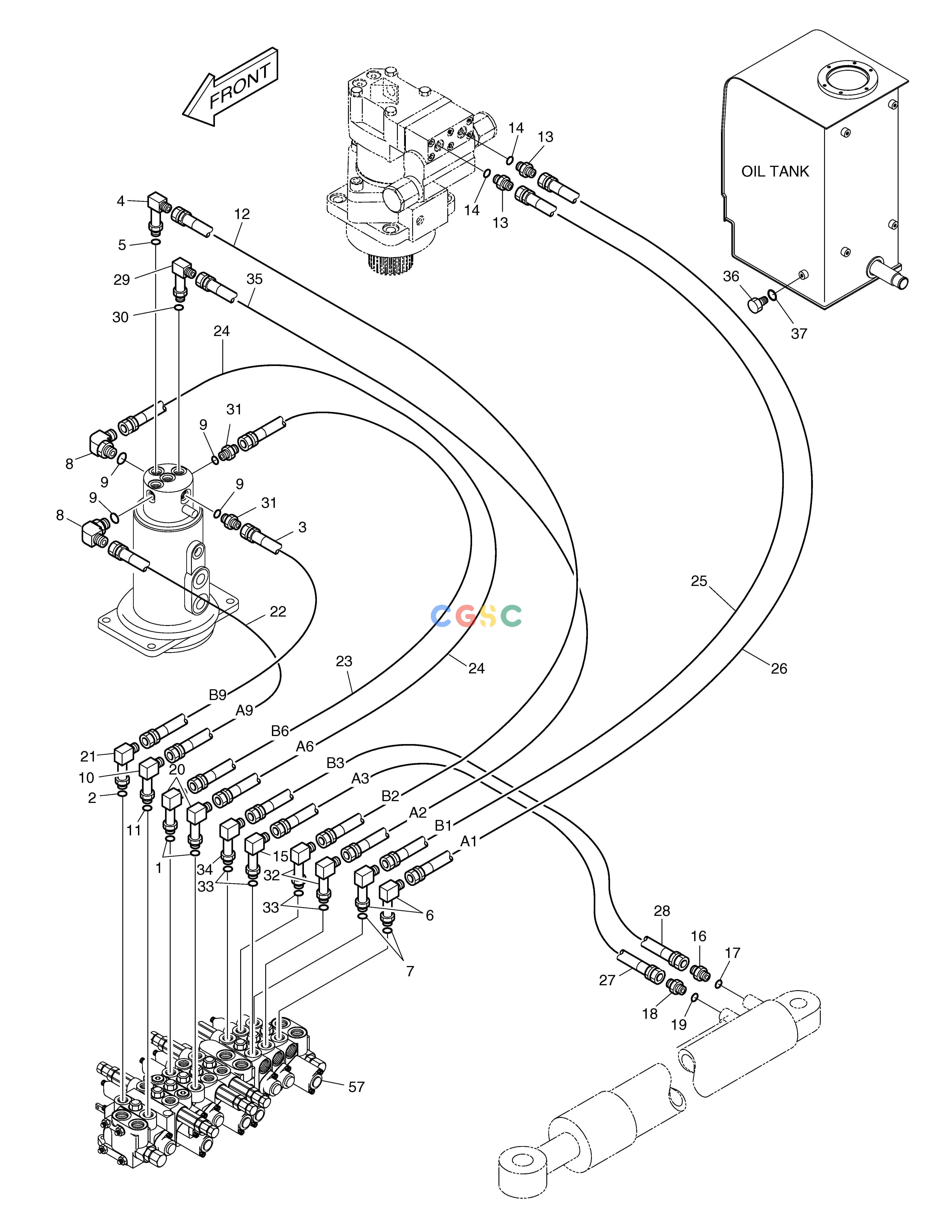

2400-7090
|
[-] |
MAIN PIPING
|
|
| 1. |
S8000141
|
[2] |
O-RING
|
|
| 10. |
2181-1702D13
|
[1] |
ELBOW
|
|
| 11. |
S8000141
|
[1] |
O-RING
|
|
| 12. |
2184-1026D3
|
[1] |
HOSE D/Z DOWN PF1/4X1300L
|
|
| 13. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 14. |
S8000141
|
[2] |
O-RING
|
|
| 15. |
2181-1702D58
|
[1] |
ELBOW PFO3/8-PF1/4
|
|
| 16. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 17. |
S8000111
|
[1] |
O-RING
|
|
| 18. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 19. |
S8000111
|
[1] |
O-RING
|
|
| 2. |
S8000141
|
[1] |
O-RING
|
|
| 20. |
2181-1702D37
|
[2] |
ELBOW PF3/8-1/2
|
|
| 21. |
2181-1702D36
|
[1] |
ELBOW
|
|
| 21. |
2181-1702D41
|
[1] |
ELBOW
|
|
| 22. |
2184-1026D292
|
[1] |
HOSE PF1/2-1500L
|
|
| 23. |
2184-1026D9
|
[1] |
HOSE PF1/2-1700L
|
|
| 24. |
2184-1026D9
|
[1] |
HOSE PF1/2-1700L
|
|
| 25. |
2184-1026D336
|
[1] |
HOSE PF3/8-530L
|
|
| 26. |
2184-1026D365
|
[1] |
HOSE PF3/8-870L
|
|
| 27. |
2184-1026D346
|
[1] |
HOSE D/Z UP PF1/4X1200L
|
|
| 28. |
2184-1026D43
|
[1] |
HOSE PF1/4-900L
|
|
| 29. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 3. |
2184-1026D292
|
[1] |
HOSE PF1/2-1500L
|
|
| 30. |
S8000111
|
[1] |
O-RING
|
|
| 31. |
2181-1126D6
|
[2] |
ADAPTER
|
|
| 32. |
2181-1702D52
|
[2] |
ELBOW PF3/8-PF1/4
|
|
| 33. |
S8000141
|
[4] |
O-RING
|
|
| 34. |
2181-1702D58
|
[1] |
ELBOW PFO3/8-PF1/4
|
|
| 35. |
2184-1026D3
|
[1] |
HOSE D/Z DOWN PF1/4X1300L
|
|
| 36. |
2181-1950D3
|
[1] |
PLUG
|
|
| 37. |
S8000181
|
[1] |
O-RING
|
|
| 4. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 5. |
S8000111
|
[1] |
O-RING
|
|
| 57. |
426-00209
|
[1] |
CONTROL VALVE ASS'Y
|
426-00209A
|
| 57. |
426-00209A
|
[1] |
CONTROL VALVE
|
426-00209B
|
| 57. |
426-00209B
|
[1] |
CONTROL VALVE
|
|
| 6. |
2181-1702D51
|
[2] |
ELBOW
|
|
| 7. |
S8000141
|
[2] |
O-RING
|
|
| 8. |
2181-1702D50
|
[2] |
ELBOW
|
|
| 9. |
S8000181
|
[4] |
O-RING
|
|
